Using your Avaya 1120E IP Deskphone

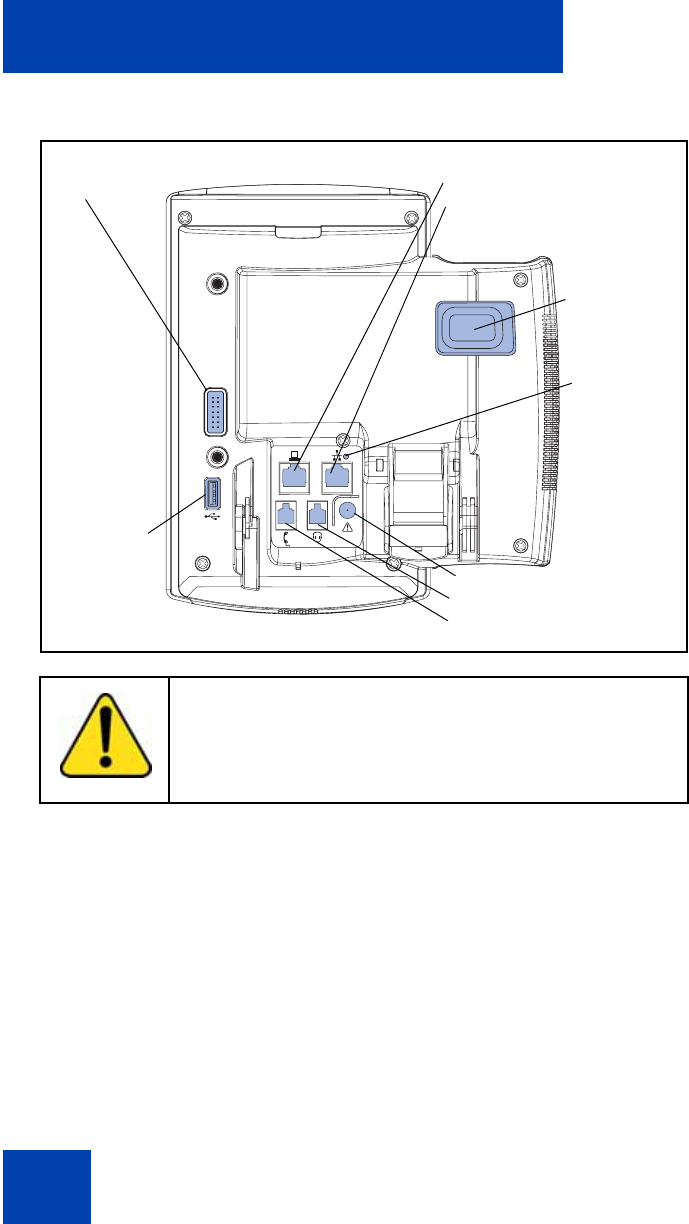

Figure 9: IP Deskphone connections

Install your IP Deskphone by completing the following procedures in the

order listed:

• “Removing the stand cover” on page 53

• “Connecting the AC power adapter (optional)” on page 54

• “Connecting the handset” on page 55

• “Connecting the headset (optional)” on page 56

• “Connecting the LAN ethernet cable” on page 57

• “Installing additional cables” on page 58

WARNING Ensure that the protective rubber cap on the

Expansion Module port is in place when the port is not in use.

Connection of anything other than the proper Expansion

Module connector to this port can cause damage to the IP

Deskphone.

Accessory Expansion

Module port

PC Ethernet port

LAN Ethernet port

Tilt Lever

Link lamp

AC Adapter jack

Headset jack

Handset jack

USB

Connector
