Method A:
1. Press the wall-mount lever, and pull the IP Deskphone away from the
stand, as shown in Figure 13 on page 59.
2. Use the stand cover (the part you removed in “Removing the stand
cover” on page 53), to mark the wall-mount holes by pressing the
bottom of the stand cover firmly against the wall in the location where
you wish to install the IP Deskphone. Four small pins on the bottom of
the stand cover make marks on the wall.
3. Use the marks as a guideline for installing the wall-mount screws (not
provided). Install the screws so that they protrude 3 millimeters (mm)
(1/8 inch) from the wall.
4. Install the IP Deskphone stand mounting holes over the screw heads
as indicated in Figure 12 on page 58 (Method A). You need to
remove the IP Deskphone from the wall to adjust the lower screws.
5. When the lower screws are snug, install the IP Deskphone on the
mounting screws, and then tighten the top screws.

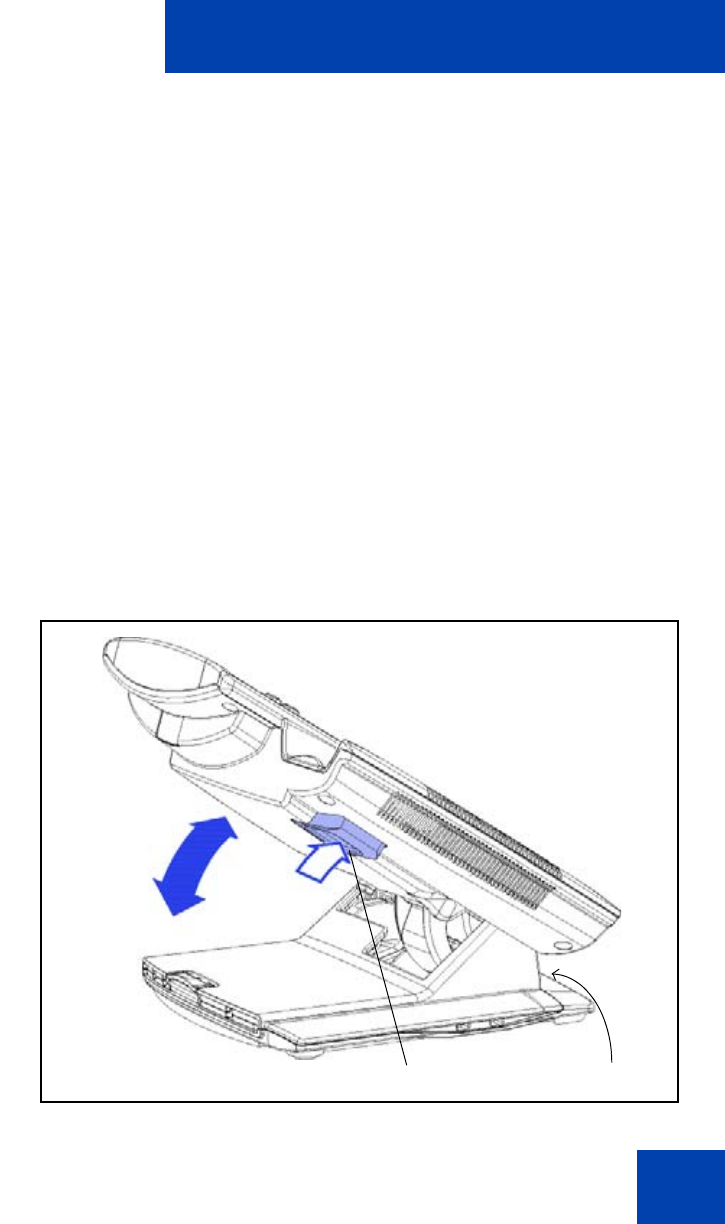

Figure 13: Rotate the IP Deskphone into the wall mount
position
Tilt lever Wall-mount lever
