Avaya 7316E button mapping
The Avaya 7316E button number assignment depends on the software version of the Norstar ICS
or Business Communications Manager system.
The
7316E button number assignment is important when:
• Programming User Preferences in Norstar Configuration.
• Programming the Business Communications Manager from your web browser.
The 7316E button number assignment type is shown below based on system/software
versions.
Norstar programming
A programming overlay is provided in your
documentation kit. Place it on the
7316E
telephone to label the four buttons used
for Norstar programming.
Note: The four buttons used for Norstar
programming will appear on the top or
middle sections of the programming overlay
depending on the 7316E button number
assignment.
System Software version Button assignment type
Norstar ICS 6.1 or higher Standard
Norstar ICS 6.0 or lower Legacy
Business Communications Manager 3.5 or higher Standard
Business Communications Manager 3.0 or lower Legacy
Standard button assignment Legacy button assignment
B01
B02
B03
B04
B05
B06
B07
B08
B13
B14
B15
B16
B12
B09
B10
B11
B20
B21
B22
B23
B24
B17
B18
B19
B23
B25
B27
B29
B31
B33
B24
B26
B02
B03
B04
B05
B01
B11
B13
B15
B06
B07
B08
B09
B10
B17
B19
B21
Standard
Legacy
button assignment
button assignment

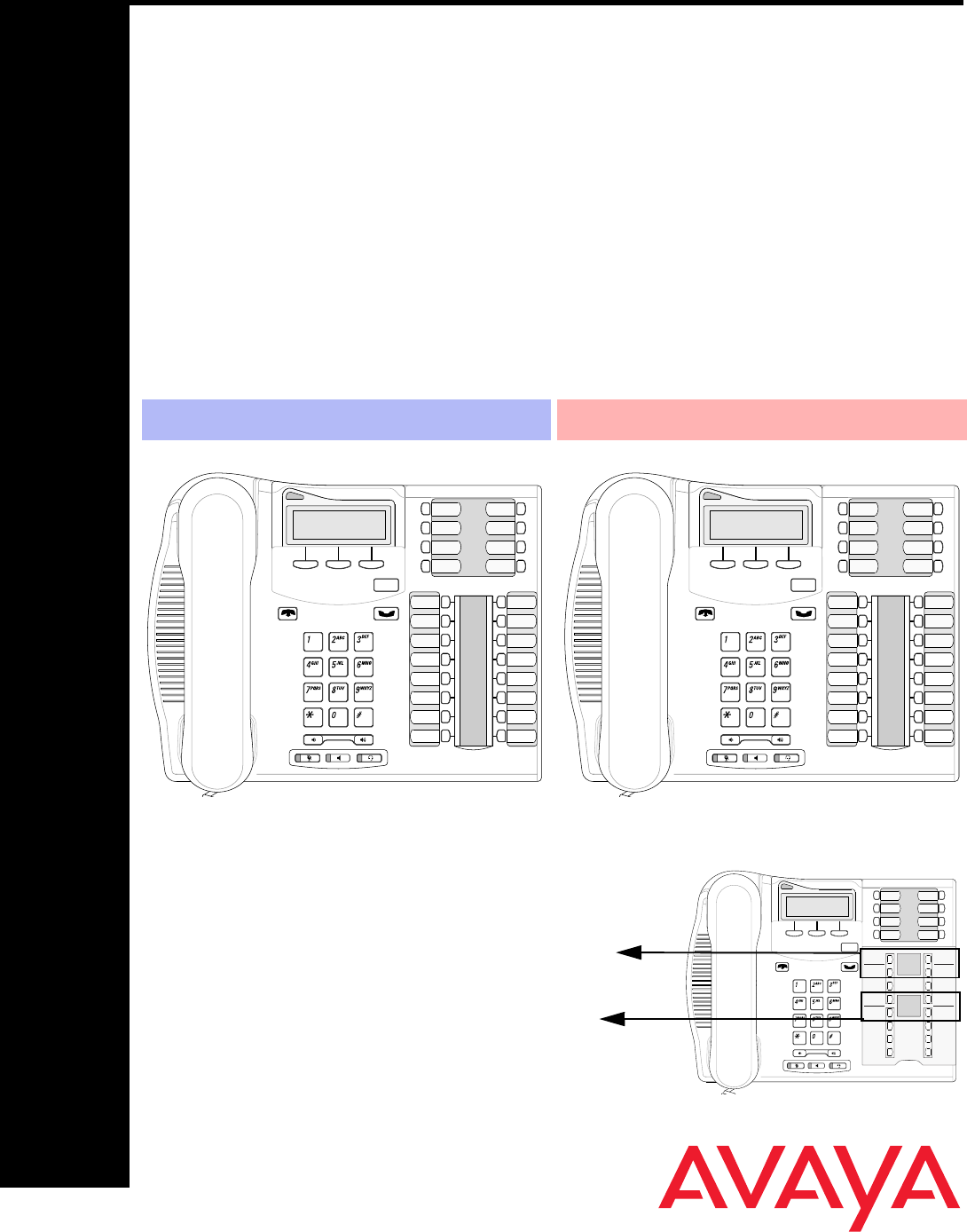

Avaya 7316E telephone with programming overlay
