Isolating Problems Using Loopback Data Tests
D-8
Remote Loopback Test

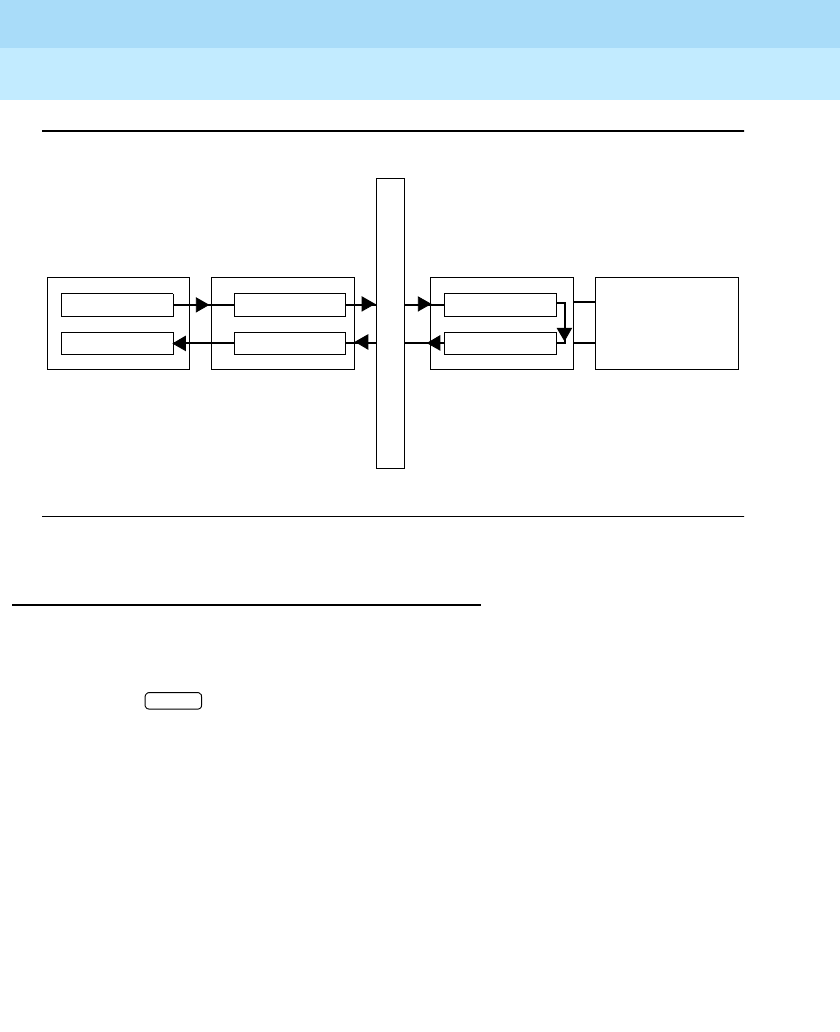

Figure D-4. Remote Loopback Test
Performing a Remote Loopback Test
To initiate the test, set up a data call and escape to command mode (+++). Then
type:
AT&T6
The system responds with:
OK
This test will continue for the period of time indicated in S-register S18.
To terminate the test before the test timer expires, type:
+++
The system responds with:
OK
Remote DTE
8400B Plus
Remote
Data Endpoint
Local DTE
Transmitter
Receiver
Characters
Received
Characters
Sent
S
W
I
T
C
H
Transmitter
Receiver
ENTER
