Isolating Problems Using Loopback Data Tests
D-15
Loop-Around Data Test Arrangement
Also set the correct installation options by typing the appropriate command:
■ If the 8400B Plus Data Module is the US Configuration, type:
ATS24=1
■ If the 8400B Plus Data Module is the International Configuration, type:
ATS24=3
You should now disconnect the terminal from the 8400B Plus Data Module. The
8400B Plus Data Module will retain the option settings during power removal.
A loopback plug must now be connected to the EIA Connector Interface of the
8400B Plus Data Module. A loopback plug connects pin number 2 to pin
number 3 on the 8400B Plus Data Module’s EIA Interface using a modified 9-pin
connector. The modified connector is shown in Figure D-9
.

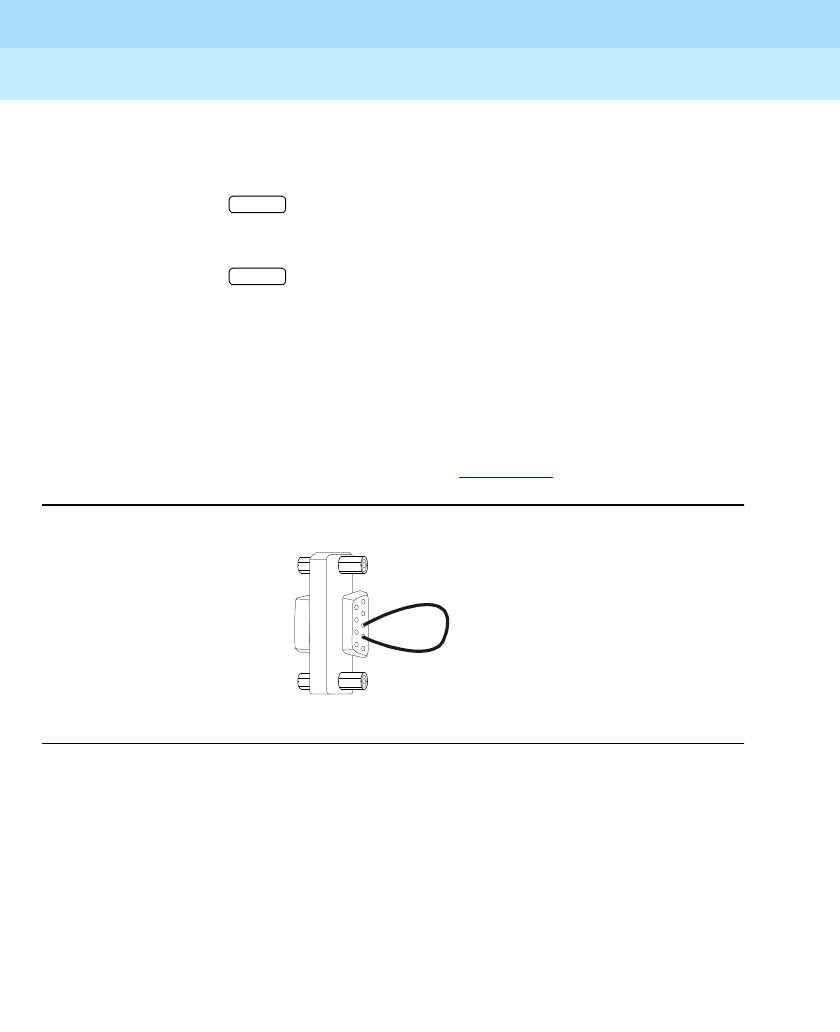

Figure D-9. 9-Pin Connector Wired as a Loopback Plug
ENTER
ENTER
