eDMSAPI Inbound 111

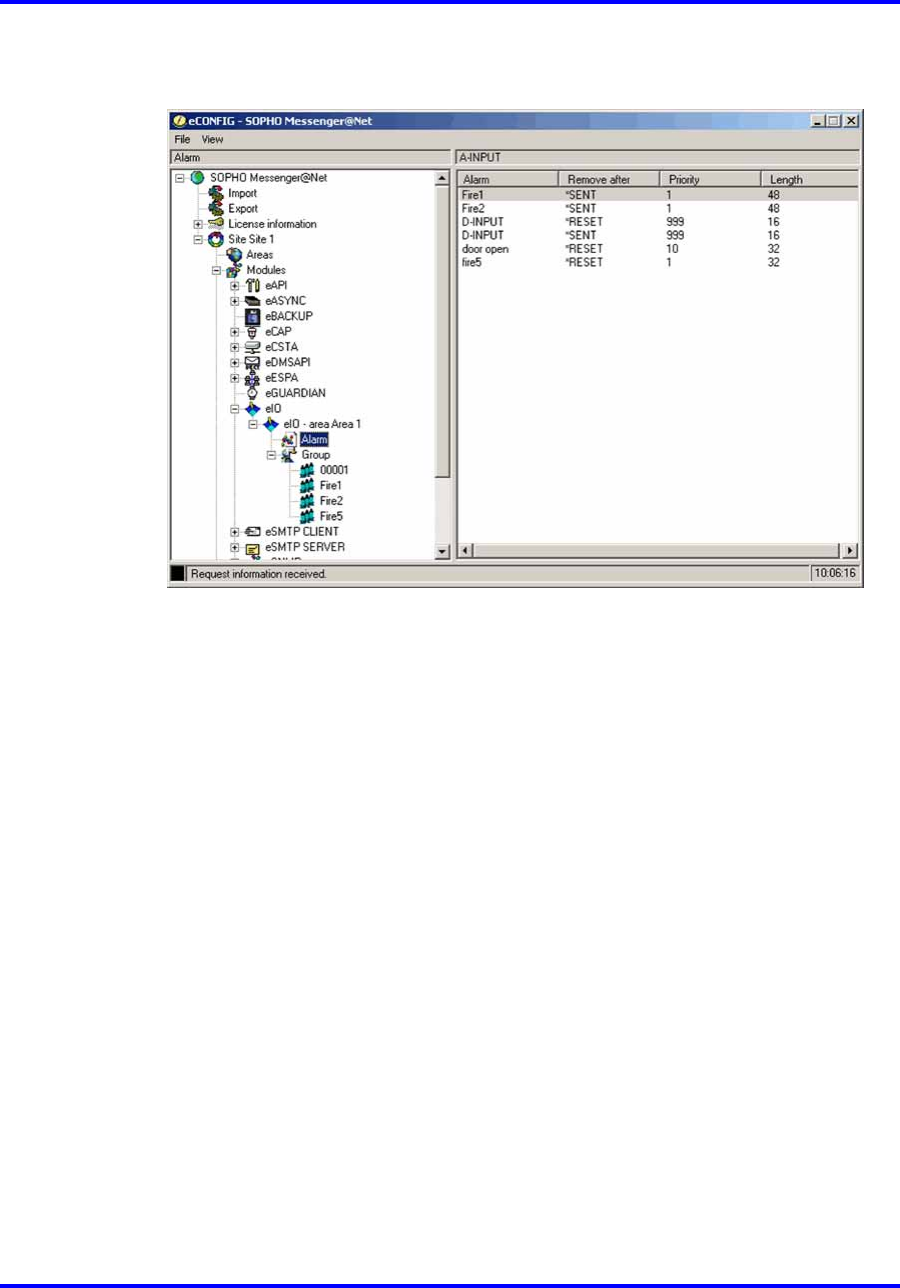

Figure 27

Alarm identifier

The Alarm Identifier, illustrated in Figure 27 "Alarm identifier" (page

111), is used as an Alarm Description, and contains properties for

the alarm (for example, ringing time, repeat intervals, scroll intervals

if messages are chopped). These properties determine, in part, how

the alarm is displayed. Other properties include: priority of the alarm,

message length, silence interval, and so on.

• Set/Reset

Set/Reset determines if the alarm is activated or deactivated. See

“SET/RESET structure” (page 112).

• Remove After

Remove After specifies what is to be done with the alarm after the

eKERNEL has received the alarm. Valid settings are as follows:

Remove after sent, Remove after Reset or Remove after Calculate.

This is discussed in “SET/RESET structure” (page 112).

• Message

The message coming in through an IO Module is passed directly to the

device. The way the message is displayed depends on the properties

of that specific device, and the setting in the eKERNEL_ALARM table

for that specific alarm. The message coming in the Input Module is

transferred through the Input Module to the eKERNEL, and then to

the Output Device. However, after the Input Module does not receive

a message from outside, you must specify a message in the Input

Module.
