Table 13
Overview of supported IO modules
Module Type Description Additional info
AI-100 Analogue input
Module
8 Analogue inputs, each can be set to one of the
following ranges: 30V, 15V, 5V, 1V, 0-30V, 0-15V,
0-5V, 0-1V, 20mA, 0-20mA, 4-20mA.
DI-300 Digital Input 8 discrete input channels. These inputs are sinking
inputs for 24VDC.
DI-301 Digital Input 16 discrete input channels. These inputs are sinking
inputs for 24VDC.
DI-330 Digital Input 8 discrete input channels. Universal inputs work
with any voltage from 5V TTL up to 250VDC/VAC.
Compatible with sourcing, sinking, or power sensing
applications.
DO-400 Digital output 8 discrete output channels. Max. 2A for each output,
max 8A for each module. Maximum voltage 30VDC.
DO-401 Digital output 16 discrete output channels. Max. 2A for each output,
max 8A for each module. Maximum voltage 30VDC.
For each I/O module, one Terminal Base is required - TB-1

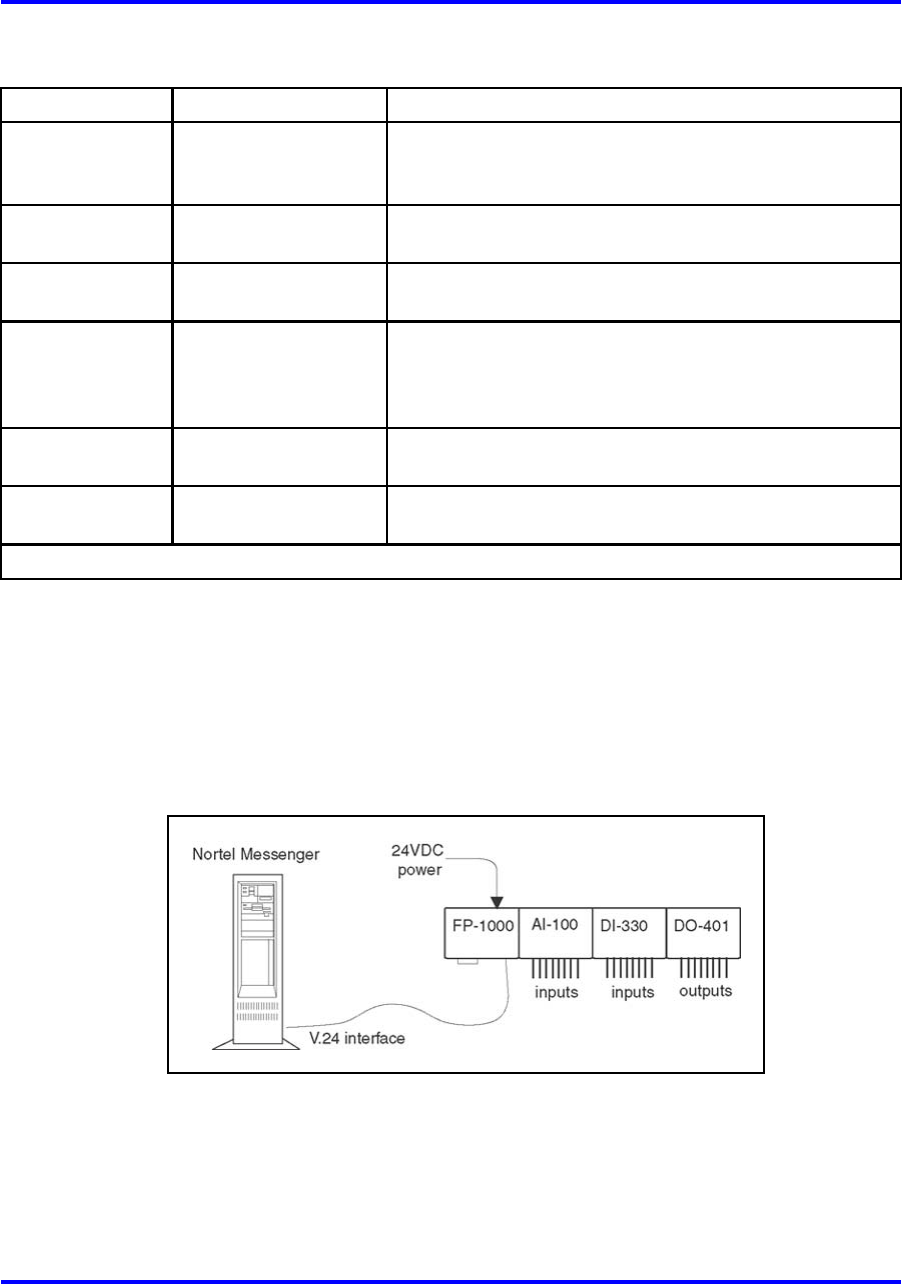

Figure 35 "National Instruments rail connected to DECT Messenger"
(page 122) shows how one rail with National Instruments I/O modules is
connected to DECT Messenger. On this rail there can be various types of
I/O Modules. The maximum number of modules for each rail is eight. The
modules shown in Figure 35 "National Instruments rail connected to DECT
Messenger" (page 122) are examples only.
Figure 35
National Instruments rail connected to DECT Messenger
Note: The maximum number of contacts for each eIO Module in DECT
Messenger is 128.
