Module Window

Each module runs as an application in the Windows environment, and

can be displayed as an open window, or minimized on the Windows Task

bar. The module window provides online information about settings,

commands/messages/communication. This information is very useful for

debugging. The eIO module is shown for the purposes of demonstration;

other modules have a similar interface, however, the information displayed

is unique in each application.

If the eIO Module window is minimized, maximize it. Four tabs are visible

in the window, as follows:

•

Logging Tab

In the logging tab, the online log information is provided.

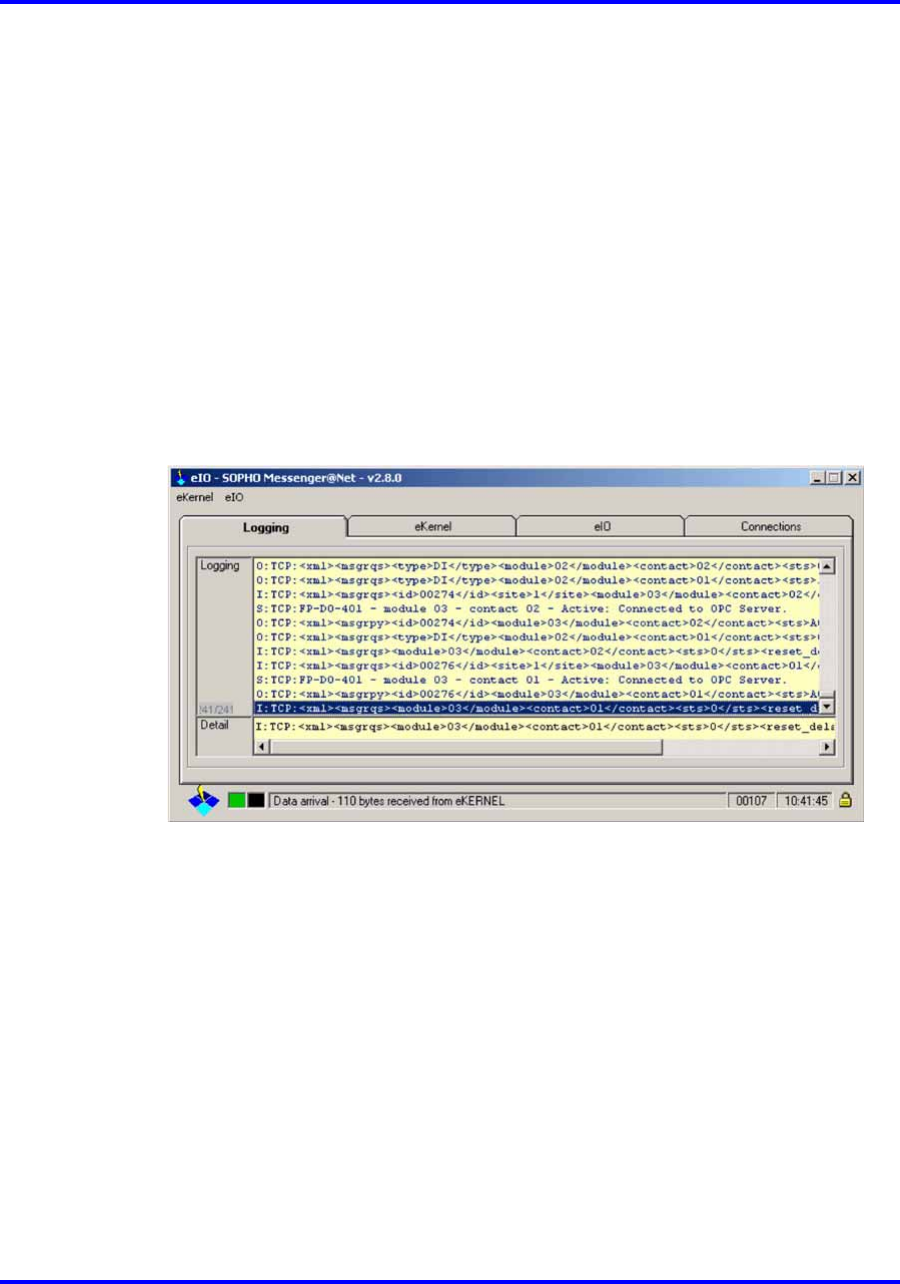

Figure 54

Logging Tab

There are two logging panes, the upper, called Logging, and the

lower, called Detail. In the Logging pane, the XML messages

are shown. These are the same as the messages in the log files.

However, the lines do not fit in the window. If you need detailed

information (the whole line) you can left-lick the line to display it in

the Detail pane. There you can scroll from left to right, to see all the

information in the line.

• eKERNEL Tab

The eKERNEL tab shows the communication between the module and

the eKERNEL.
