Axium Music Centre Program
AMC is an amplifier setup program, full control and tracking of the Axium amplifier zone is provided.
The program runs on PC’s running Win XP, Win 7 or VISTA operating systems, and communicates via
RS232, USB or Ethernet.

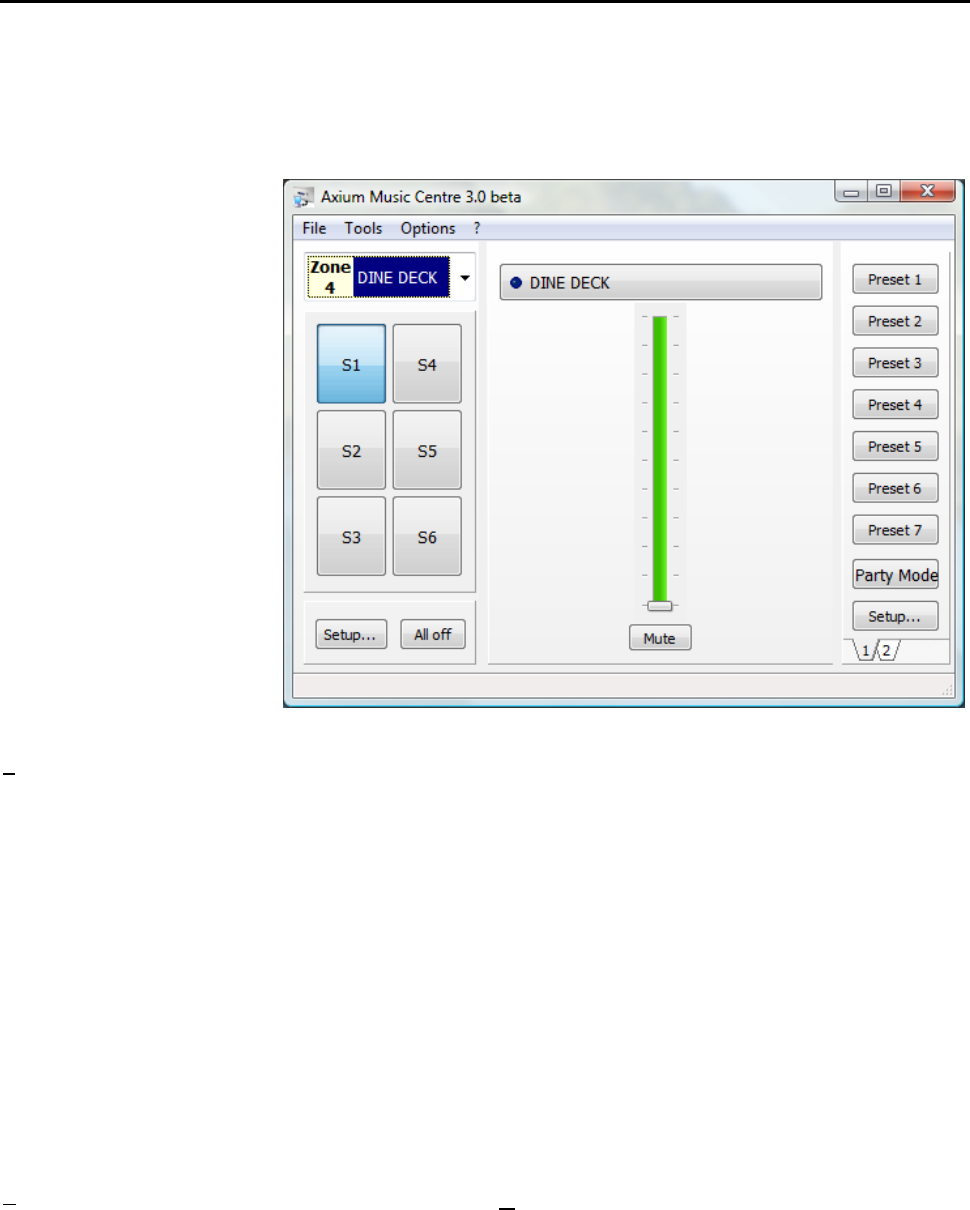

AMC’s main window provides user functionality for real-time access and control of any amplifier zone.
When an Axium amplifier is
first attached to a PC running
AMC the amplifiers clock is
automatically set to the PC’s
current time, date and
location.
The Zone and Source
buttons may be named by
using a right mouse click
over the button.
A naming window opens
where the name is entered.
The name is saved in the
connected 400DA.
F
ile menu contains the commands:
• New window: Opens another AMC main
window. This is useful for displaying and
controlling multiple zones simultaneously
17
• Keypad window:
A keypad window is displayed
where a user can cause the selected keypad on the
network to emit its stored IR strings.
• Download and save configuration:
A configuration file contains all information in an
installation stack, i.e. Zone allocation, Zone &
Source naming, bass, treble, loudness, max
volume limits, preset programming etc.
• Upload a saved configuration:
• Upload Audio file: Direct AMC to the file
location of suitable “wav” files. Click Open &
upload the file(s) to the amplifier.
• Exit: Shuts down AMC.
T
ools menu contains the commands:
• Zone Assignment: Opens a window where
the 400DA Zones can assigned to between
0 & 95. Zones on one unit must be different.
• IR Routing Tables: Opens a window with a
selection table where the IR output ports can
be mapped to specific Controller ports.
• Network Settings: Opens a window where a
Network name can edited, and the IP address
can be set to either DHCP or static input. A
selection is provided for synchronizing with an
internet time server.
• Media Servers: not implemented on 400DA.
• Party Mode Setup: not implemented on
400DA
• Event Viewer: Open a window which displays
a log of significant events in the amplifiers
history.
• Advanced: Provides selections for Firmware
update and a Real time log.
O
ptions Menu contains the port assignments,
where the program lists the detected ports.
Select USB, Ethernet or a suitable COM port for
RS232. Note: Firmware update can only be
performed using the USB connection.
