ADA HANDRAIL INSTALLATION GUIDELINES for
AZEK Premier AZEK Trademark AZEK Reserve
Page 1
© 2013 AZEK Building Products. All rights reserved
AZEK Premier
AZEK Trademark
ADA COMPLIANT RAILING SYSTEM for
© 2012 All rights reserved. AZEK Building Products, Inc.
www.AZEK.com

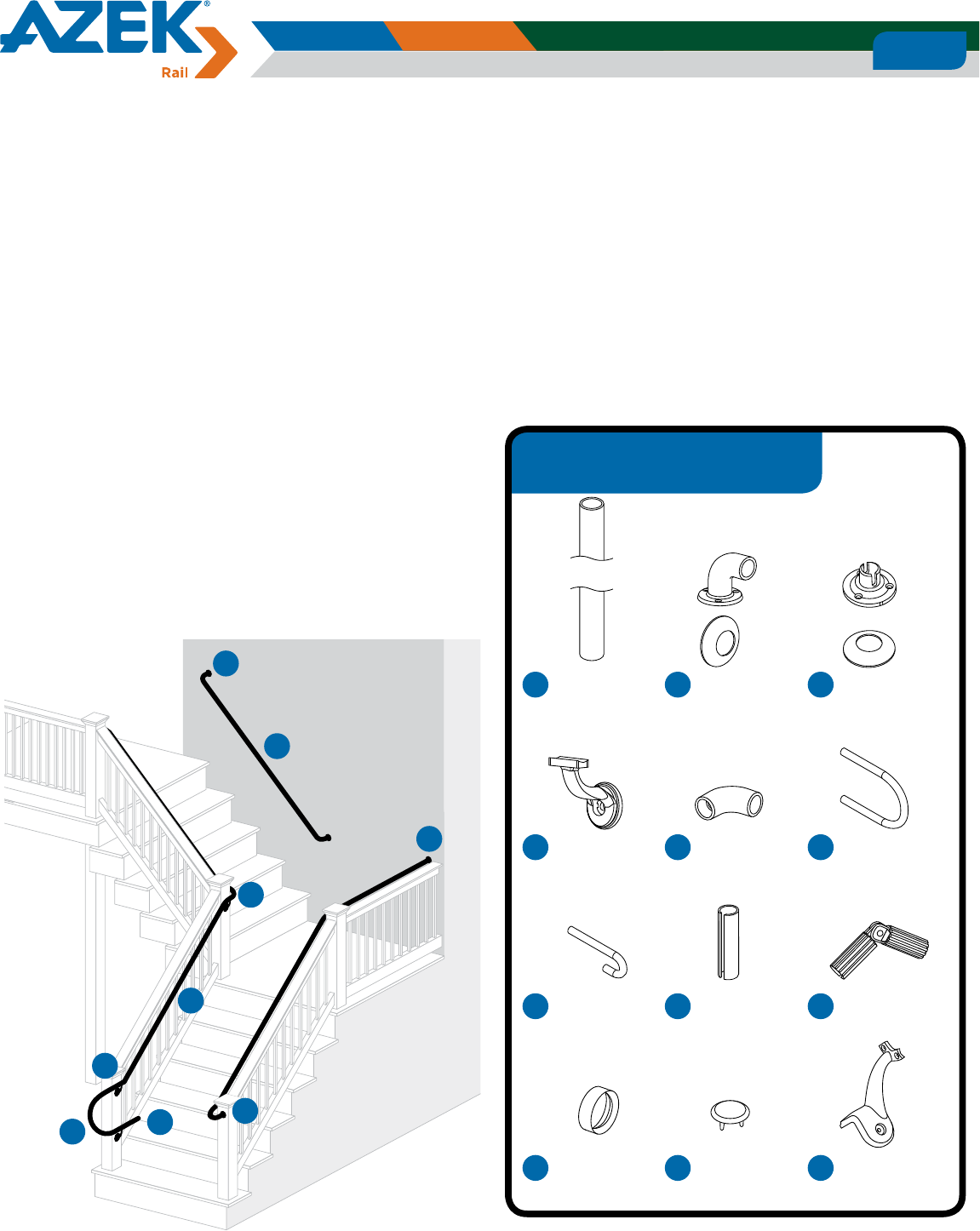

Hand Rail Components
Secondary Handrail System
• Aluminum and PVC tube should always be cut at
the same length.
• If using a power saw, a carbide tip blade of at least
60 teeth is recommended.
• Use an adhesive appropriate for bonding aluminum
• Bracket or return kit required every 72”
WARNING: Always wear safety goggles
104"Straight Rail
1.5" diameter
(PVC with aluminum
stiffener)
Hand Rail
Bracket with
screws and cap
(Cast aluminum)
Post Return
(PVC with aluminum
stiffener)
Joint Ring
(Plastic)
Wall Return &
Cover Plate
(PVC with aluminum
stiffener)
90° Corner
(PVC)
Straight Joiner
(Not visible)
Rail End Cap
(Plastic)
Straight Wall
Return
(Cast aluminum)
End Loop
(PVC with aluminum
stiffener)
Adjustable Joiner
(Not visible)
Angled Hand
Rail Bracket
(Cast aluminum)
1
1
4
7
10
2
2
5
8
11
3
6
9
12
3
4
5
6
10
11
7
AZEK Reserve
Please read all instructions completely before starting any part of the installation.
AZEK Rail should be installed using the same good building principals used to install wood or composite railing and in accordance with
the local building codes and the installation guidelines included below. AZEK Building Products Inc. claims no liability or responsibility for
the improper installation of this product.
AZEK Rail may not be suitable for every application and it is the sole responsibility of the installer to be sure that AZEK Rail is fit for the
intended use. Since all installations are unique, it is also the installers responsibility to determine specific requirements in regards to each
Rail application.
AZEK Building Products recommends that all designs be reviewed by a licensed architect, engineer or local building official before
installation. Should you have specific questions prior to installation, please call AZEK customer service at 877-ASK-AZEK (877-275-2935)
or visit our website at www.azek.com.
AZEK Railing is tested as a whole system and should be used that way. It is not intended to be used in conjunction with other railing
systems or fasteners.
The following Installation Guidelines are applicable for installation of AZEK Premier, AZEK Trademark, and AZEK Reserve Rail Systems
(except AZEK Reserve over post applications).
Safety: Always wear goggles when handling, cutting, drilling and fastening materials.
Note: Check local code requirements prior to installation.
