Temperature module
with Voltage-Output and I²C-Bus
Description
Typical areas of applications
• Industrial instrumentation
• Building automation
• Ventilation and air conditioning systems
• Automotive, white goods
• OEM products
Characteristic features
• For PT 1000 sensor element
• Temperature measurement depending type:
–32 ... +96 °C, -32 ... +224 °C, -32 ... +480 °C
• Digital I2²C-interface, additionally
ratiometric or absolute voltage output
• Calibrated and ready-to-use
• Miniaturised dimensions
• Operating voltage range 6... 24 V DC
• Optimum price performance ratio
Features
Temperature is one of the most frequently measured physical parame-
ters. For price sensitive mass applications, fully integrated semicon-
ductor sensors are available which have a limited temperature range
of approx. –50 ... +150 °C. In industrial applications, platinum tempe-
rature sensors are very common, which offer a large measuring range
of –100 ... +500 °C, but are more complex to evaluate because the
non-linear behaviour of PTC has to be corrected. Our innovative tem-
perature sensor module with ASIC unites both the worlds: As sensor, a
high quality platinum resistance is used. The ASIC as subsystem with
exible signal processing performs the job of capturing, linearization
and calibration of the sensor raw value till delivering of rened and
processed output signal, which is made available as binary value over
the I²C-Bus or alternatively as voltage signal 0 ... 5 V.
The module offers an optimum price performance ratio. The platinum
temperature sensor is interchangeable, guarantees a high measuring
accuracy, drift stability, environment resistance as well as an outstan
-
ding long-term stability. The ASIC provides the temperature measured
value as a calibrated signal over the appropriate analog or digital inter
-
face with high resolution, which makes simple integration possible into
customized products. The calibrated and standardized output signal gu
-
arantees simplest integration of the subsystem in the development pha-
se and makes shortest time to market product developments possible.
Technical Data

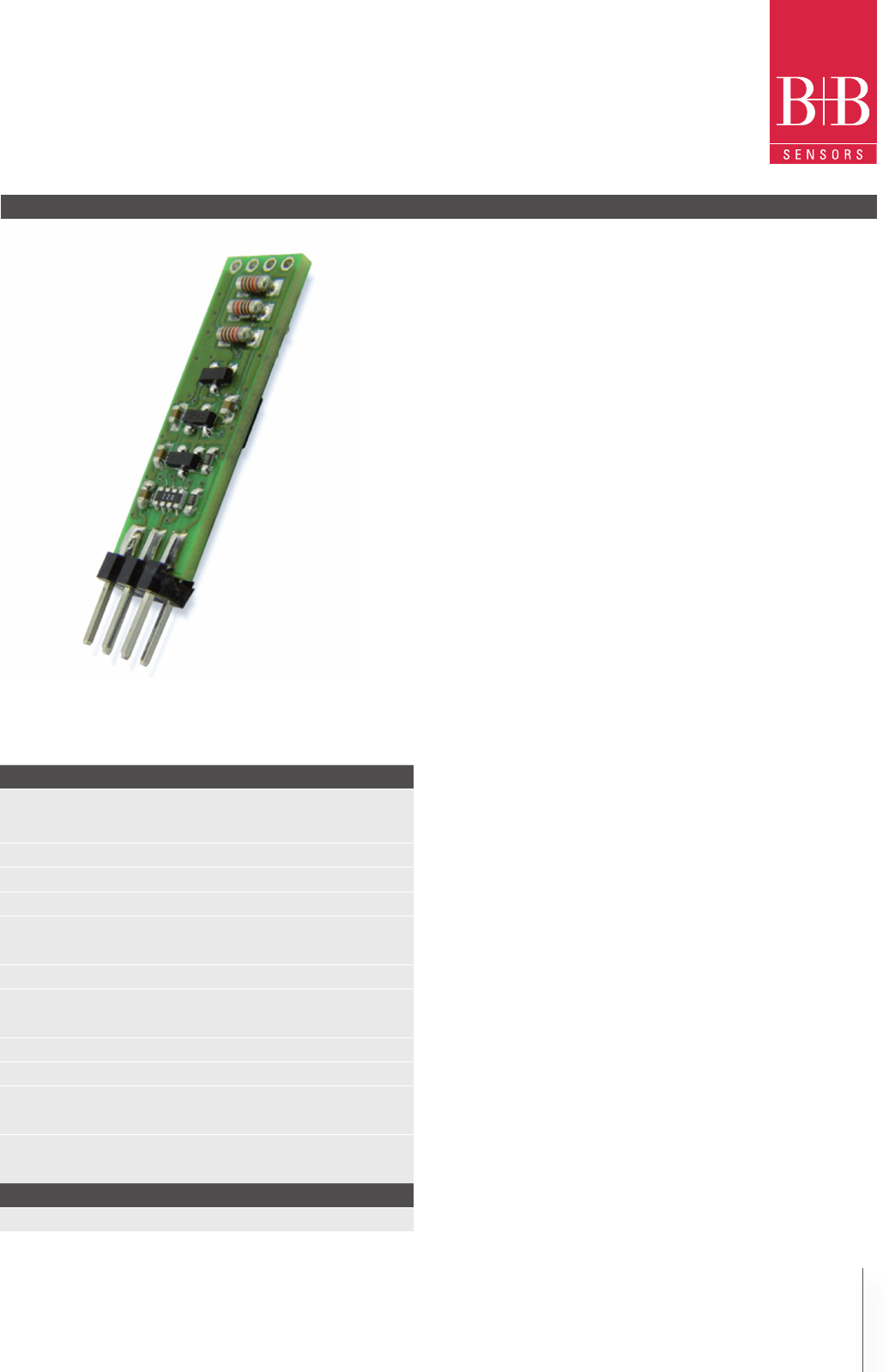

Temperature module TEMOD-I²C
Temperature sensor
Main channel
Pt1000 class B,
two wire connection
Measuring range
See table
Measuring accuracy
See table
Resolution
I²C Bus: 14 bit, Analog output 11 bit
Temperature
application range
-20 ... +90 °C
for the electronics
Interfaces
I²C-Bus andVoltage output 0 ... 5 V
Dimensions
Approx. 9 x 37 mm,
see dimensional drawing
Operating voltage
6 … 24 V DC
Current input
< 3 mA
Housing
Unpackaged module,
housing optional
Connection
6-pole pin strip,
connection cable optional
Article Art.-No.:
Temperature module
TEMOD-I²C
