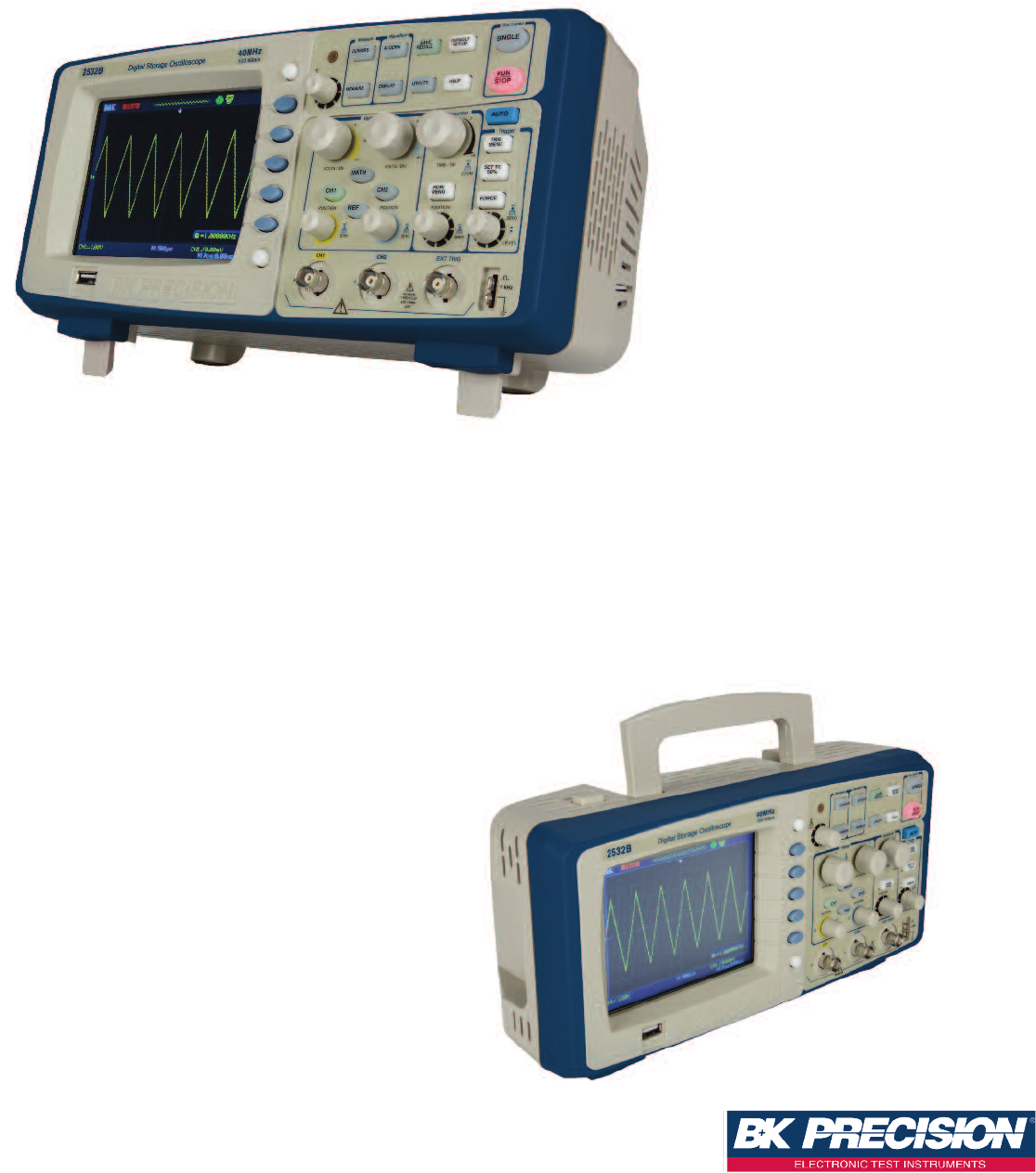

The 2530B and 2532B combine performance

and value all in one portable solution. With

advanced triggering capabilities, long waveform

memory up to 32,000 pts/Ch, and extensive fea-

tures such as pass/fail limit testing, digital filter-

ing, waveform recorder, and automatic measure-

ments, these oscilloscopes offer powerful tools in

a small affordable package.

Maximize productivity with the included

EasyScope PC software that lets you easily

capture, save, and analyze measurement results.

All oscilloscope parameters can be controlled via

a PC without the need for programming.

Features and Benefits

■ 25/40 MHz bandwidth (2530B / 2532B)

■ 500 MSa/s sample rate

■ Bright 5.7” color display

■ Long waveform memory up to 32,000 pts/Ch

(when time base is 50 ns or 25 ns and

maximum data depth mode is enabled)

■ For educators - ability to disable the Auto Set

button

■ Five different math functions – Add, Subtract,

Multiply, Divide, and FFT

■ Versatile triggering capabilities including pulse

width, line-selectable video, slope, and

alternating trigger

■ 32 automatic measurements

■ Advanced tools include digital filter with

adjustable limits, pass/fail testing, and wave

form recorder mode

■ 12 different language user interfaces and

context sensitive help

■ USB device port connectivity for remote

PC control through EasyScope PC software

■ USB host port for convenient storing and

recalling of waveform data, setups, and

screenshots on a USB flash drive

Digital Storage Oscilloscopes

Models 2530B and 2532B

Data Sheet

www.bk prec ision.c om

Technical data subject to change

Educators will appreciate the ability to disable

the Auto button that would automatically setup

the scope to display a signal circumventing the

need to know how to set up scope parameters.

This is key for teaching waveform measurement

fundamentals as if it was an analog oscilloscope.

The 2530B and 2532B are ideal oscilloscopes

for applications in education, troubleshooting

and debug, service and repair.
