GUIDE TO SIMPLE HOME THEATER OPERATION WITH YOUR B & K SR10.

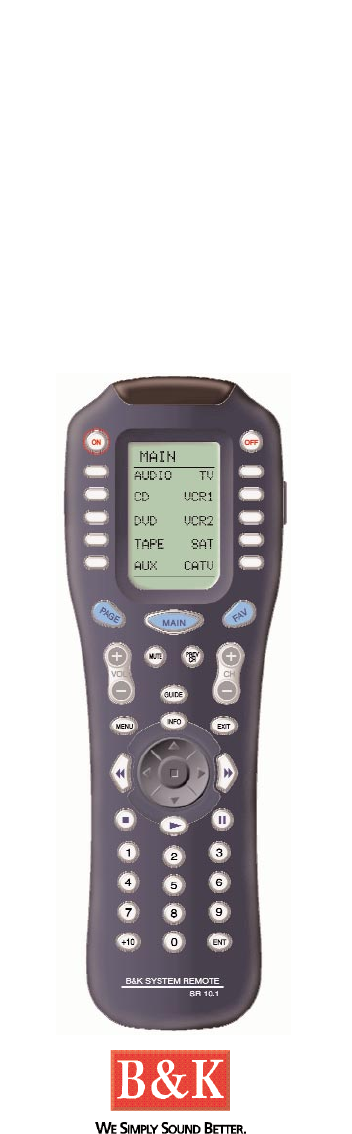

Thank you for purchasing the B & K SR 10.1 System Remote Control! Table of Contents Finding the MAIN Menu 1 Please use this manual as a guide to operating your home theater after the remote control is programmed by your dealer for automated operation. The SR10.1 remote control is preprogrammed at the factory to operate the B & K component only. See your dealer for information on programming the SR10.1 remote control. GUIDE TO SIMPLE HOME THEATER OPERATION © 2002 B & K Components Ltd. All rights reserved.
1 2 Finding the MAIN Menu Turn On Your Entire System The MAIN Button always takes you to the MAIN Menu. Power on/off your entire system with the MAIN Menu by following these steps: 1. Touch the MAIN button to make sure that you are on the MAIN Menu. It doesn’t matter which page of the MAIN Menu is displayed. The PAGE button switches between two MAIN Menu pages IF you have more than ten remote controls. When the top title bar says MAIN, you are on the MAIN Menu. 2.
3 Using the MAIN Menu The MAIN Menu enables you to either select a new Activity or simply select a new Device to control. When you select a new activity, the remote control will issue a MACRO (a timed sequence of many commands from many different remote controls). This MACRO was custom programmed for your system by your installer. It will issue all of the commands necessary to switch the sound and picture of your system.
Controlling the Volume For your convenience, the VOLUME Up, VOLUME Down and the MUTE buttons will always control the surround sound system, regardless of what activity or device you are controlling. 6 The Power ON and OFF buttons now operate only the selected device (to turn the entire system on/off, return to the MAIN Menu). The ten screen labeled buttons are now labeled with any commands that do not fit one of the buttons with printed labels.
7 The thumbpad is a the remote control exclusive control for both right and left handed operators. When you are operating a device with any kind of onscreen menu, guide or display, the thumbpad offers you easy one-handed control with your thumb. To SELECT or say OK, simply press your thumb straight down. You’ll feel the click as the OK/SELECT/ENTER command is sent. Using FAV - Favorites The favorites menu is created uniquely for you by your custom installer.
9 Backlighting Turn on the backlighting by pressing the LIGHT button on the right side of the the remote control remote control. The backlighting will stay on briefly, then turn off automatically. If you wish to turn it off without waiting, simply tap the LIGHT button again. 10 Batteries If the batteries are running low, the screen will display a warning at the bottom of the screen whenever you press the Power ON button. You may also experience a slight drop in the operating distance of either the SR 10.
11 Warranty The SR10.1 is covered against any manufacturers defects or workmanship for a period of one year from the date of purchase. This warranty does not cover the following items: -Batteries, or damage to the remote from faulty batteries. -Damage from misuse, neglect, or acts of nature. -Products that have been modified or incorporated into other products. -Products purchased more than 12 months from the current date. -Units purchasedfrom unauthorized dealers or companies.
B & K Components, Ltd. 2100 Old Union Road . Buffalo, New York 14227 1.800.543.5252 In NY: 716.656.0026 Fax: 716.656.1291 E-mail: info@bkcomp.com . On the web: www.bkcomp.
