Deep Vault Installation
When installation of the ORION Pit Transmitter occurs in a deep vault,
Badger offers a kit that can be used to mount the transmitter to the side
of the vault. To install, mount the ‘C’ clamp on the side of the vault. Select
a location close to the top of the vault that will not be damaged when
access to the meter is required. Place the tape, supplied in the
installation kit, around the transmitter approximately ½” from the top
of the transmitter. Thread the locking ring on the transmitter until it
makes contact with the tape. Insert the transmitter into the ‘C’ clamp.
Close the ‘C’ clamp and lock it in place so that it closes over the tape
and securely holds the transmitter.
NOTE:
ORION Radio Transmitters perform best with a clear line of
sight. Performance varies by installation and lid construction.

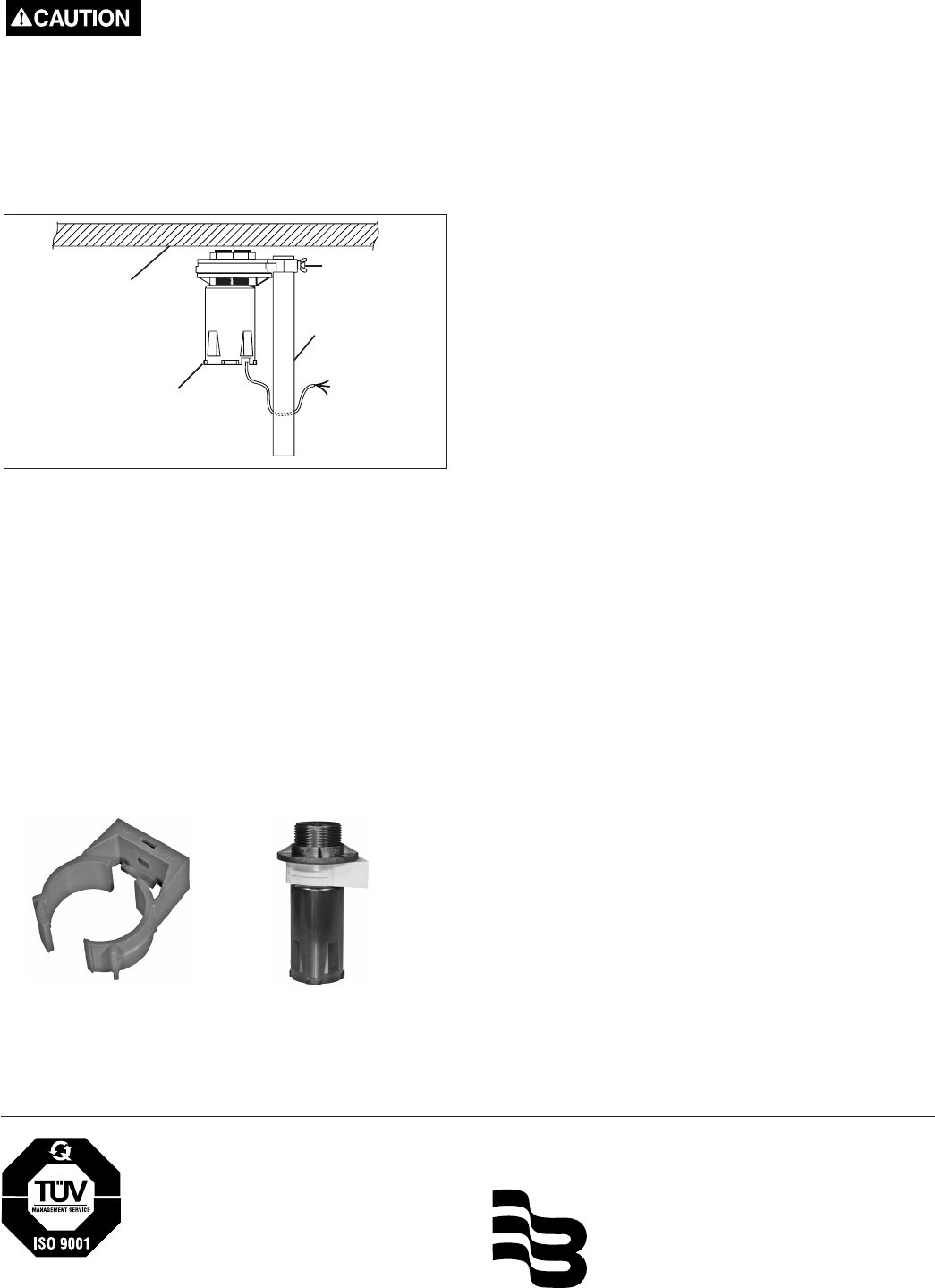

Figure 4 Identification - Pit ORION Beneath Lid Installation
Armorcast Installation
ORION Pit Transmitters can also be installed in composite and plastic
lids like Armorcast. An installation kit for installing an ORION Pit
Transmitter to the lid is available. To install an ORION transmitter to
a composite or plastic lid, thread the locking ring onto the top of the
ORION Transmitter. Slide the transmitter into the mounting bracket.
Thread the locking ring so that the transmitter is held firmly in place.
Badger Encoder Register Installation
Install an RTR
®
or ADE
®
on the water meter and secure it using either
the Torx
®
screw or standard seal screw provided.
TESTING
RTR Transmitter
Once the Pit ORION Transmitter is securely installed and the RTR is
mounted on the water meter, the ORION system is ready for operation.
Run water through the meter to increment the RTR 1/10
th
of the test
circle. Upon receiving the first digital signal from the RTR, the transmitter
counts the signal and begins its radio frequency transmissions. No
specific testing of the wiring or programming of the transmitter is
required. Reading each pit transmitter immediately after installation
verifies proper operation and reading performance. ORION reading
equipment only can be used to read installed ORION Transmitters.
ADE Transmitter
Once the ADE is assembled to the meter and the ORION transmitter
is installed, the transmitter is ready for operation. The user can either
let the transmitter automatically turn itself on by rolling the ADE number
wheels to all zeros or by turning on the transmitter with the handheld
or mobile reading equipment. Since the ADE transmitter updates its
reading from the ADE once an hour, it may take up to one hour after
the ADE number wheel stack rolls to all zeros for the transmitter to begin
broadcasting. In either case, no specific testing or programming of the
transmitter is required. Reading each pit transmitter after it has been
installed verifies proper installation and reading performance.
LICENSE REQUIREMENTS
This device complies with Part 15 of the FCC Rules. Operation of this
device is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undes-
ired operation. Any changes made by the user not approved by Badger
Meter can void the user's authority to operate the equipment. No
license is required by the utility to operate an ORION meter reading
system.
Figure 6
C Clamp around Transmitter
Figure 5
C Clamp
METER PIT LID
ORION
TRANSMITTER
CLAMP
1/2 SCHEDULE
40 PVC PIPE
To install, drive rebar or stake into the ground prior to attaching Pit
ORION Transmitter to avoid damage. Once in the ground, secure
the mounting bracket on the appropriate rebar or pipe using the
enclosed washer, wing nut and hex head bolt provided with the
bracket. Insert the Pit ORION Transmitter through the bracket and
thread the locking nut to secure the ORION transmitter (see Figure
4). For best results mount the Pit Transmitter approximately
1-2" below the underside of the lid.
