Owner's Manual

3
Specifications
Operating Temperature ........... +32°F to +140°F (0°C to +60°C)
Enclosure ............................... NEMA-1/IP30 - Indoor Use Only
Safety Ratings......................... UL1950, CSA950, and EN60950
Flame Class Rating .................. UL94V-0
Power Requirements ............... 110 VAC (60 Hz) US;
220 VAC (50-60 Hz) Europe, 5 VA
Internal Transceiver ................. (for use with up to 30 field devices)
Transmits up to 500 feet (150 m), line-of-sight,
in the unlicensed 902-928 MHz band (North
America) or 869.7-870 MHz band (Europe)
Phone Modem ........................ Internal (calls host per schedule or alarm and
accepts calls from host)
Line Impedance: 600 Ohm, transformer
coupled (CTR21 - complex impedance)
Dial Type: DTMF or Pulse (subject to national
approvals)
Baud Rate: 2400 (CCITT V.22bis); 1200
(CCITT V.22 or Bell 212A)
Note: This modem will not detect cadenced
dial tone, but will blind dial on command.
For compliance and approval statements, see
pages 5-7.
Data Storage .......................... Depends upon number of field devices and
frequency of readings.
Host Software ........................ Barton DataScan
®
Plus PC Software
Mounting ............................... Tabletop or wall mount
Shipping Weight (approx.) ....... Controller, (standard) Antenna, & AC adapter
1.7 lbs (0.8 kg)
Technical Support/Warranty Service/Repair
US: 626-961-2547 • Canada: 403-291-4814 • Europe: 441243826741

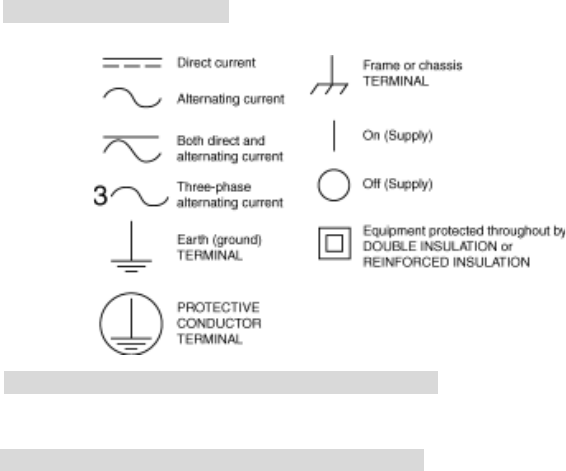

Symbol Information
The following symbols may be used in this manual or on the instrument:
