Installation Guide

A. 1 Curb J. 6 Plastic Wall Anchors T. 3 #8 x 1 ½” Flat Head Screws
B. 1 Roll of Tape (double-stick) K. 3 #8 x 2” Truss Head Screws U. 1 Door Handle (w/ Magnet)
C. 1 Pivot Jamb Seal Vinyl L. 1 Glazed Door Panel V. 1 Door Handle Vinyl (8”)
D. 1 Pivot Jamb M. 1 Bottom Rail W. 1 Drip Rail
E. 2 Pivot Brackets N. 2 #10 x 7/16” Set Screws X. 1 Tapered Drip vinyl
F. 3 #6 x 3/8” Truss Head Screws P. 2 Pivot Blocks Y. 2 Drip Plugs
G. 2 #8 x 1/8” Allen Set Screws R. 2 Nylon Bushings AA. 4 Rail End Caps
H. 1 Allen Wrench (5/64”) S. 1 Strike Jamb (w/ Magnet) BB. 1 BASCO Decal
QCI0020 Rev. 0 Page 3 of 8 Certified 12/13/06

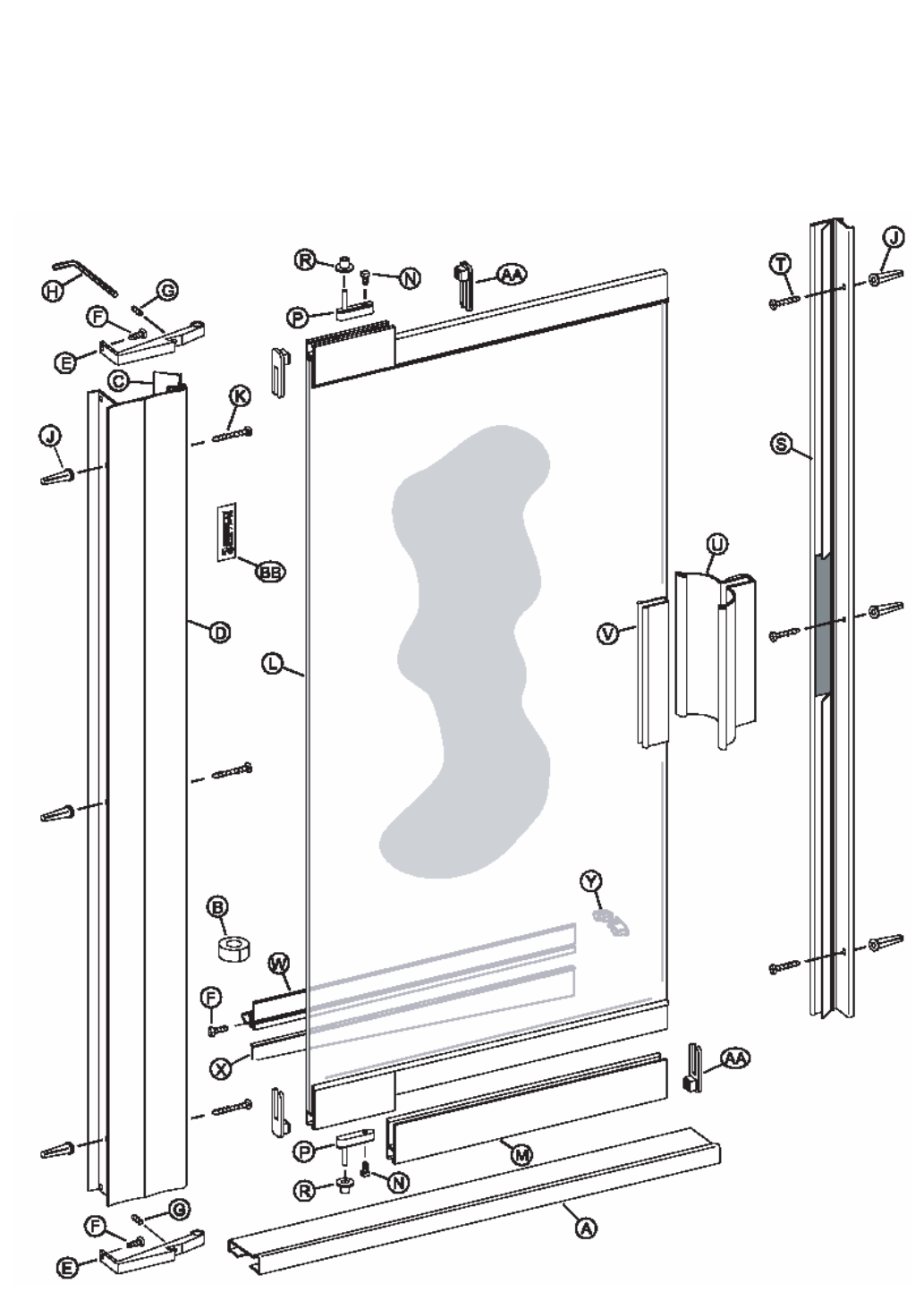

3600 Parts List
