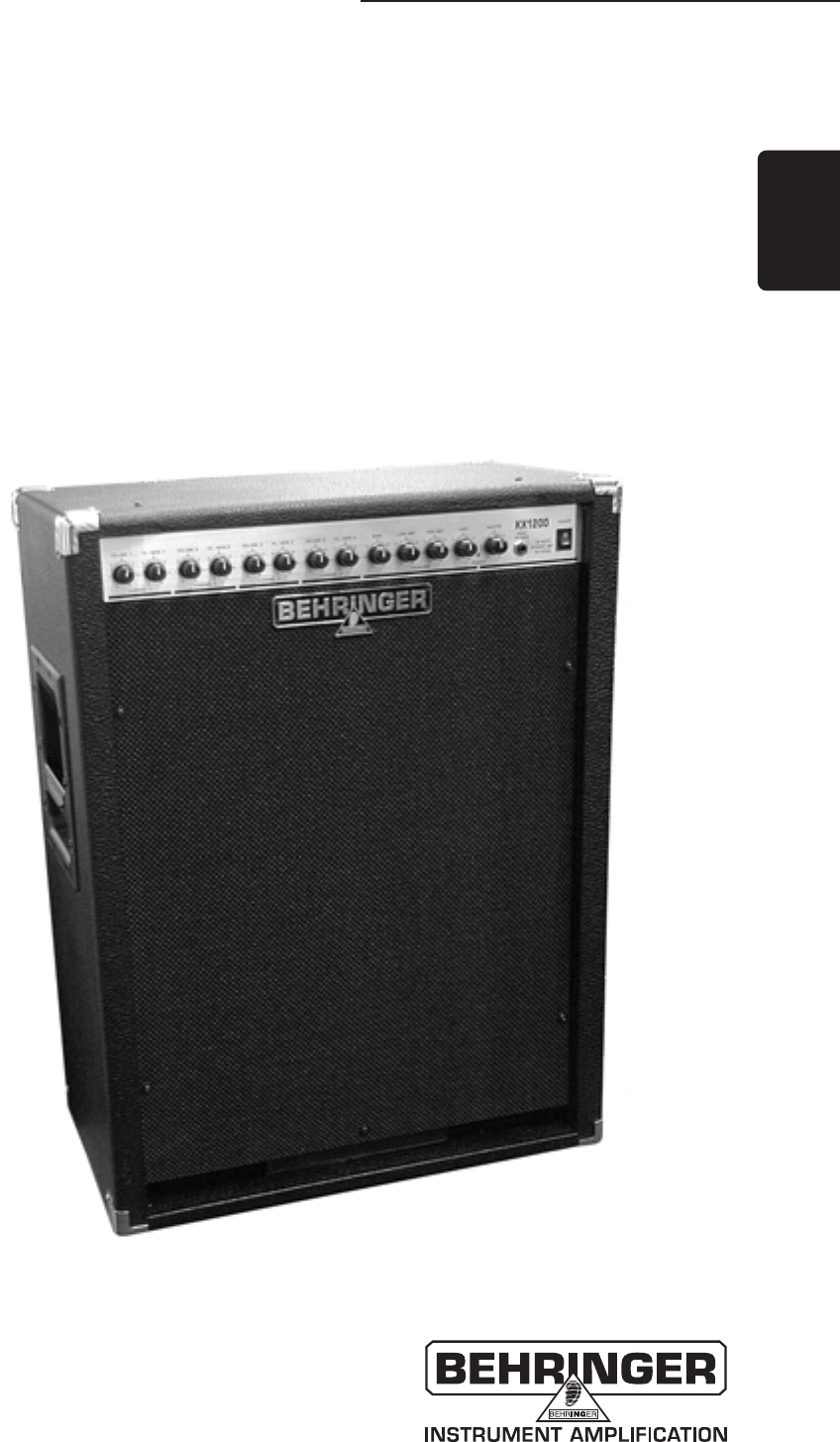

KEYBOARD AMP/PA SYSTEM KX1200 Version 1.
KEYBOARD AMP/PA SYSTEM KX1200 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover (or back). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure voltage that may be sufficient to constitute a risk of shock.
KEYBOARD AMP/PA SYSTEM KX1200 FOREWORD Dear Customer, Welcome to the team of KX1200 users and thank you very much for expressing your confidence in BEHRINGER products by purchasing this keyboard amplifier.
KEYBOARD AMP/PA SYSTEM KX1200 KEYBOARD AMP/PA SYSTEM Ultra-flexible 120-Watt, 4-channel keyboard amplifier with effects path and microphone input KX1200 s Powerful 120-Watt (RMS) keyboard amplifier with built-in 3-way bass reflex cabinet s Special custom-made 15" woofer, 5" midrange speaker plus tweeter s 4-channel operation with line inputs and dedicated volume controls s Effects/monitor path on all 4 channels s Additional XLR input on channel 1 for microphone connection s Tape input for line-level
KEYBOARD AMP/PA SYSTEM KX1200 TABLE OF CONTENTS 1. INTRODUCTION..................................................................................................................... 5 1.1 Before you begin ............................................................................................................................. 1.2 Control elements ............................................................................................................................. 1.2.1 Front panel ................
KEYBOARD AMP/PA SYSTEM KX1200 1.1 Before you begin Your KX1200 was carefully packed in the factory and the packaging is designed to protect the unit from rough handling. Nevertheless, we recommend that you carefully examine the packaging and its contents for any signs of physical damage, which may have occurred during transit.
KEYBOARD AMP/PA SYSTEM KX1200 6 The HIGH control allows you to boost/cut the treble frequency range. 7 Use the MASTER control to determine the KX1200s overall volume level. 8 The stereo 1/4" HEADPHONES jack allows you to monitor the amps audio signal with a pair of commercially available headphones. Connecting the headphones will mute the built-in speakers. 9 Use the POWER switch to switch your KX1200 on or off.
KEYBOARD AMP/PA SYSTEM KX1200 2. WIRING EXAMPLES 2.1 Standard keyboard set-up with external drum computer and effects device The standard set-up allows you to connect your entire keyboard equipment. Instead of the drum computer you could also use some sort of playback provided, for example, by a tape deck or CD player. Fig. 2.1: Standard set-up 2.2 Expanded P.A.
KEYBOARD AMP/PA SYSTEM KX1200 Fig. 2.2: Expanded set-up 3. AUDIO CONNECTIONS The 1/4" jack inputs/outputs of your BEHRINGER KX1200 are on balanced mono jacks except for the LINE IN-connectors (TRS) and the stereo headphones connector. The DIRECT OUT and microphone input are on balanced XLR connectors. The tape inputs/outputs are on cinch connectors. + Please ensure that only qualified personnel install and operate the KX1200.
KEYBOARD AMP/PA SYSTEM KX1200 Fig. 3.1: Wiring of a stereo headphones 1/4" plug Fig. 3.2: Different plug types 10 3.
KEYBOARD AMP/PA SYSTEM KX1200 4. SPECIFICATIONS AUDIO INPUTS Line In 1 - 4 Input impedance FX Return Input impedance Tape In Input impedance Mic 1 Input impedance 1/4" TRS approx. 30 kW balanced 1/4" stereo jack approx. 20 kW unbalanced RCA connector approx. 30 kW unbalanced XLR connector approx. 2 kW balanced AUDIO OUTPUTS Headphones connector Main Out Output impedance D.I. Out Output impedance FX/Mon Out Output impedance Tape Out Output impedance 1/4" stereo jack 1/4" stereo jack approx.
KEYBOARD AMP/PA SYSTEM KX1200 5. WARRANTY § 1 WARRANTY CARD/ONLINE REGISTRATION To be protected by the extended warranty, the buyer must complete and return the enclosed warranty card within 14 days of the date of purchase to BEHRINGER Spezielle Studiotechnik GmbH, in accordance with the conditions stipulated in § 3. Failure to return the card in due time (date as per postmark) will void any extended warranty claims.
