Data Sheet

TECHNICAL DATASHEET

code

74005PU

PRELIMINARY

Version

Date

2011-01-03

4 PR CAT7 S/FTP flex 26AWG PUR

page

1/3

ã Belden Wire & Cable B.V.

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner

STANDARDS

· ISO/IEC 11801 Cat 7,

· EN 50173 – 1

· TIA/EIA-568-B.2 (May 2001).

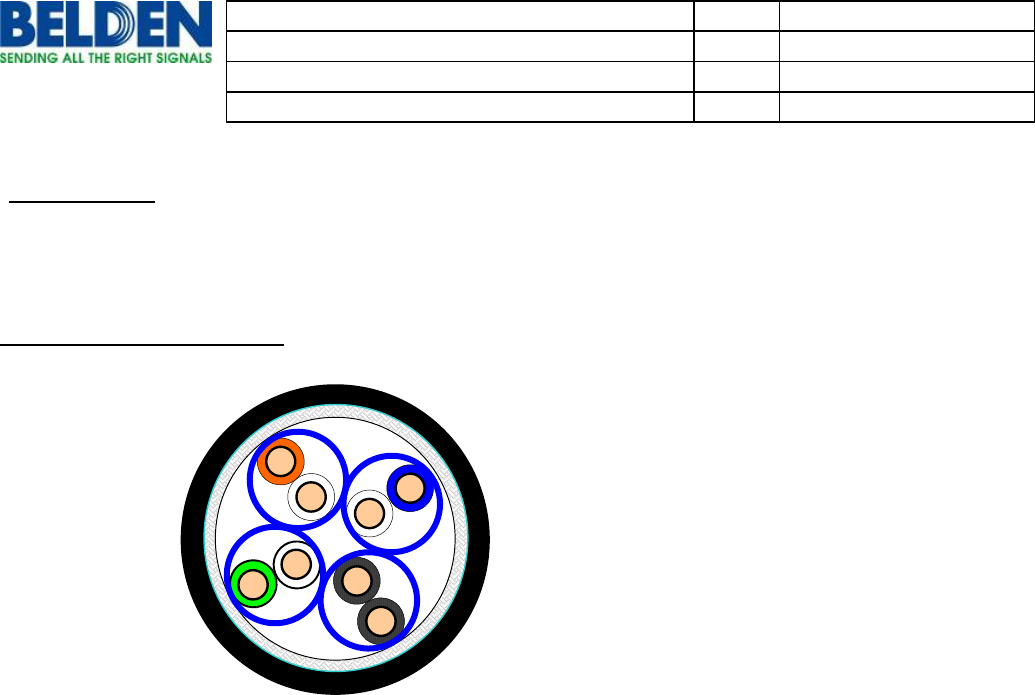

CABLE CONSTRUCTION

Conductor:

Material stranded PACW

Construction 7x0.16 mm (26 AWG)

Insulation:

Material Foam-skin PE

Diameter 1.05 mm +/- 0.05 mm

Screend Pair

Pair 2 twisted insulated conductors

Number of pairs 4, all twisted together Left hand lay.

Colour code pair 1 White / Blue & Blue

Colour code pair 2 White / Orange & Orange

Colour code pair 3 White / Green & Green

Colour code pair 4 White / Brown & Brown

Foil-Screen each pair Aluminium-polyester, Alu-side out

Braided Screen:

Material tinned copper wires

Coverage >65%

Sheath:

Material PUR Flame-retardant and Halogen-free

Diameter 6.8 +/- 0.3 mm

Wall-thickness 0.5 mm

Colour Black

PAGE 1
TECHNICAL DATASHEET PRELIMINARY 2 4 PR CAT7 S/FTP flex 26AWG PUR code Version Date page 74005PU 3 2011-01-03 1/3 STANDARDS · ISO/IEC 11801 Cat 7, · EN 50173 – 1 · TIA/EIA-568-B.2 (May 2001). CABLE CONSTRUCTION Conductor: Material stranded PACW Construction 7x0.16 mm (26 AWG) Insulation: Material Foam-skin PE Diameter 1.05 mm +/- 0.05 mm Screend Pair Pair 2 twisted insulated conductors Number of pairs 4, all twisted together Left hand lay.
PAGE 2
TECHNICAL DATASHEET PRELIMINARY 2 4 PR CAT7 S/FTP flex 26AWG PUR code Version Date page 74005PU 3 2011-01-03 2/3 ELECTRICAL CHARACTERISTICS Low frequency and D.C. D.C. resistance conductor < 145 Ω/km Resistance unbalance <2% D.C. insulation resistance > 5000 MΩ.km Dielectric strength cond. – cond. (2 sec.) 2.5 kV D.C. Mutual capacitance < 56 nF/km Capacitance unbalance < 1600 pF/km High frequency High frequency Velocity of propagation ≥ 0.
PAGE 3
TECHNICAL DATASHEET PRELIMINARY 2 4 PR CAT7 S/FTP flex 26AWG PUR code Version Date page 74005PU 3 2011-01-03 3/3 ENVIRONMENTAL AND OVERALL CHARACTERISTICS Maximum operating voltage 450 V D.C. and 300 V A.C. Maximum continuous current per conductor (@25°C) 1.
