User's Manual

NOTE: Full Kit will service one axle
Half Kit will service one S-camshaft
123
UHB800-CAM
S-CAMSHAFT OVERHAUL KITS

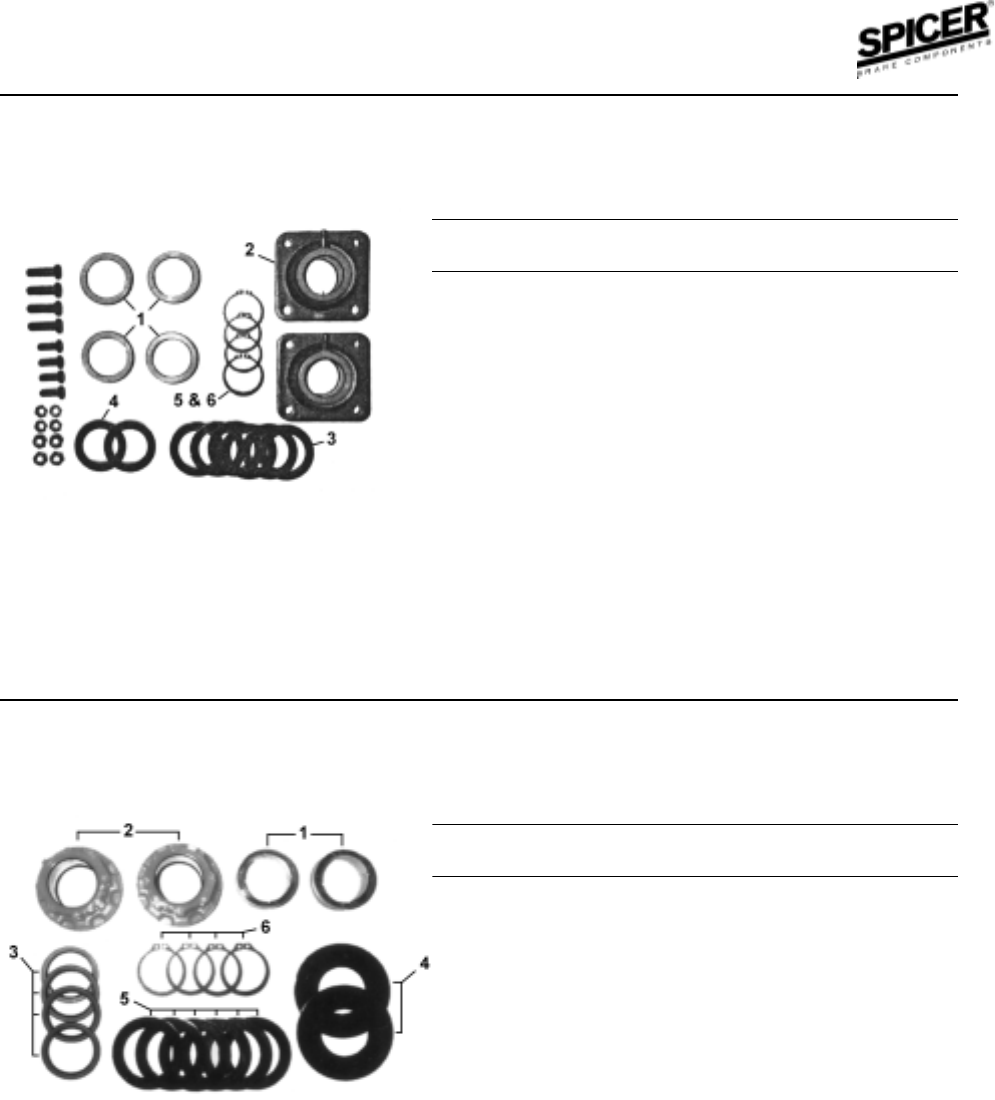

Fruehauf "Pro-Par" Trailer Axle
Full Kit Number: 43-7039A
Half Kit Number: 43-7039A-1
Item Spicer Description Full Kit Half Kit
No. No. Qty. Qty.
1 28-1237 Camshaft Spider Bushing 4 2
2 30-1390 Center Plate Housing 2 1
3 29-1322 Camshaft Washer 6 3
4 29-1307 Camshaft Washer 2 1
5 29-1302 Camshaft Lockring 2 1
6 29-1301 Camshaft Lockring 2 1
General Information
• 12
1
/
4
" and 16
1
/
2
" Brakes
• 1
5
/
8
" Diameter at Spider
• New Design Outboard S-Camshaft Bracket Assembly
Eaton Shuler Trailer Axle Brake
Full Kit Number: 43-7040
Half Kit Number: 43-7040-1
Item Spicer Description Full Kit Half Kit
No. No. Qty. Qty.
1 28-1233 Camshaft Spider Bushing 2 1
2 27-1200 Cam Bracket Bushing 2 1
3 29-1269 Spider Seal 4 2
4 29-1325 Camshaft Washer 2 1
5 29-1307 Camshaft Washer 6 3
6 29-1301 Camshaft Lockring 4 2
General Information
• 12
1
/
4
" Brake
• 1
1
/
2
Diameter at Spider
• Single Anchor Pin (SAP) Brake
