NOTE: Full Kit will service one axle
Half Kit will service one S-camshaft
134
UHB800-CAM
S-CAMSHAFT OVERHAUL KITS
Eaton Drive Axle Brake
Full Kit Number: 43-7069
Half Kit Number: 43-7069-1

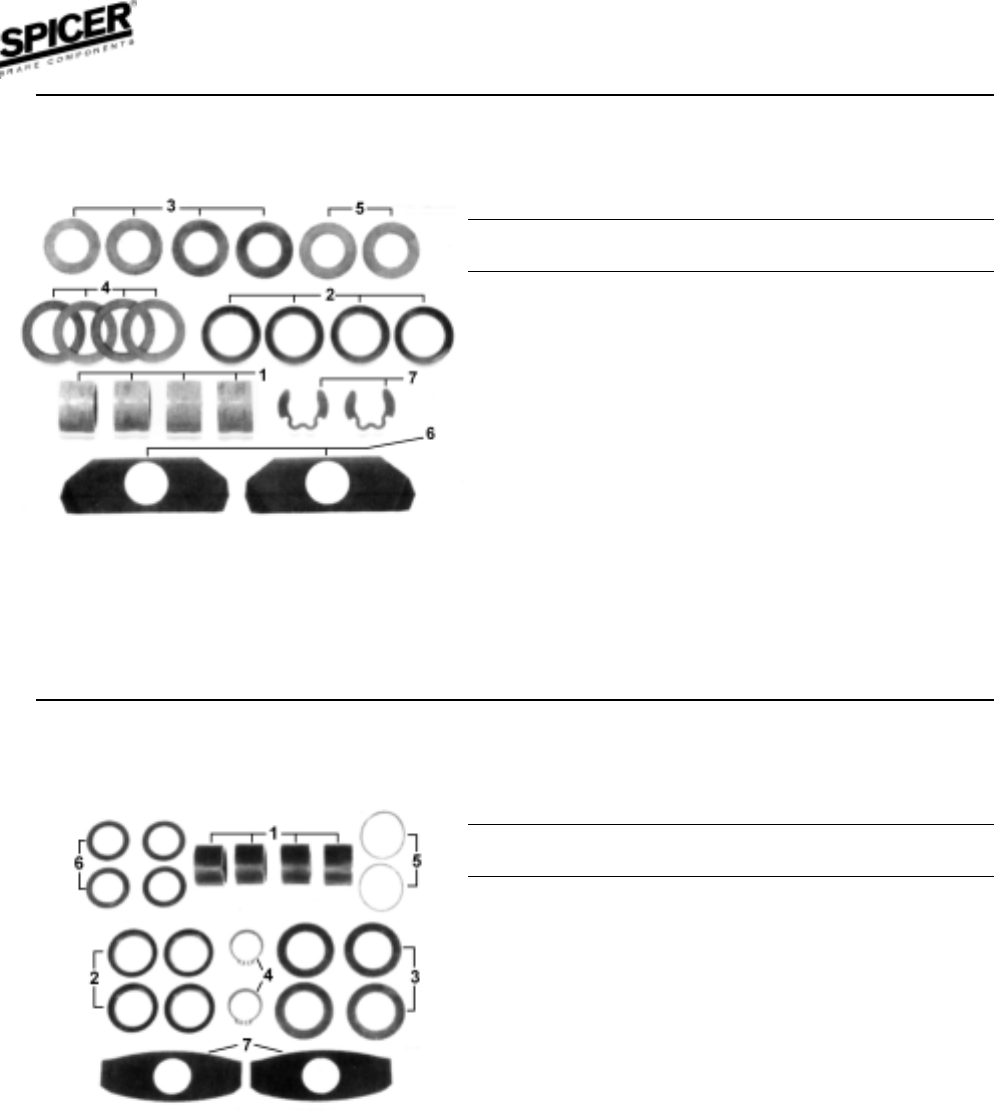

Item Spicer Description Full Kit Half Kit
No. No. Qty. Qty.
1 28-1233 Camshaft Spider Bushing 4 2
2 29-1269 Spider Seal 4 2
3 29-1307 Camshaft Washer 4 2
4 29-1320 Camshaft Washer 4 2
5 29-1321 Camshaft Washer 2 1
6 29-1355 Camshaft Washer 2 1
7 29-1303 Retainer Snap Ring 2 1
General Information
• 16
1
/
2
" ES™ Brake
• 1
1
/
2
" Diameter at Spider
• Nylon Spider Bushings
Rockwell Steer Axle Brake
Full Kit Number: 43-7070
Half Kit Number: 43-7070-1
Item Spicer Description Full Kit Half Kit
No. No. Qty. Qty.
1 28-1233 Camshaft Spider Bushing 4 2
2 29-1270 Camshaft Seal 4 2
3 35-1580 Anchor Pin Washer 4 2
4 34-1547 Camshaft Lockring 2 1
5 30-1375 Camshaft Bracket O-Ring 2 1
6 29-1345 Camshaft Washer 4 2
7 29-1339 Camshaft Washer 2 1
General Information
• 15" x 4" “Q Plus” Series Brake
• 1
1
/
2
" Diameter at Spider
