Specifications
Firewolf
™
Series Addressable 24V
Fire Systems up to 255 intelligent points:
6
Firewolf
™
Series
Intelligent features, cost-effective design and
up-to-the-minute, compliance
Features:
✔ Analog, Addressable, Conventional,
Wireless &/or Hardwired technologies
✔ Wireless Fire – Full line of UL
Commercial Grade long-range
supervised models
✔ More Addressable Devices than any
in its class; mile-long loop lenghts and
more device load ea. ch. Supports
10,000 Feet of SLC Cable!
✔ New & Improved! Fire Quick-Start
System Programming & EZ-Maintenance Modes
✔More value and power on-board for a more cost-effective solution –
• Built in DACT (TCP/IP option), Horn/Strobe Sync. (Wheelock/
System Sensor protocol), 4 programmable NACs (up to 24), 7A
power, regulated 24V output
✔Cost-effective retrofits -supports conventional legacy devices &
existing wiring (all types/gauges)
✔Comprehensive local and remote programming & diagnostics.
✔Quick Smoke Obscuration Reports for AHJs (Printable reports of
analog device sensitivity settings with current readings (uploadable)
✔Optional NAC Extender for universal FACP support and Regulated
Power Supplies, too
✔ Code-compliant integrated Security System option with independent
pre-isolated circuits
✔Compliances - NFPA 72, UL Commercial Fire, UL864 9th Ed., UL985,
CSFM and NYCFD.
Napco Commercial Firewolf
™

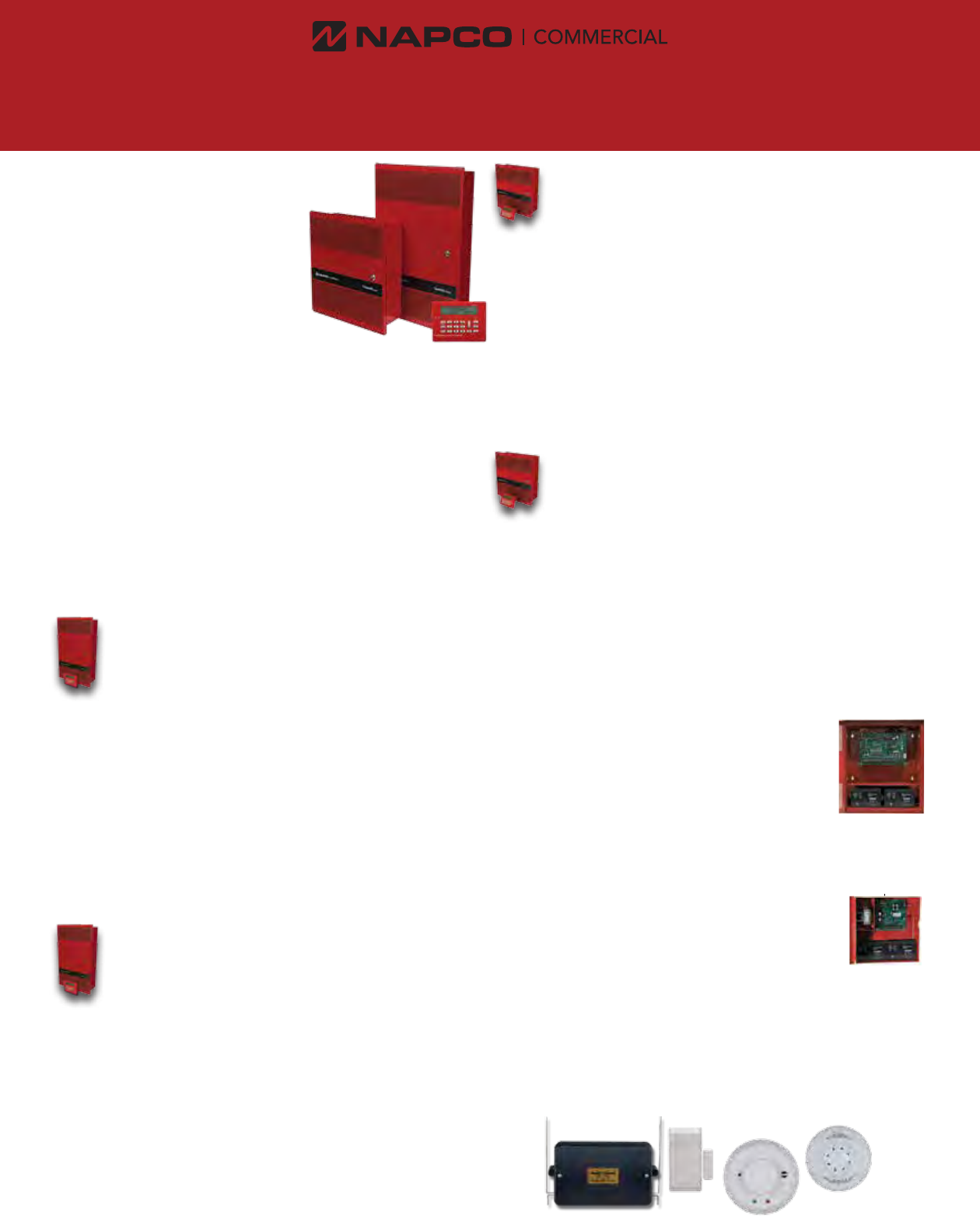

Fire System Kit Configurations:
Napco Commercial Firewolf 255pt 24V Intelligent Addressable
Commercial Fire System Kit
GEMC-FW-255KT
24V Panel, 255 pts via commercial addressable, wireless or
conventional fire devices, 4 on onboard v NACs providing up
to 6.5A notification power
7Amp, 24V Power Supply
Built in horn strobe sync on each NAC (Wheelock/System
Sensor protocol)
Built in dual line communicator; dual onboard serial ports; optional
TCP/IP
New Fire Quick-Start System Programming & EZ-Maintenance
Modes; Quickloader up/downloading incldg Quick access, Smoke
Obscuration Reports, Automatic drift compensation for smoke
detectors too
Nearly a mile max. wiring run - any wire type - ideal for retrofits. 24V
and 12V legacy devices supported
Large red locking enclosure, flush or surface mount. Up to 32AH
battery capacity.
Includes Fire Keypad (GEMC-FK1) LCD display, menu-driven, mounts
anywhere on bus. (Also global keypad unlock feature & full keyswitch
support).
Napco Commercial Firewolf 128pt 24V Intelligent Addressable
Commercial Fire System Kit
GEMC-FW-128KT
24V Panel, 128 pts via commercial addressable, wireless
or conventional fire devices, 4 on onboard programmable
programmable NACs providing up to 6.5A notification power.
7Amp, 24V Power Supply
Built in horn strobe sync on ea. NAC
Built in dual line communicator; dual onboard serial ports;
optional TCP/IP
New Fire Quick-Start System Programming & EZ-Maintenance
Modes; Quickloader up/downloading including Quick access,
Smoke Obscuration Reports; Automatic drift compensation for smoke
detectors too
Nearly a mile max. wiring run - any wire type - ideal for retrofits.
Supports 24V and legacy 12V devices
Large red locking enclosure, flush or surface mount. Up to 32AH
battery capacity
Includes Fire Keypad (GEMC-FK1) LCD display, menu-driven, mounts
anywhere on bus (Also, global keypad unlock feature & full keyswitch
support.)
Napco Commercial Firewolf 32pt 24V Intelligent
Addressable Commercial Fire System Kit
GEMC-FW-32KT
24V Panel, 32 pts via commercial addressable, wireless or
conventional fire devices, 2 on onboard NACs providing up to
4A notification power.
Locking medium red enclosure (flush or surface mount). Houses up to
16AH battery backup.
7Amp, 24V Power Supply
Built in horn strobe synch module on ea. programmable NAC
Built in dual line communicator; dual onboard serial ports; optional
TCP/IP
New Fire Quick-Start System Programming & EZ-Maintenance
Modes; Quickloader up/downloading incldg Quick access, Smoke
Obscuration Reports, Automatic drift compensation for smoke
detectors too
Nearly a mile max. wiring run - any wire type - ideal for retrofits. 24V
and 12V legacy devices supported.
Includes Fire Keypad (GEMC-FK1) LCD display, menu-driven, mounts
anywhere on bus (Also, full keyswitch support.)
Napco Commercial Firewolf 32pt Conventional Fire System
Kit - Ideal for sprinkler/waterflow
GEMC-FW-32KT
GEMC-FW32CONVKT
24V Panel, 32 Points via commercial addressable, wireless or
conventional fire devices, 2 onboard programmable NACs providing
up to 4A notification power
Locking, Medium Red Enclosure, 16 x 17” door, with 14.25” x 16” base
(flush or surface mount). Houses up to 16Ah battery backup.
4 Amp, 24V Power Supply
Conventional 8-zone 2-wire fire input module, for conventional 2-wire
smokes or any conventional fire detection device (GEMC-F8ZCPIM)
Built in horn/strobe synch. module on each NAC (Wheelock/System
Sensor protocol)
Built in dual line communicator; dual onboard serial ports
New Fire Quick-Start System Programming & EZ-Maintenance
Modes; Quickloader up/downloading
Menu-driven LCD Fire Keypad mounts anywhere on bus (GEMC-FK1)
7Amp NAC Extender for Universal FACP use or with
GEMC / Firewolf Systems
GEMC-NAC7S
7 Amps of Power for use with NAPCO or other FACP
panel brands
4 onboard programmable NACs with up to 2A ea.
expandable up to 24 per system
Regulates 24V auxiliary power
Distributes synched bell and strobe outputs with built-in module
Monitors AC, battery trouble, tamper and ground fault on Napco bus
or provides universal FACP support
Red locking enclosure, accommodates up to 16Ah total battery
capacity
12VDC Fire Power Supply for GEMC / Firewolf and
Gemini Panels
GEMC-12V2ASP-CF 12VDC
Power Supply for Fire Bus of Firewolf & GEMC Napco
Commercial Panels, remote supervised
Direct 120VAC connection
Supports 2ea. 12V,7Ah standby batteries
Wireless, UL Commercial, Fire Peripherals
GEMC-REVC Wireless 255 point RF Receiver (4/system, max.)
GEMC-WL-SMK Wireless Smoke, Photoelectric (complete)
GEMC-WL-HEAT Wireless Heat, 135° F
GEMC-WL-WD Wireless 1-pt input module
GEMC-WL-WD2 Wireless 2-input module (converts any UL device into
a wireless device, ex. pull stations or sprinkler supervisories.)
