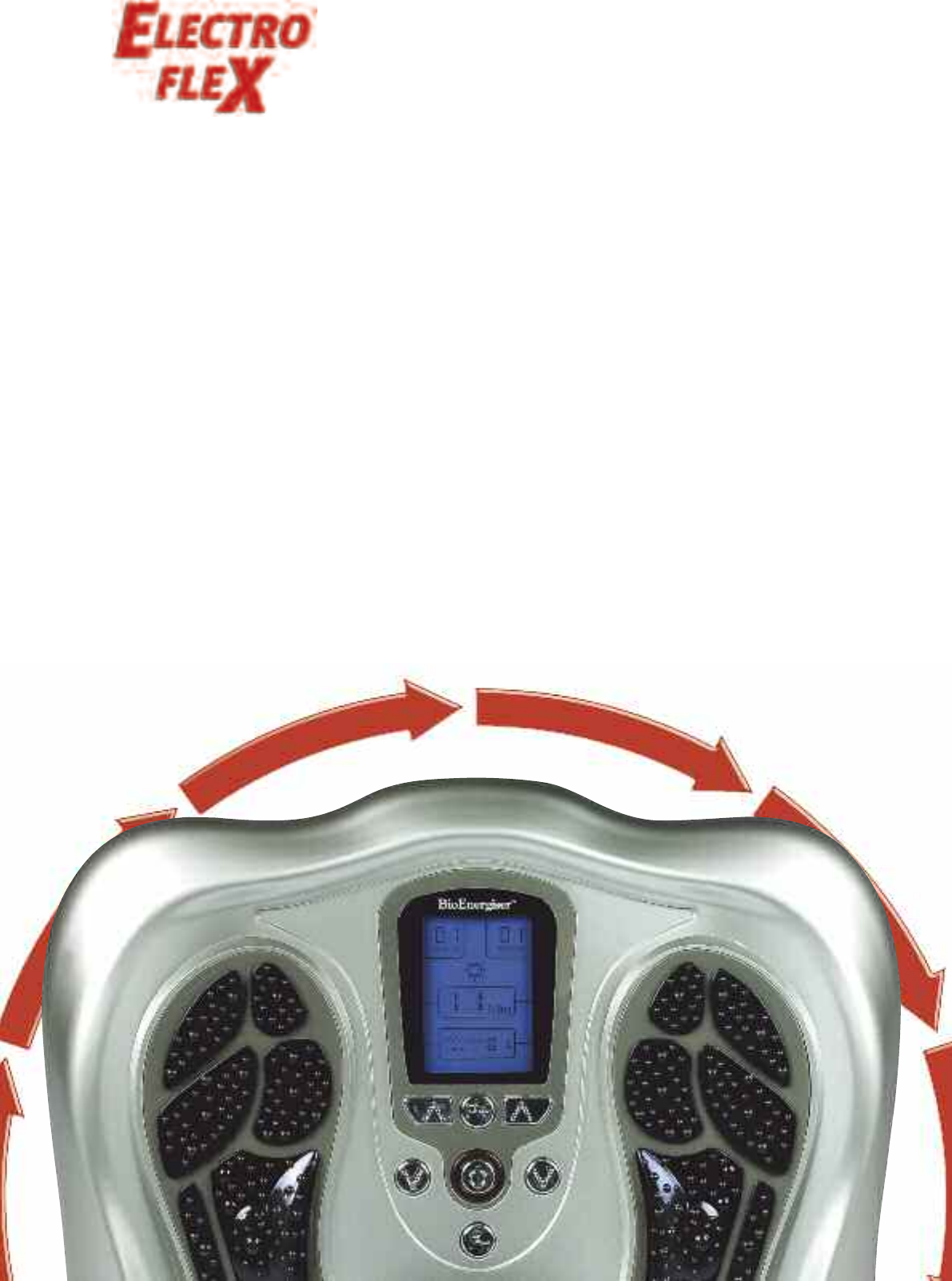

Circulation Massager ELECTRICAL STIMULATOR ElEctrical Stimulator instruction manual Circulation Massager ELECTRICAL STIMULATOR Available in stores throughout the UK and at: www.bioenergiser.com Distributed by ElectroFlex™ Circulation Massager - Eng - 15 Dec.
q u i c k s ta r t g u i d e contents For detailed operation of your ElectroFlex™ Circulation Massager Electrical Stimulator please refer to the comprehensive instructions within this manual. Important Safety Information To use ElectroFlex immediately follow this 5 point quick start guide. What is Electronic Nerve Stimulation? 8 Machine Overview and Part Names 9 Functions and Programmes 10 Remove your ElectroFlex Circulation Massager from the packaging.
i m P o r ta n t s a F e t Y i n F o r m at i o n 1. Please read these instructions thoroughly before use. 2. Please check that you have all of the component parts as detailed in this user manual. 3. take all parts out of the plastic bags and examine them to familiarise yourself with the components. Danger Notes on Safety The icons and warning signs are indicated here for your safety and correct usage of the product as well as to prevent injuries and/or damage to properties.
i m P o r ta n t s a F e t Y i n F o r m at i o n Do not use this unit on infants or people not capable of expressing their intentions. May cause an accident or ill health. Do not use this unit in places with high humidity such as bathrooms or while taking a bath or shower. You will receive a strong electrical shock. Do not use this unit while sleeping. The main unit may develop a malfunction, or the pad may move to an unexpected region and cause ill health. Do not use this unit while driving.
W h at i s e l e c t r o n i c n e r v e s t i m u l at i o n ? INTENDED USE: Medical Purpose This Electrical Stimulator is intended to be used as a muscle stimulator to relieve (muscle) pain, increase blood circulation, relax stiffness muscles, reduce swollen feet and ankles and fatigue. The massaging effect is achieved by electronic stimulation of the nerves through electrode pads placed on the skin or through the foot plates. Various massage regions and treatment programs can be selected.
Functions and Programmes electroFlex outPut Wave Forms Control Panel Foot Electro Therapy Massage lcD showing the intensity level for feet – maximum 40 levels BAND1 lcD showing the timer BAND2 Min lcD showing the intensity level for body – maximum 40 levels lcD showing the Program indication from 1 – 10 modes PROGRAM E Body Toning If you choose to tone muscle groups or target pain in other areas of your body the ElectroFlex comes with four gel pads.
e l e c t r o F l e x o u t P u t Wav e F o r m s hoW to oPerate For feet - BAND 1 in order to increase the conductivity we recommend that you dampen the soles of your feet. 1. Place your bare feet onto ElectroFlex (do not wear socks). 2. Press (and hold down for 3 seconds) the on/off button, the LCD screen will light up in blue. The program will show 01 and both band shows 00, which means the device is in standby mode. (See Figure 3). Figure 3.
h o W t o o P e r at e For Body – BAND 2 using the Gel Pads Connect with the supplied AC/DC Power Adapter Plug the DC plug of the power supply into the socket on the side of ElectroFlex (see Figure 10. Plug in power adaptor to a suitable wall socket. (Make sure that the input voltage of the wall socket is suitable for the supplied adaptor). Suggested Gel Pad positioning Wash and dry skin before use. Connect the output wire to the gel pads.
cleaning Electrode Gel pad: troubleshooting and maintenance Safety Precautions • When not in use, store the electrode gel pads on the plastic pad protectors provided at room temperature. • Do not open the device or repair it yourself. This will invalidate your warranty and may cause serious harm. • Keep the electrode gel pads clean and dust free in a dry location, keep away from oily or sticky objects.
t e c h n i ca l s P e c i F i c at i o n s WarrantY Product Name ElectroFlex - Circulation Massager Electrical Stimulator Model BE109 Power Supply 4.5V DC or 3 x 1.5V Alkaline Batteries Type C* Supplier of Adaptor Golden Profit Electronics Ltd. Adaptor Input 230V~50Hz 100mA Model Number of Adaptor SY-04010-BS Adaptor Input 230V~50Hz 100mA Adaptor Output 4.5V DC 100mA 0.45VA Battery Life Approx 1 Month: When used 25 minutes a day continuously Frequency Generation Approx.
i m P o r ta n t i n F o r m at i o n Electro Magnetic Compatibility (EMC) 5. Guidance and Manufacturer’s Declaration – Electromagnetic Immunity 1. ElectroFlex needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the accomPaNYiNG DocumENtS.
i m P o r ta n t i n F o r m at i o n 6. Guidance and manufacturer’s declaration – electromagnetic immunity 7. Recommended separation distances between The ElectroFlex is intended for use in the electromagnetic environment specified below. The customer or the user of the ElectroFlex should assure that it is used in such an environment.
Circulation Massager ELECTRICAL STIMULATOR ElEctrical Stimulator instruction manual Circulation Massager ELECTRICAL STIMULATOR Available in stores throughout the UK and at: www.bioenergiser.com Distributed by ElectroFlex™ Circulation Massager - Eng - 15 Dec.
