User's Manual

BTS-600 User Quick Guide
Data collector
Please read this manual thoroughly and carefully before you start to use this device and
keep this document in the safe place to get easily after reading it.
This Guide is to introduce the user the basic ways to use
We have tried to avoid as few mistake as possible in the manual. However, if there is any
trouble or loss caused by this manual, we are sorry that we are not able to take such kind
of responsibility. This document is preliminary version and will be subject to change
without any notice in advance.
Followings are the notices you have to mind on the safe use:
This device has taken the safety into consideration if user wrongly uses this device
under very dangerous case. To avoid any kind of accident, please follow the following
principals:
Danger!
Please do not put the device into water resulting in short-circuit and fire. It cannot be
used or stocked under the conditions of overheat or high temperature which will cause
the battery become hot, fired& broken etc issues to cause failure and safety concern.
Please do not put it in the place which is easily to get fire.
Warning!
● Please stop using immediately when there is some weird smell or overheat under
the charging or operation mode.
● When it is still under charging mode after lasting for a long time (more than that
standard required time), Please stop charging immediately.
● Please do not use the adaptor outside and do not use the cotton cloth to pack it
which will easily to get electric shock or fire.
● Please start to charge this device in the place without any water-spray or moisture.
If there is any dust on the plug of AC adapter, please use the dry cloth to clean to avoid
any fire accident.
● Please do not use the wet hand to pull out the AC adapter which will cause electric
shock.
● If there is any cable seriously twisted or broken, Please stop using immediately or it
will easily to cause electric shock, short-circuit or fire.
● Please do not use this adapter on the other different devices.
NOTICES:
● Please don’t put it close to fire or directly under the sunlight, which will cause
deformed and defective easily.
● Please do not drop this device under the strong strike and impact.
● Please stop using immediately when there is some dew on the device.
● Please make sure the adaptor is properly plugged into the socket or it will easily to
cause electric shock, short-circuit or fire.
● When you are trying to pull out the plug, please do not pull the cable only but must pull
from the connector head.
● Except charging the power, please pull out the adapter plug from the socket or it will
cause the fire accident.
● Please do not put any heavy thing on this device, which might cause some cutting
accident.
The notices must to be minded when using:
● Regarding the battery life, defect, repair or other issues, please confirm they are not
caused by errors of the user operation.
● It is possible there will be some information to be wiretapped or leak during the
wireless transmission, which case will not be under our charge.
● Please do not use any alcohol, benzine or cleaner liquid with grinding function on this
device.
● Please do not hurt the surface of Scan window which will cause it not workable on
scanning.
Bluetooth
● This device is design based on Bluetooth standard specification but it maybe not
workable with the other kind of BT device.
● Before using this device, please remember not to use any other mobile devices or
equipment in the same application area within the short distance to cause any
interference.
Signal interferes from TV and radio
Sometimes, there will be some failure of data transmission and receiving which are
caused by the signal interferes from TV and radio.
Special Features
● Easy to use and convenient to carry due to its small and light design.
● BTS-600 is with CCD scanner which can read the barcode on the Liquid crystal, size
as 4mil only. Compared with the other laser scanners, BTS-600 is small, reliable and can
resist any kind of high impact from the environment.
● BTS-600 is Better than the normal barcode scanner, and it can read any reverse
barcode.
● You can use the attached AC adaptor or through the USB connection to PC to charge
the battery power.
● With Bluetooth connection, BTS-600 can transmit the scanned data to PC, notebook or
other mobile devices.
● If you use iPhone or iPad (iOS) device, you can use the software keyboard to display
and save the max 8,000 data files (data size:128Byte) with its massive storage
function.
● When you are using BTS-600 usb port connecting to the PC, it will become the mobile
storage device and help you to get the data easily.
● Built-in Time auto-correction function can save the read date& time together with Data.
● You can also save the configuration file into PC which can be duplicated into multiple
BTS-600 to simplify the set-up process.
● Buzzer volume can set up as totally OFF/ High/ Mid/ Low 4 levels.
Items inside the package
Please confirm if there is any below item of the package listed in lack or broken:
If such issue happens, Please immediately contact the store where you bought.
● Data collector ● Strap ● AC Adaptor ● Quick guide ● USB cable（Option to buy）

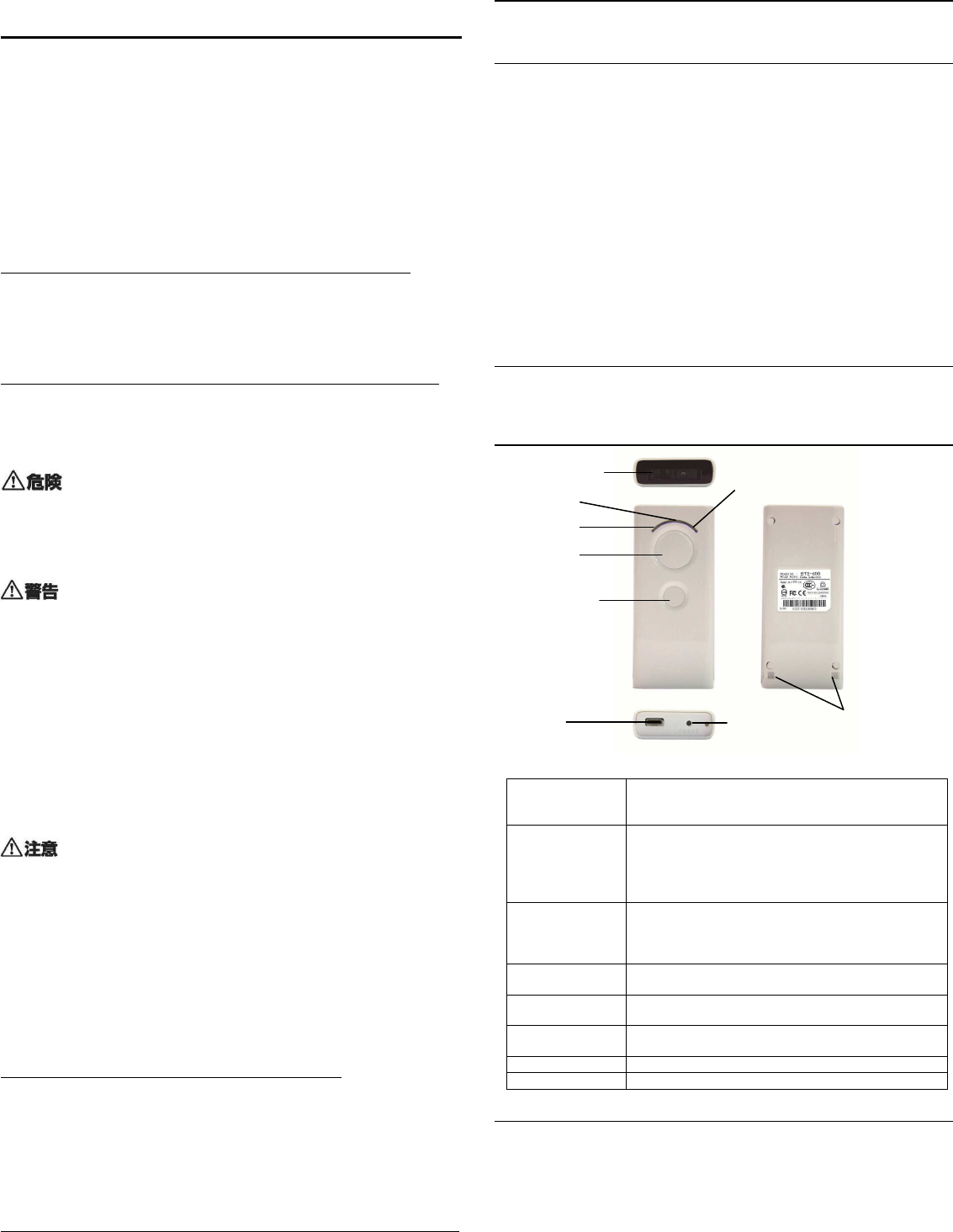

Key features on the device:
Scanner window
● LED Light Status:
Scan LED Result of Scanning Barcode
Green light on：Successful
Red light on：Failed
Battery LED Battery Status
Green light on：Charging completed
Green light twinkling：Power too Low
Red light on：Power Charging
Red light twinkling：Failed on Charging
Bluetooth LED Result of Bluetooth connection:
Green light twinkling fast：Waiting for Paring connection
Green light twinkling slowly: Data is Pairing successfully
and transmitting data
Scan (Power) key Press the key button for 3 seconds to turn on and start
Barcode scanning
Function key According to which mode to activate different functions
USB This USB port can be the input port for power charging
and data transmission
Reset button Press this button to reset all values into Default values
Strap hole You can put the strap through this hole
Mode
There are three different modes for your different applications to choose:
● Real Mode (You can choose HID or SPP profile )
You can use BT to transfer the data right after scanning and it will also show the
error message when data transmission is failed.
● Batch mode
You can save the data into memory after scanning and use the below two ways to
get: (1) Use BT SPP program to get data.
(2) Connecting with PC to get data.
● Hybrid mode
Under this mode, BTS-600 will transfer data automatically (similar to real mode).
When it is out of Communication range or disconnection mode, it will save the data
into memory after scanning and transfer the data according to the order of data
saving completely after BT connection is ready again.
Bluetooth LED
Scan Led
USB
port
Reset button
Strap holes
Charge Led
Scan Key
Function Key
