CATx DVI-D Extender with EDID
ACS2001A-R3
Black Box Tech
Support: FREE! Live.
24 /7. Tech support
the way it should be.
Great tech support is just 30 seconds
away at 724-746-5500 or blackbox.com.
Order toll-free in the U.S.:
Call 877-877-BBOX
(outside U.S. call 1-724-746-5500)
FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax [phone]
Mailing address:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018
Web site: www.blackbox.com
E-mail: [e-mail]
Customer
Support
Information
BL A C K B O X
®
CATx DVI-D Extender with EDID
ACS2001A-R3, rev. 2
ACS2001A-R3
1. Specifications
Cable Distance (Maximum) — 98.4 ft. (30 m)
at 1920 x 1200 at 60 Hz;
164 ft. (50 m) at 1280 X 1024 at 60 Hz
Connectors — Input: Local unit: (1) DVI F;
Remote unit: (1) RJ-45;
Output: Local unit: (1) RJ-45;
Remote unit: (1) DVI F
Power — (2) DC 5-V 1-A adapters (included)
Size — 1.5”H x 2”W x 2.6”D (3.8 x 5.2 x 6.7 cm)
Weight — 0.3 lb. (0.1 kg)

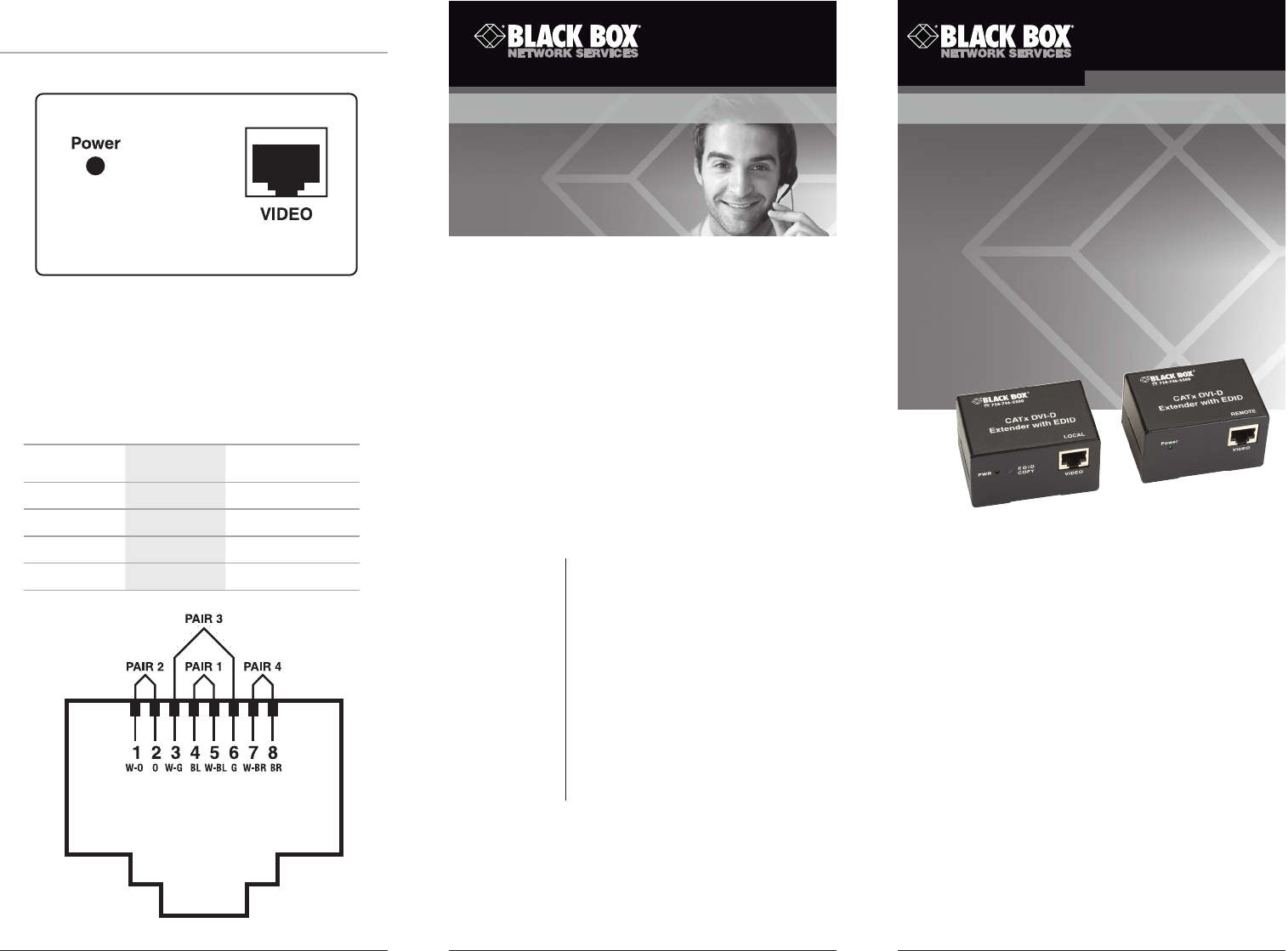

Figure 5. Remote unit rear view:
Power LED, CAT5 port.
4. Wiring Information and Coding
Table 2. RJ-45 pinning and color coding.
Conductor
Identification
RJ-45 Pin
Assignment
Color Code for
Conductor
Pair 1 5/4 White-Blue/Blue
Pair 2 1/2 White-Orange/Orange
Pair 3 3/6 White-Green/Green
Pair 4 7/8 White-Brown/Brown
Figure 6. Jack positions.
