1-4. View of LGB1005A-R2
1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs)
There are 8 TP Gigabit Ethernet ports and 24 SFP fiber ports for optional
removable modules on the front panel of the switch. LED display area, locating on the left
side of the panel, contains a Power LED, which indicates the power status and 24 ports
working status of the switch. One RS-232 DB-9 interface is offered for configuration or
management.

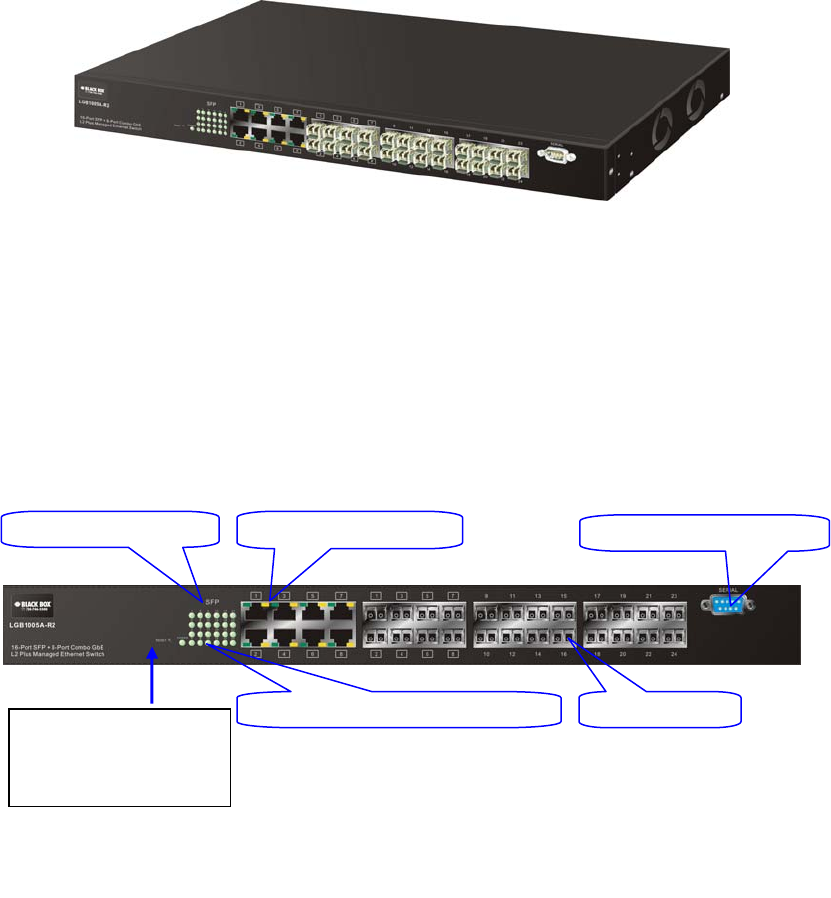

Fig. 1-1 Full View of LGB1005A-R2
Fig. 1-2 Front View of LGB1005A-R2
Power Indication LED Gi
g
abit Ethernet Port
RESET Button:
RESET button is used
to reset the
mana
g
ement s
y
stem.
SFP Fiber Port Fiber Port Status Indication LEDs
RS-232 DB-9 Connector
