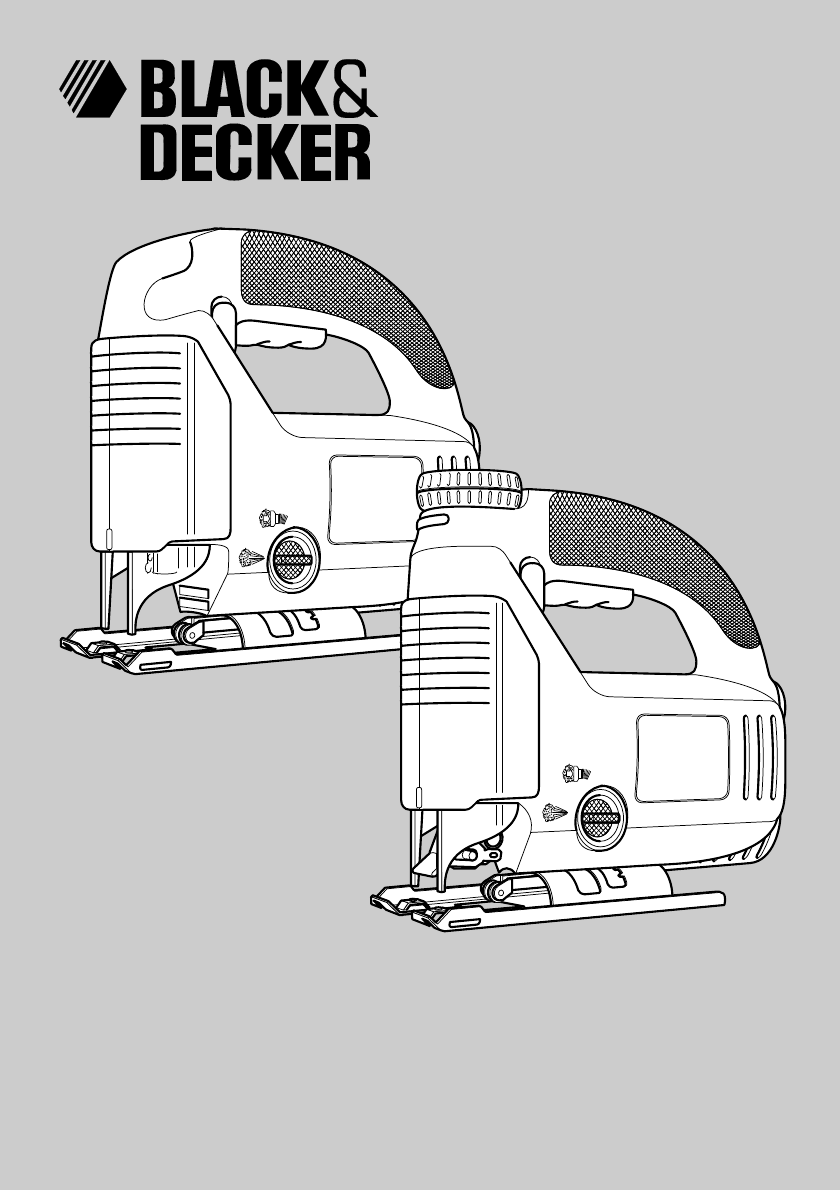

® KS629 KS631 KS633 KS635 KS630 KS632 KS634 KS638
Congratulations! On the purchase of your Black & Decker jigsaw. To ensure the best results from your jigsaw please read these safety and usage instructions carefully. If you have any questions or queries after reading this manual please do not hesitate to call your local service and information centre (the number is towards the back of this manual).
Contents Page 4 Page 5 Safety instructions Double insulation Electrical safety Mains plug replacement Extension cables Unwanted tools and the environment The Black & Decker guarantee After sales service for your Black & Decker product Page 6 Our after sales service policy Accessories Technical data Features Fitting the blade Page 7 Blade support roller Operating your jigsaw Saw shoe adjustment for angular cutting Dust blowing Dust extraction Electronic speed regulation Page 8 Scrolling Handy hints Cu
Jigsaws user manual SAFETY INSTRUCTIONS Warning! When using electric tools, the following basic safety precautions should always be taken to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate the product and save this booklet. For safe operation: • Keep the work area clean. Cluttered areas and benches invite injuries. • Consider the work area environment. Do not expose the power tool to rain and do not use in damp or wet locations.
ENGLISH from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed. Note: Double insulation does not take the place of normal safety precautions when operating the tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool. ELECTRICAL SAFETY Be sure the supply is the same as the voltage given on the rating plate.
ENGLISH AFTER SALES SERVICE FOR THE BLACK & DECKER PRODUCT (UK, AUSTRALIA AND NEW ZEALAND ONLY) Black & Decker offers a nationwide network of authorised service agents. The use of other than genuine Black & Decker accessories and parts may damage or reduce the performance of your Black & Decker product and may also endanger the user. The terms and conditions of the warranty may also be effected.
ENGLISH All models Note: To achieve a greater accuracy of cut, ensure back of blade is touching blade support roller. See ‘Blade suport roller’ for instructions on how to change position of blade support roller. BLADE SUPPORT ROLLER To provide greater support and accuracy when cutting, your jigsaw is fitted with a blade support roller. This support should be adjusted so that the roller touches the back of the blade when cutting. To do this, loosen the front screw on the base of the shoe.
ENGLISH The correct speed for a particular material can be obtained from the following table: Material Electronic speed regulation Wood 6 - max Metal 2-3 Aluminium 3-5 PVC 3-4 Ceramic 3-5 Note: After using your jigsaw for extended periods on stroke settings 1-4, run the saw for 3 minutes at maximum speed to aid cooling. SCROLLING For scroller jigsaws only Before use, remember to retract the blade support roller and ensure the shoe is in the forward position.
ENGLISH EN55104, EN50144, EN61000 A weighted sound pressure 96dB (A) A weighted sound power 88dB (A) Hand/arm weighted vibration <2.5m/s2 Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG United Kingdom The Black & Decker policy is one of continuous improvement to our product and as such we reserve the right to change the product specification without prior notice.
Australia Black & Decker (A’asia) Pty Ltd 286-288 Maroondah Highway North Croydon, Victoria 3136 Tel: 03 9213 8200 Fax: 03 9726 7150 New Zealand Black & Decker 483 Great South Road, Penrose, Auckland Tel: 09 579 7600 Fax: 09 579 8200 South Africa Black & Decker South Africa (Pty) Ltd Suite no 107, PostNet X65, Halfway House 1685 Tel: 011 314 4431 Fax: 011 314 4435 United Kingdom Black & Decker 210 Bath Road, Slough Berkshire SL1 3YD Tel: 01753 574277 Tlx: 848317 BAND MH Fax: 01753 551155 Part no
Data protection act: Tick this box if you prefer not to receive information from Black & Decker or other companies.
GUARANTEE CARD Australia: Call 1900 937766 (the maximum call charge is $2.00 excluding tax) New Zealand: Call 0900 97766 (the maximum call charge is $2.00 excluding tax) South Africa: Black & Decker South Africa (Pty) Ltd, Suite no 107, PostNet X65, Halfway House 1685 United Kingdom & Ireland: PO Box 821, Slough, Berkshire, SL1 3AR Please complete this section immediately after the purchase of your jigsaw and post it to the Black & Decker address in your country (above).
