English 2 (Original instructions) 4
Intended use Your Black & Decker jigsaw has been designed for sawing wood, plastics and sheet metal. This tool is intended for consumer use only. Safety instructions General power tool safety warnings Warning! Read all safety warnings and all ! instructions. Failure to follow all instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f.

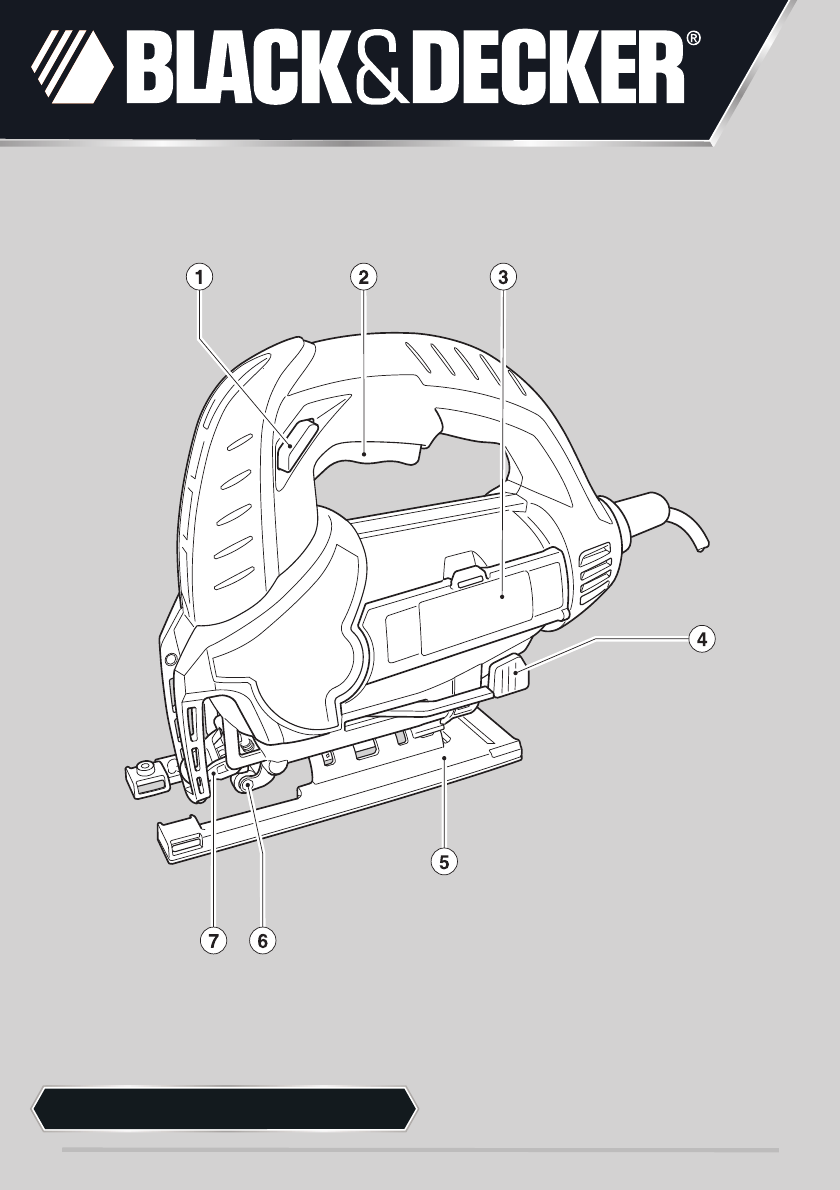

Labels on tools Warning! To reduce the risk of injury, the user must read the instruction manual. Electrical safety This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate. If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard. Features 1. Lock-on button 2. Variable speed on/off switch 3.
Sawing Hold the tool firmly with both hands while cutting. The shoe plate (5) should be held firmly against the material being cut. This will help prevent the saw from jumping, reduce vibration and minimise blade breakage. Let the blade run freely for a few seconds before starting the cut. Apply only a gentle pressure to the tool while performing the cut. Hints for optimum use Sawing laminates When cutting laminates, splintering may occur which can damage the presentation surface.
Technical data Voltage Rated input No-load speed Max. depth of cut Wood Steel Aluminium Weight KS800E TYPE 1 Vac 230 W 520 min-1 0-3000 mm mm mm kg 70 5 15 2.2 Level of sound pressure according to EN 60745: Sound pressure (LpA) 89 dB(A), uncertainty (K) 3 dB(A) Sound power (LWA) 100 dB(A), uncertainty (K) 3 dB(A) Vibration total values (triax vector sum) according to EN 60745: Cutting wood (ah, CW) 6.0 m/s2, uncertainty (K) 1.5 m/s2 Cutting sheet metal (ah,CM ) 6.5 m/s2, uncertainty (K) 1.
1 53 E16031 3 4 26 2 27 28 5 38 29 37 6 33 30 36 7 35 8 31 32 9 10 12 14 23 22 17 19 18 16 15 42 24 www.2helpU.com 34 11 13 21 20 39 25 KS800E 50 33 40 48 49 41 54 51 43 47 01 - 04 - 10 45 46 44 52 61 GB TYP.
ENGLISH Do not forget to register your product! www.blackanddecker.co.uk/productregistration Register your product online at www.blackanddecker.co.uk/productregistration or send your name, surname and product code to Black & Decker in your country.
