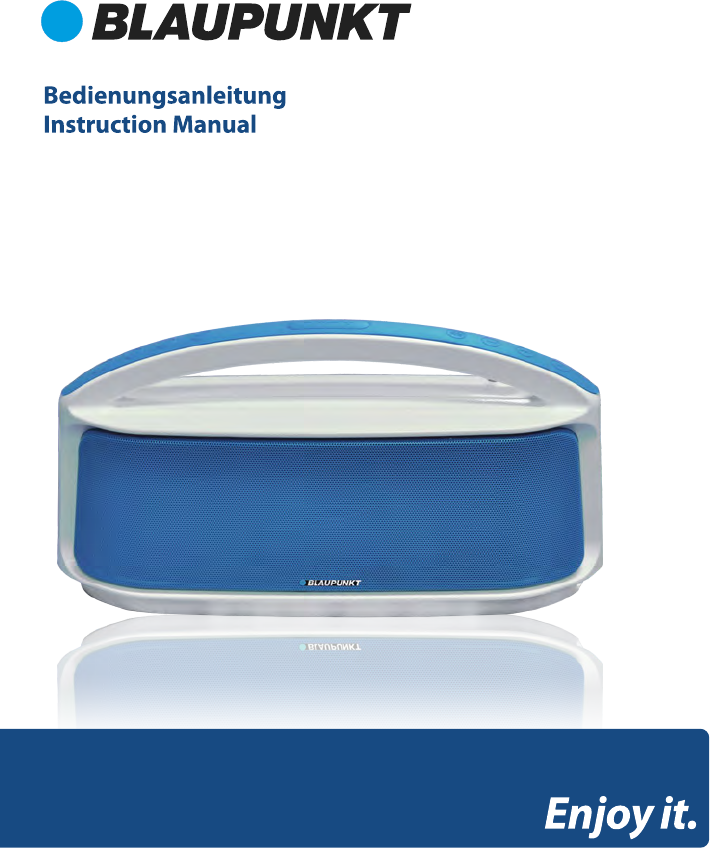

BT 55e Bluetooth Boombox mit USB Bluetooth Boombox with USB
BT 55e 2
BT 55e 3
BT 55e 4
BT 55e 5
BT 55e 6
BT 55e 7
BT 55e 8
BT 55e 9
BT 55e 10
BT 55e 11
BT 55e 12
BT 55e 13
BT 55e 14
BT 55e 15
BT 55e 16
BT 55e 17
BT 55e 18
BT 55e 19
BT 55e 20
BT 55e 21
BT 55e 22
BT 55e 23
BT 55e 24
BT 55e Important Safety Instructions Important Safety Instructions Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.
BT 55e Conformity Model number: BT 55e Description: Bluetooth Boombox with USB Brand name: Blaupunkt Responsible party: M3 Electronic GmbH Gutenbergstrasse 5, D-65830 Kriftel. Germany Hereby, Blaupunkt Competence Center Audio M3 Electronic GmbH, declares that this Class 1 equipment is in compliance with the essential requirement and other relevant provisions of Directive 1999/5/EC. Letter of conformity can be obtained from info@m3-electronic.de. Safety Instructions 1.
BT 55e 11. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product. 12. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth.
BT 55e Important: Due to several charging and discharging, the unit battery life will be affected and playback will also be shortened. We cannot guarantee the same playback time throughout the years and this is not included in our warranty and service. Remark: The speaker has built-in rechargeable battery, and support charging through the USB port. When you open the box, please arrange the first time fully charge for the unit.
BT 55e Warning This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. 1.
BT 55e LOCATION OF CONTROLS 10. Stop 11. LED Bluetooth (Blue） 12. LED charge (yellow) 13. LED display 14. FM antenna 15. AUX in socket 16. Power ON/OFF switch 17. USB playback 18. Micro USB charge port 1. Standby/Source 2. Program 3. Repeat 4. PRE+/USB+10 5. Volume down (-) 6. Volume up (+) 7. Play&Pause ( )/Pairing/Auto scan 8. Previous 9.
BT 55e BASIC FUNCTION Turn on the unit Slide the rear panel Power knob (16) to ON position. The LED display (13) will flash on as below. STANDBY MODE Select play source Press Source button (1) to turn on and select BLUETOOTH/RADIO/USB or LINE IN play mode. Press and hold the source button, the unit will power off. Note: a. The unit will go to STANDBY mode automatically after 15 minutes if there is no play mode selection, meanwhile, the LED display will turn off.
BT 55e BLUETOOTH OPERATION 1.Press SOURCE (1) to Bluetooth Mode. The LED display (13) will show “Bt” as below and the LED Indicator (11) will flash at slow speed. slow flash BLUETOOTH MODE 2. Press and hold PAIR (7) button about 3 seconds and the LED display (13) will show “PAIr” as below, and the LED Indicator (11) will flash with fast speed. fast flash BLUETOOTH PAIRING ·Press (8) or pause operation. (9) to select tracks, press /PAIR (7) button for play and 3.
BT 55e 5. Turn off the Bluetooth function in your mobile device to disconnect Bluetooth. slow flash BLUETOOTH DISCONNECT Note: ·The Bluetooth works best within a range within of 8-10 meters. ·If it is difficult to connect the Bluetooth boombox, try to turn off and afterwards turn on again the Bluetooth function in your device and clear off the misused Bluetooth listing on the menu. RADIO OPERATION 1.Press SOURCE (1) to radio mode.
BT 55e 6. Adjust the volume button - ( 5 ) or + ( 6 ) of the main unit to your desired level. Note: Extend the telescopic antenna (14) to its full length when listening to FM broadcasting and gently move the unit back and forth to get the best reception when listening to a FM program or place the unit in an open place. USB OPERATION 1. Press SOURCE (1) button to select USB Mode. USB MODE 2. Insert the USB audio file device into the USB port (17).
BT 55e LINE IN MODE OPERATION 1. Press SOURCE (1) repeatedly to select line-in mode. 2. Connect an audio cable to the AUX IN jack (15) on the rear panel from the boombox, and connect another terminal connect with audio source player for playing. AUX MODE SPECIFICATIONS GENERAL Built-in battery charge power requirement: AC adapter 100-240V ~50/60Hz DC 5V 1000mA (Micro USB to universal USB connector) Power consumption: 12 Watts Standby consumption: <0.5 Watts Weight: 1.
BT 55e This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. All rights reserved by Blaupunkt Competence Center Audio M3 Electronic GmbH.
