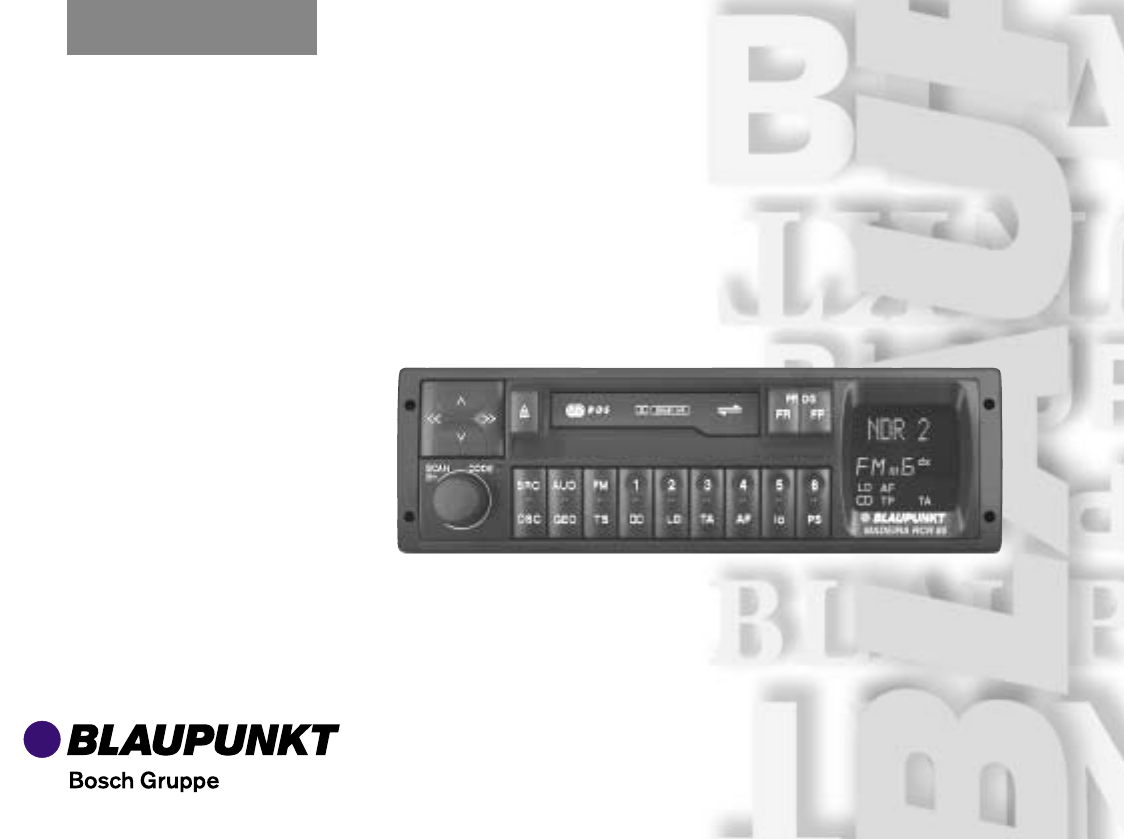

Radio / Cassette Madeira RCR 85 Operating instructions
PORTUGUES ESPAGÑOL Madeira RCR 85 d NEDERLAND ITALIANO FRANÇAIS 2 3 19 18 17 16 15 14 13 4 5 12 11 10 9 8 7 SVENSKA 1 6 3 ENGLISH DEUTSCH
Table of Contents Short description .......................... 17 Important information .................. 20 What you need to know! ....................... 20 Traffic safety ......................................... 20 Installation/connection .......................... 20 Anti-theft coding ........................... 20 Wrong code number entered ................ 20 Switching the code system on .............. 20 Restart following interruption of power supply ................................................
2 Rocker switch Changing the track Press simultaneously TR1-PLAY or TR2-PLAY in the display Off Seek tuning Volume Scan: Press for 1 second Extra functions: DSC mode: Select and program DSC settings. Coding: Enter code and confirm with . ITALIANO 6 Display Radio: Wave band Station name/ frequency Seek tuning sensitivity 3 Eject tape .
Cassette: Side 1 or 2 Dolby 7 1, 2, 3, 4, 5, 6 - preset buttons You can store 6 stations on each FM memory bank (I, II, III and T). To store a station: Press button during radio operation and hold it down until the radio resumes play again. To recall a station: Select the desired memory bank (press as many times as required). Then press the corresponding preset button. Extra function: Coding - Read chapter “Anti-theft coding” first. Buttons 1, 2, 3, 4 - To enter the fourdigit code.
+ Bass To modify a setting, • press AUD or GEO first and then change the setting using the rocker switch. The adjusted value is shown in the display. The last setting will be stored automatically. If the setting remains unchanged within 8 seconds, the display will shift back to the previous condition. DEUTSCH ENGLISH FRANÇAIS ITALIANO C Security LED (code-LED) Flashes as additional anti-theft protection when the car radio is turned off, provided you have activated this mode before under DSC - CODE-LED.
Important information Anti-theft coding What you need to know! The car radio comes standard with the code system deactivated. If the anti-theft coding system is on while the power supply to the unit is interrupted (e.g. theft, disconnecting the car battery), the set is electronically blocked. Then it may only be used again after the appropriate code number has been entered (see car radio passport). The radio will operate again as soon as you have entered the right code number.
• • Enter the code number given in the Blaupunkt car radio passport: Example: the code number is 2521. - Press preset button 1 twice, “2000” appears in the display. - Press preset button 2 five times, “2500” appears in the display. - Press preset button 3 twice, “2520” appears in the display. - Press preset button 4 once, “2521” appears in the display. To confirm the code number: Press the upper part of the rocker switch . Your car radio is now ready for operation.
“SEARCH” goes out as soon as the system has found an alternative frequency or after the frequency band has been scanned completely. Should the reception quality of the selected program become too bad, • tune into another program. REG - Regional The AF function can also be used to activate and deactivate the regional function. At some time of the day, larger radio stations split up their main program into regional program versions offering local information.
• Use the rocker switch to tune to a station (either automatically or manually). Press the desired preset button and hold it down. The radio will be muted and resumes play after approximately 2 seconds. The system will also send out a beep tone. Now the station is stored. The activated preset button is indicated on the display. Use the Preset Scan function to briefly sample all stations stored under FM or TS. • Press FM or TS.
Reception of traffic announcements with RDS-EON Sampling stations briefly with Radio Scan This function allows you to sample all stations for approximately 8 seconds each. To activate Scan: • press knob 1 for approximately 1 second. Then sampled frequency or the station name starts flashing in the display. During the actual searching process, “SCAN” is flashing. To continue listening to a sampled station/switch Preset Scan off: • briefly press knob 1.
A default value is set ex factory for the volume of traffic announcements and the warning beep. You can change this default setting with the DSC function (see “DSC programming, ARI (TA)”). • Insert a tape. Fast forward • Press FF (fast forward). At the end of the tape, the set will switch to the other track and start playing it. To stop fast forward: • press FR. Insert tape with side A or 1 facing up, the open side facing to the right The tape will be played in the direction used last.
DSC programming Autoreverse Changing the audio source with SRC If, while a tape is playing, you wish to switch to the other track of that tape: • press FR and FF simultaneously. At the end of the tape, the set will automatically switch to the other track. The display will show “TR1-PLAY” for track 1 or A and “TR2PLAY” for track 2 or B. Note: If there is too much tension on the tape during playback, the set may switch to the other track by itself. In this case check the condition of the tape.
To match the display colour to the dashboard illumination. Select orange or green. LOUD Loudness - to boost the less perceptible, deeper tones for a more natural sound impression. To leave the DSC mode/store the setting, • press DSC. LOUD 1 - low boost LOUD 6 - strong boost Survey of DSC default settings BEEP Acknowledgement tone for functions requiring a push of more than 2 seconds. Adjust the volume of that tone between 0 and 9 (0 = OFF).
