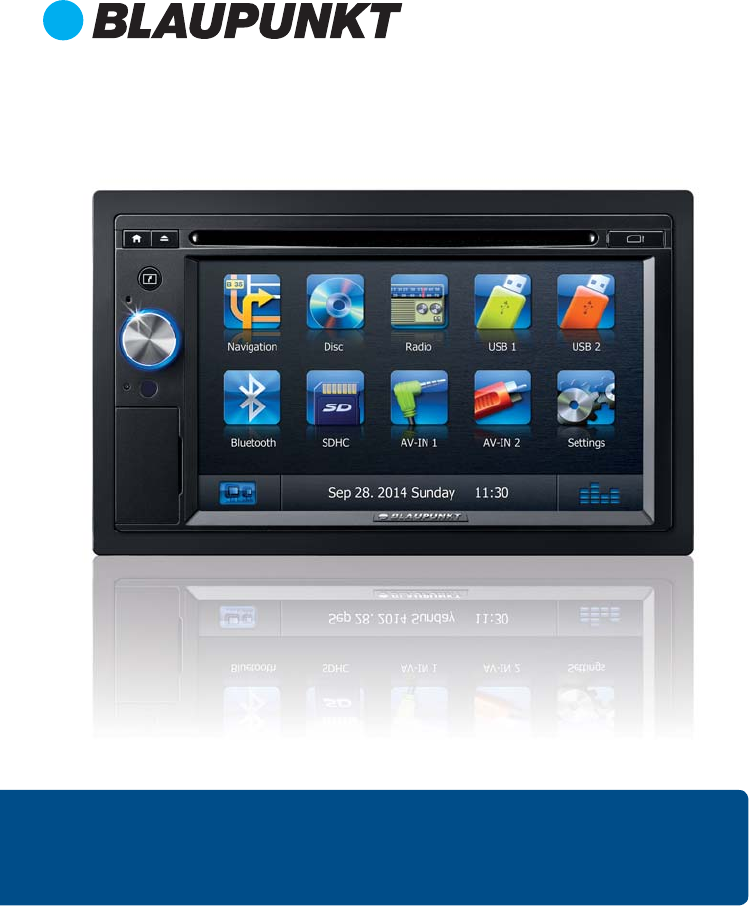

SERIES 840 / 845 Multimedia Navigation Enjoy it.
Controls – Device 1 14 2 13 3 4 5 12 6 7 8 11 9 10 1 button (Eject) Eject a DVD/CD 2 button Short press: Call up main menu In the main menu: Call up menu of active source Long press: Call up Bluetooth® function or switch off display. Function can be selected in the settings menu.
Controls – Remote control I 15 16 48 17 47 J 45 K 46 18 19 20 44 21 22 43 42 23 24 L 41 25 M 40 39 26 38 27 28 N O 37 P 29 Q 30 31 36 R 32 33 34 S 35 T U V W ? SRC button @ A B C D E F G H Select source button Eject a DVD/CD INFO button Show information on the display MENU button Call up DVD menu ZOOM button Zoom in on image area PIC button Adjust the display brightness button Slow-motion playback button Quit playback BAND button Select waveband/memory bank button Call up main
Contents Safety notes ................................................................ 5 Symbols used ...........................................................................5 Road safety ................................................................................5 General safety notes ..............................................................5 Declaration of conformity....................................................5 Cleaning notes ...........................................................
Safety notes | Cleaning notes | Disposal notes Safety notes The car sound system was manufactured according to the state of the art and established safety guidelines. Even so, dangers may occur if you do not observe the safety notes in these instructions. These instructions are intended to familiarise you with the most important functions. Detailed information can be found on the Internet under www.blaupunkt.com. • Read these instructions carefully and completely before using the car sound system.
Scope of delivery | Startup Scope of delivery The scope of delivery includes: • Car sound system • Remote control (incl.
Startup | Radio mode Note: The figures used in these instructions are intended to facilitate the explanations and details may deviate from your device. Setting the reception area This car sound system is designed for operation in different regions with different frequency ranges and station technologies. The factory default of the reception area is "Europe". If you operate the car sound system outside of Europe, e.g.
Radio mode Scanning stations You can use the scan function to play all the receivable stations of the current waveband for a few seconds. 쏅 In radio mode, press the [ ] button. The seek tuning searches for stations in the current waveband. Each receivable station is played for a few seconds in the process. 쏅 Pressing the [ ] button again selects the currently scanned station and plays it back.
Radio mode | Navigation Traffic information In the reception region Europe, an FM station can identify traffic announcements via an RDS signal. If priority for traffic reports is switched on, a traffic report is automatically switched through, even if the car sound system is currently not in radio mode. Note: The volume is increased for the duration of the switched-through traffic announcement. You can adjust the minimum volume for traffic announcements.
Navigation Entering a destination Destinations can be entered in different ways: Via the address or as point of interest from the database of points of interest. Points of interest can be sights, museums, stadiums, petrol stations. With every character entered, the entry in the input line is automatically completed. 쏅 If the name of the desired destination is displayed in the address line, press the [ ] button. The selected destination is displayed on the map Address 쏅 Open the navigation menu.
Navigation 쏅 Press Find Places. The point of interest menu is displayed. 쏅 You can select a point of interest from one of the four predefined categories Petrol Station, Parking, Restaurant and Accommodation or start a separate search. 쏅 For example, press on Petrol Station to quickly find a petrol stations. A list of petrol stations in the vicinity of the vehicle is displayed. The petrol stations are sorted by distance to vehicle.
Navigation | DVD/CD/USB/SDHC/iPod media playback The map settings are displayed. Changing route options during route guidance ] button. 쏅 During a route guidance, press the [ 쏅 Press Route Settings. The route settings are displayed. 쏅 Change the settings, if necessary. 쏅 Press Back. The route guidance is displayed again. Map Settings With the map settings, you can adjust the view mode (2D or 3D), the viewing angle of the map, the colours and the display of buildings and points of orientation on the map.
DVD/CD/USB/SDHC/iPod media playback • Blaupunkt cannot guarantee the flawless function of copy-protected DVDs/CDs and all DVD/CD blanks, USB data carriers and SD cards available on the market. Note the following information when preparing an MP3/ WMA data carrier: • Naming of tracks and directories: Max. 32 characters without the file extension ".mp3" or ".
DVD/CD/USB/SDHC/iPod media playback iPod/iPhone via USB You can connect numerous iPod® and iPhone® models to the car sound system via the USB ports and control the audio playback from the car sound system. 쏅 Touch [ ] to display the second page of the playback menu. The second page of the playback menu is displayed. Note: A list of compatible iPod® and iPhone® models is located at the end of these instructions. Blaupunkt cannot guarantee the flawless function of other iPod® and iPhone® models.
DVD/CD/USB/SDHC/iPod media playback [ ] Open selected folder or start titles. - Or Tap on the name of the folder or track. The folder is opened or the track is started. [ ] Continue playback only iPod®/iPhone® ] Display keypad to directly enter the number [ of the desired title. ] Exit the folder/file list. [ ] Display equalizer. [ After starting a title, the playback menu is displayed. [ ] Start MIX random track play and end it again.
DVD/CD/USB/SDHC/iPod media playback Video playback from DVD/CD, USB or SDHC Second page of playback menu. 쏅 Select the desired source via the main menu. If the playback starts with audio or image files, 쏅 press the [ ] button to change to the video playback. The folders of the data carrier containing movie files are displayed. [ [ [ [ [ Note: Folders and titles are selected and started as described under audio playback. If you selected a movie, the playback is started.
Bluetooth mode Bluetooth mode Registering Bluetooth devices The Bluetooth® function allows registering cell phones and media playback devices with the car sound system. When you register a cell phone with the car sound system, you can make phone calls with the built-in handsfree function. You can access the lists of dialled numbers and the phone book of the registered cell phone.
Bluetooth mode If a call is coming in, the call menu is displayed. Audio playback - Android cell phone With the "Android Music Player" app from Blaupunkt, music files stored on an Android cell phone can be divided into certain categories with the help of ID3 tag information. This allows you to quickly and conveniently select and play back music tracks across different categories. For this purpose, the app must be installed on the Android cell phone.
Bluetooth mode | Rear Seat Entertainment Bluetooth settings Rear Seat Entertainment (RSE) In the options menu for Bluetooth®, you can make the basic settings for the Bluetooth® mode. 쏅 In the Bluetooth® menu, press the [ ] button. The options menu is displayed. The device features outputs to connect two external monitors and audio outputs for the rear area of the vehicle.
External audio/video sources | Sound settings External audio/video sources The menu for fader and balance is displayed. This device features two external AV inputs for audio and video playback: • AV-IN 1 is located under the cover at the front of the device. • AV-IN 2 is implemented as a cinch socket on a cable at the rear of the device. You can specify the installation location of the port during the installation of the device. Danger! Increased risk of injury from connector.
Basic settings Basic settings General In the settings menu, you can adjust the basic settings for the different functions of the device to your requirements. 쏅 In the main menu, press the Settings button. The settings menu is displayed, the General submenu is activated. 쏅 Call up the submenus with the buttons in the lower area of the settings menu.
Basic settings Time Language The following settings are possible: Date – Set the date Clock mode – Selection between 12 and 24-h mode Time – Set the time The following settings are possible: On screen display – Language for the user interface of the device. DVD audio – The audio playback of DVDs is started in the language defined here. DVD subtitle – The subtitles of DVDs are shown in the language defined here. Disc menu – The DVD menu is displayed in the language defined here.
Basic settings | Useful information DVD Useful information Warranty We provide a manufacturer's warranty for products bought within the European Union. For devices purchased outside the European Union, the warranty terms issued by our respective responsible domestic agency are valid. The warranty terms can be called up from www.blaupunkt.com. Service The following settings are possible: Set password – Define a password if you want to use the parental controls.
Connection diagram 24
Appendix Supported iPod/iPhone devices Our product can support below listed iPod/iPhone generations: • iPod nano (7th generation) • iPod nano (6th generation) • iPod nano (5th generation) • iPod classic • iPod touch (5th generation) • iPod touch (4th generation) • iPhone 5s • iPhone 5c • iPhone 5 • iPhone 4s • iPhone 4 • iPhone 3GS "Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone respectively, and has been certified by the dev
