Installation Sheet

3
Subject to technical modifications
without notice. © 2010

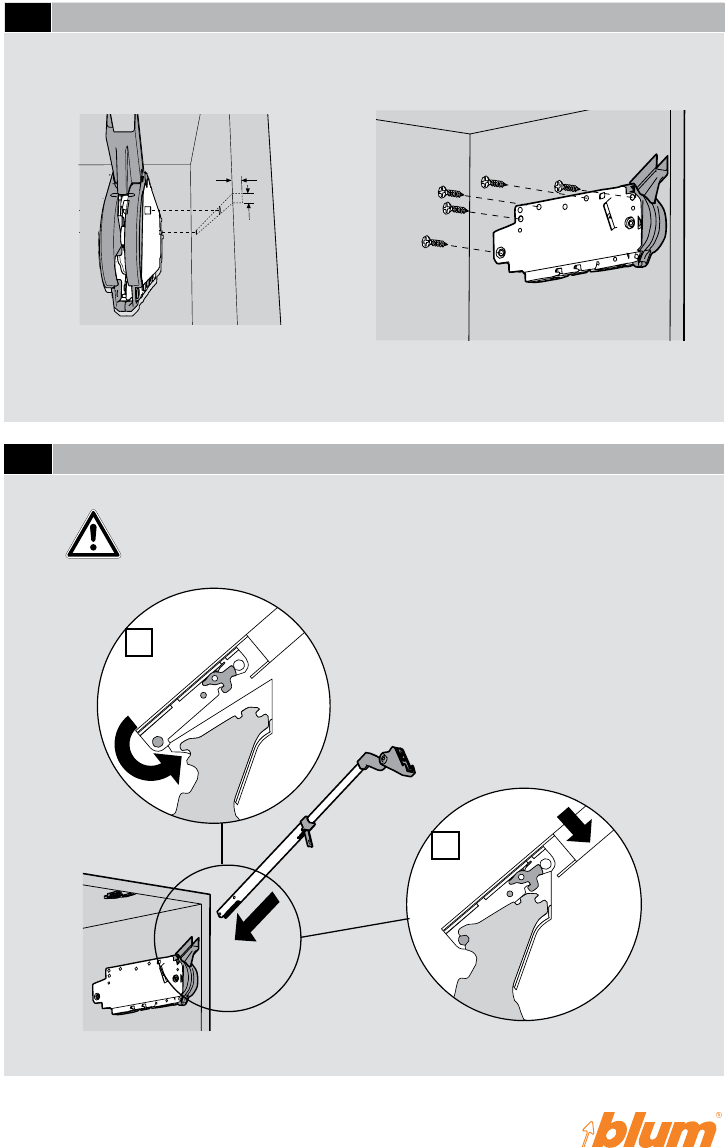

Align the lift mechanism in the cabinet using the 5 mm locator pins and attach the mechanism with the five
wood screws provided.
2
Attaching the lift mechanism
#7 x 35 mm (1-3/8") wood screws (qty 5)
3
Attach the telescopic arms
WARNING: Risk of injury from spring loaded arm.
1
2
Attach telescopic arms by clipping them on in
the fully upright position.
min 5
5
