Installation Sheet

ManualsBrandsBlum ManualsLift SystemsBlum AVENTOS HF Face Frame Bi-Fold Cabinet Lift Mechanism Power Factor of 780 - 1400

1

2

3

4

5

6

7

8

9

5

Subject to technical modiﬁcations

without notice. © 2010

Reveal

B

12.7

Reveal table

6 5 4 3

3 4 5 6

B Bore distance

Part no.

CLIP top hinge

78Z5530T

Mounting plate

175H6000

7

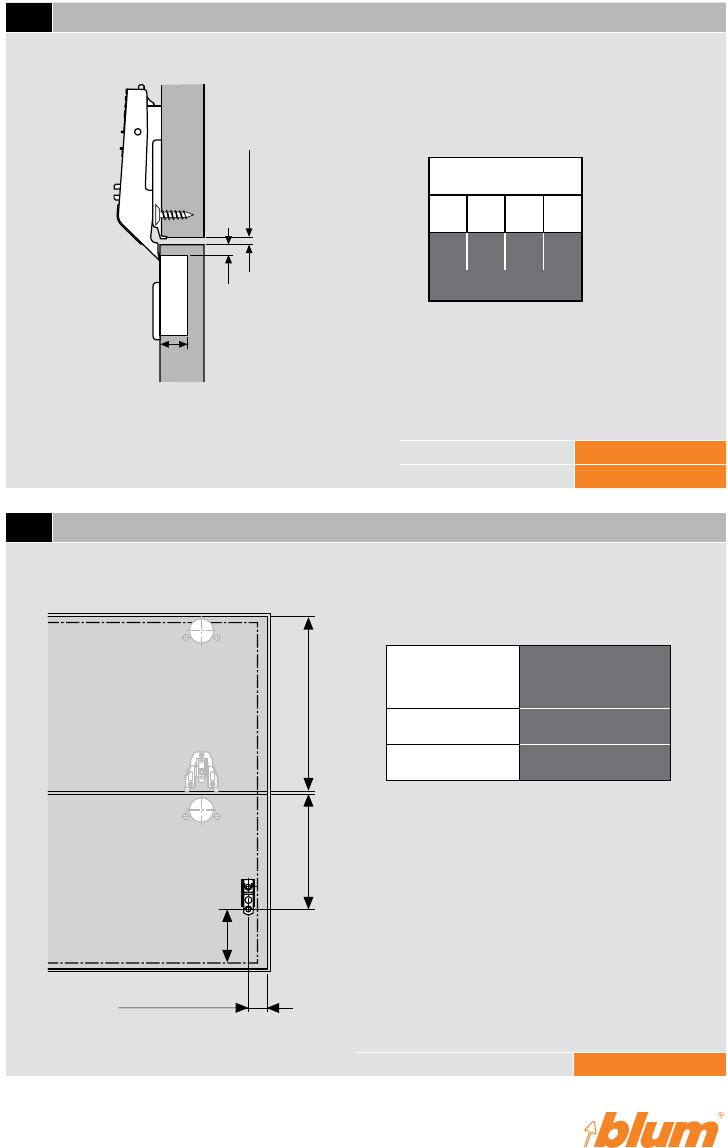

Bottom door hinge planning

8a

NOTE: For ﬁve-piece door mounting

speciﬁcations, see page 6

Attaching the telescopic arm mounting plates

12.5

+

Overlay

X

TDH

17

min.

Top door

height (TDH)

X

231 to 271

TDH x .5 + 68

272 to 531

TDH x .5 + 45

Part no.

175H5400

Telescopic arm mounting plate
