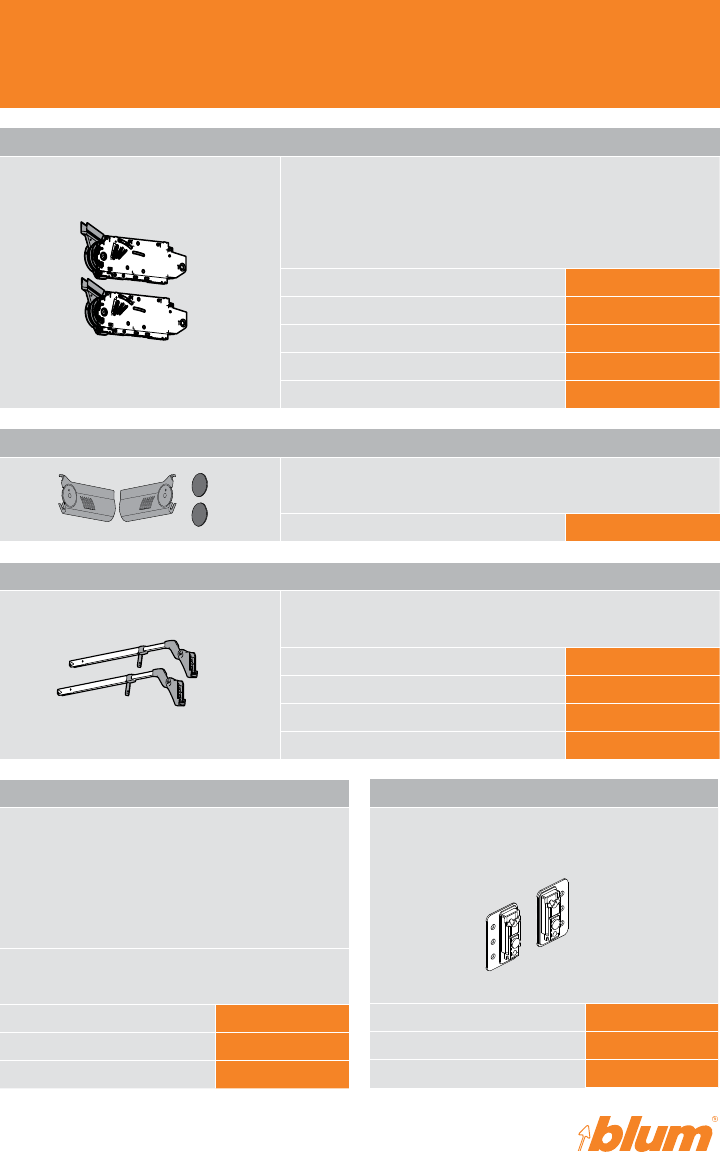

AVENTOS HF

Wood / wide aluminum door application

Telescopic arm set

■ Telescopic arm (qty 2)

Cabinet heights Part no.

479 (18-7/8") — 558 (22")

20F3200

558 (22") — 686 (27")

20F3500

686 (27") — 889 (35")

20F3800

889 (35") — 1067 (42")

20F3900

Cover plate set

■ Right and left cover plate

■ Non-handed cover cap (qty 2)

Part no.

Cover plate set

20F8000.NA

Lift mechanism set

■ Lift mechanism (qty 2)

■ #7 x 35 mm (1-3/8”) wood screw (qty 10)

Power factor Part no.

85 — 230 (1 lift mechanism req.)

20F2200.N5

231 — 470

20F2200.N5

471 — 880

20F2500.N5

780 — 1440

20F2800.N5

1401 — 2300 (3 lift mechanisms req.)

20F2800.N5

Wood or wide alum door hardware set

■ CLIP top 120° hinge (qty 2)

■ COMPACT 33° hinge (qty 2)

■ CLIP top bottom door hinge (qty 2)

■ COMPACT mounting plate (qty 2)

■ Face frame adapter (qty 4)

■ Telescopic arm mounting plate (qty 2)

NOTE: Three hinges and mounting plates required

for cabinet widths over 1219 (48")

Hardware set

78Z5530TA5

Inst. screw for wood doors

606N or 606P

Inst. screw for wide alum doors

7072A

Mounting plate with bracket set

■ Left and right mounting plate with bracket

■ For large overlay ﬁve-piece doors

Part no.

Mounting plate w/ bracket set

175H5F00.01

Inst. screw for wood doors

606N or 606P

Inst. screw for wide alum doors

7072A

Summary of content (12 pages)

PAGE 1
AVENTOS HF Wood / wide aluminum door application Lift mechanism set ■■ Lift mechanism (qty 2) ■■ #7 x 35 mm (1-3/8”) wood screw (qty 10) Power factor Part no. 85 — 230 (1 lift mechanism req.) 20F2200.N5 231 — 470 20F2200.N5 471 — 880 20F2500.N5 780 — 1440 20F2800.N5 20F2800.N5 1401 — 2300 (3 lift mechanisms req.) Cover plate set ■■ Right and left cover plate ■■ Non-handed cover cap (qty 2) Part no. 20F8000.
PAGE 2
Assembly WARNING Risk of injury from spring-loaded arm Do not push lever arm down or leave in the down position Remove mechanism before installing or removing cabinet 1 Locating pin locations TR Ø5 192 37 NOTE: Face frame cabinets must be blocked out flush with the frame Top door height Y Face frame Top door height (TDH) Y 231 to 271 TDH x .6 - 28 + TR 272 to 531 TDH x .
PAGE 3
2 Attaching the lift mechanism Align the lift mechanism in the cabinet using the 5 mm locator pins and attach the mechanism with the five wood screws provided. min 5 5 #7 x 35 mm (1-3/8") wood screws (qty 5) 3 Attach the telescopic arms WARNING: Risk of injury from spring loaded arm. Attach telescopic arms by clipping them on in the fully upright position. 1 2 Subject to technical modifications without notice.
PAGE 4
Assembly 5 Small overlay top door hinge planning CLIP top hinges Overlay B Overlay table 13* 14 15 16 17 3 3 4 5 6 B Bore distance 12.7 * Bore at 3 then adjust 1 Part no. 70T5580 Mounting plate 175H6000 Overlay Large overlay top door hinge planning COMPACT hinges B 6 CLIP top hinge Overlay table 1-1/4” 3 Bore distance 1/2" Part no. 4 COMPACT hinge 32.4630 Mounting plate 130.1130.02 Subject to technical modifications without notice.
PAGE 5
Bottom door hinge planning Reveal 7 B Reveal table 6 5 4 3 3 4 5 6 B Bore distance 12.7 Part no. 78Z5530T 175H6000 CLIP top hinge Mounting plate 8a Attaching the telescopic arm mounting plates Top door X TDH height (TDH) 231 to 271 TDH x .5 + 68 272 to 531 TDH x .5 + 45 17 min. X NOTE: For five-piece door mounting specifications, see page 6 12.5 + Overlay Part no. Telescopic arm mounting plate Subject to technical modifications without notice.
PAGE 6
Assembly 8b Attaching the telescopic arm mounting plate with bracket for five-piece doors Standard mounting plate works ü 12.5 more than 6 Standard mounting plate does not work 12.5 less than 6 ü Use mounting plate with bracket when panel is < 6 mm from screw 12.5 19 Part no. Telescopic arm mounting plate with bracket 6 175H5F00.01 Subject to technical modifications without notice.
PAGE 7
9 10 Attach the top door to the cabinet Attach the bottom door Attach bottom door to the top door and attach the telescopic arms 1 Subject to technical modifications without notice.
PAGE 8
Assembly 11 Adjust tension of the mechanism 2 1 Close and flush doors to cabinet. Open and close door to test closing force. Use a screw gun and a #2x2 POZI driver bit to adjust the lift mechanism to the desired tension. Test door again and repeat until desired function is achieved. Tension adjustment should be the same on both lift mechanisms. 12 Finalizing the door adjustments 1 ± 3 mm 2 ± 2 mm + 3/- 2 mm ± 2.5 mm 1.
PAGE 9
13 Adjust and lock telescopic arms 1 2 Open door enough to lock levers 1. Close and flush doors to cabinet. While pressing on the top door, pull the bottom door open one inch. 14 2. Slightly open door and lock the telescopic arms into position using the levers as shown. Attach covers Attach the left and right cover plates to each lift mechanism then attach the symmetrical cover caps Subject to technical modifications without notice.
PAGE 10
Removal WARNING Risk of injury from spring-loaded arm Do not push lever arm down or leave in the down position Remove mechanism before installing or removing cabinet 1 Remove covers 2 Detaching the telescopic arms Warning: Risk of injury from spring-loaded telescopic arm! 1 Maintain control of telescopic arm while releasing the CLIP mechanism. 2 Release both arms and gently rest the top door on the loose arms. The tension will hold the doors up for the next step.
PAGE 11
3 Removing the doors 11. Hold the bottom door while unclipping the bottom hinges. 22. Hold the top door while detaching the top hinges. Simply unclip them if using the CLIP top hinges or loosen them if using COMPACT. 4 Removing the telescopic arms Using a screwdriver, depress the release tabs to remove telescopic arms. If transporting the cabinet to the jobsite, stop here. Lift mechanisms stay inside the cabinet for easy transport. 2 1 Subject to technical modifications without notice.
PAGE 12
Other information Inch Door clearance above cabinet /32 .031 1 /16 .063 1.5 /32 .094 2 1 /8 .125 3 /32 .156 4 /16 .188 5 /32 .219 5.5 /4 .25 6 /32 .281 7 /16 .313 8 /32 .344 9 /8 .375 9.5 /32 .406 10 /16 .438 11 /32 .469 12 /2 .5 13 /32 .531 13.5 /16 .563 14 /32 .594 15 /8 .625 16 /32 .656 17 /16 .688 17.5 /32 .719 18 /4 .75 19 /32 .781 20 /16 .813 20.5 /32 .844 21 /8 .875 22 /32 .906 23 /16 .938 24 /32 .969 24.
