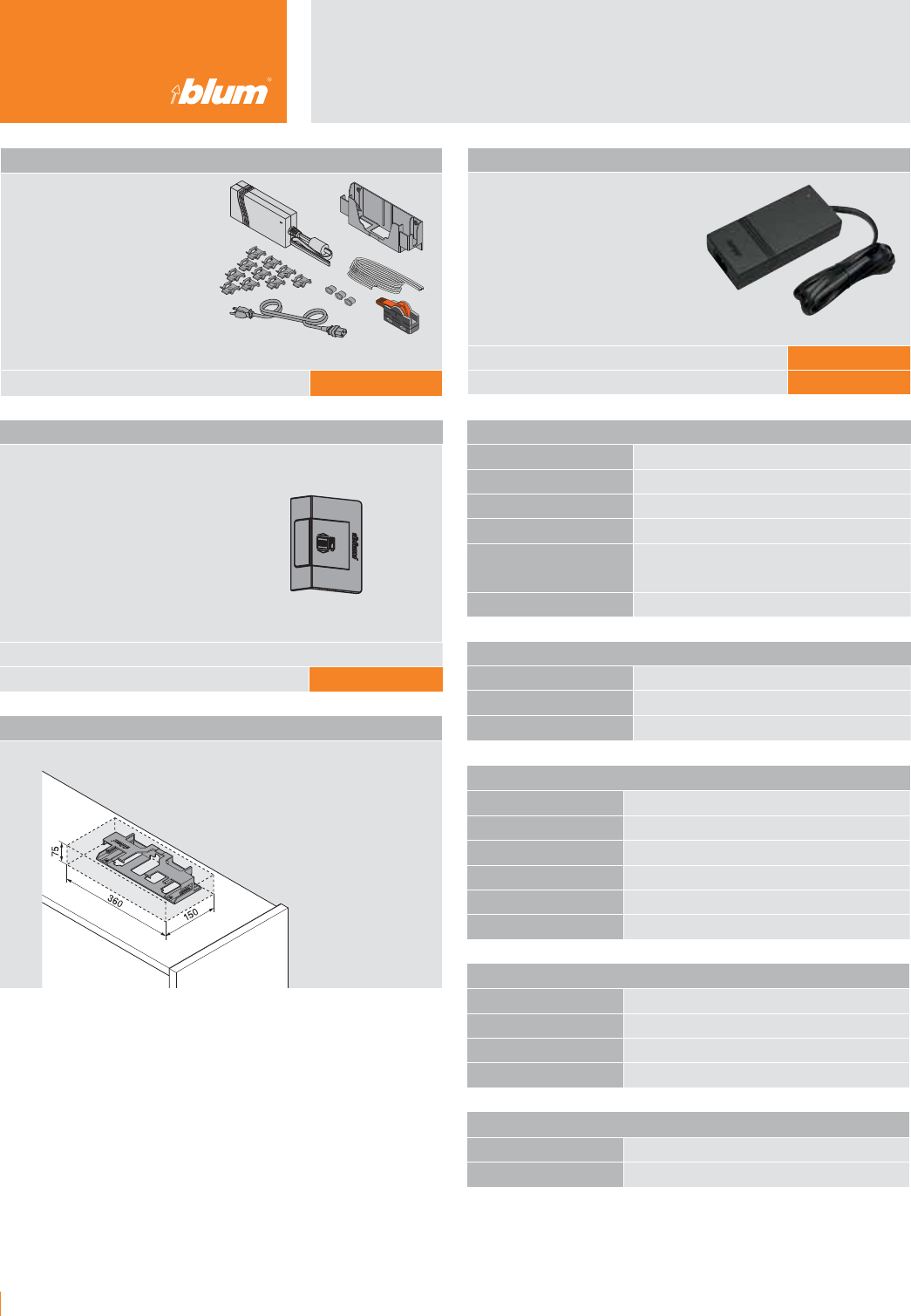

SERVO-DRIVE switch
For adding additional activation switches to a SERVO-DRIVE for
AVENTOS application.
▀ Up to six switches can be
added per drive unit
NOTE: A switch can only be synchronized to one drive unit
Part no.
SERVO-DRIVE switch
21P5020
Electrical ComponentsSERVO-DRIVE for
AVENTOS
Power supply set
Set includes:
▀ Power supply
▀ Wall mount bracket
▀ Three-prong power cord
▀ Cable connector
▀ Cable end protector (qty 3)
▀ Cable clips (qty 10)
▀ 19 feet universal cable
▀ Technical information
Power supply set
Z10NE03UG10
Part no.
Space requirements and safety distance for power supply
A safety distance of 30 mm must be maintained for air circulation
SERVO-DRIVE power supply components
Supplies power to the drive units
▀ Energy Star Level VI
▀ UL certified
▀ Can power up to 16 drive units
▀ Connect to switched GFCI outlet
▀ Cable length is six feet
NOTE: Three-prong power cord required Part no.
Power supply
Z10NE030G
Three-prong power cord
Z10M200U
Input specifications
Input voltage 100-240 VAC
Input frequency 50-60 Hz
Input current 0.6 A
Inrush current 100 A maximum at 240 VAC
Protection class Class I
Earth leakage current 3.5 mA maximum
Output specifications
Output voltage 24 VDC
Output power 24 W continuous
Minimum load None
Over voltage protection At 33 VDC
Overload protection 10.5 A hiccup trip and restart mode with
auto recovery
Short circuit protection Continuous
General specifications
Efficiency ≥ 87%
Switching frequency 65 kHz typical
No load loss (standby) < 0.075 W
Energy Star Level VI
Safety / Approvals
EN / IEC 60950, 60335-1
UL 60950-1
Environmental information
Operating temperature
32° F‒104° F
Storage temperature -4° F to 185° F
Protection IP40
