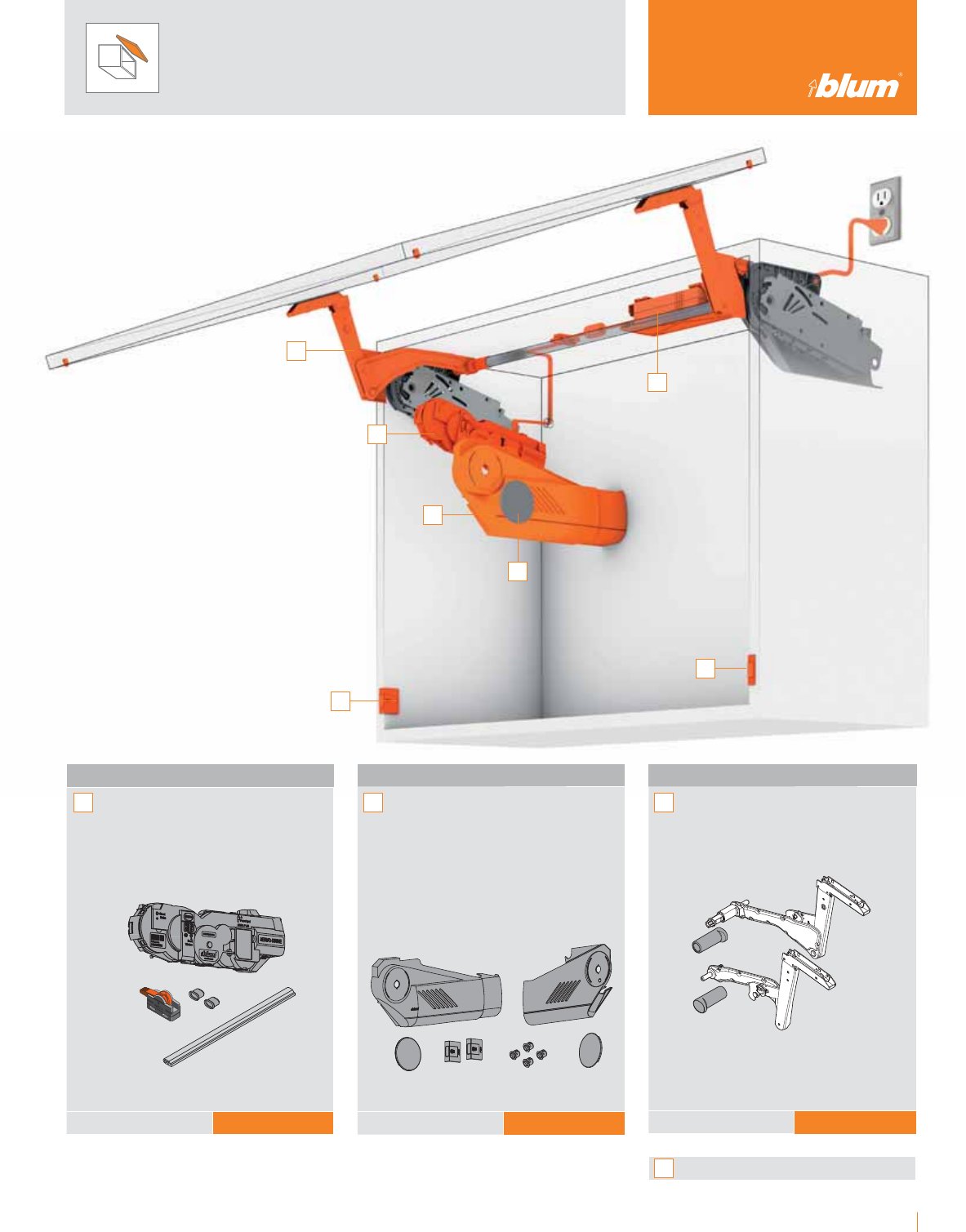

Ordering Information SERVO-DRIVE for
AVENTOS HS
NOTE: For additional AVENTOS HS components and installation instructions,
please see AVENTOS brochure (LIT. AVT1000)
SERVO-DRIVE set
Set includes:
▀ Drive unit
▀ 60" universal cable
▀ Cable connector
▀ Cable end protector (qty 2)
Part no.
SERVO-DRIVE set
21FA000
Cover set
Set includes:
▀ SERVO-DRIVE cover plate (left)
▀ Cover plate (right)
▀ Non-handed cover cap (qty 2)
▀ SERVO-DRIVE switches (qty 2)
▀ Ø5 mm Blum distance bumper (qty 4)
▀ Color: gray
Part no.
Cover set
21S8000.NA
Arm assembly set
Set includes:
▀ SERVO-DRIVE arm assembly (left)
▀ Standard arm assembly (right)
▀ Stabilizer rod cover cap (qty 2)
Part no.
Arm assembly set
21S3500.01
A B C
NOTE: Stabilizer rod cutting dimension
for SERVO-DRIVE application is length =
interior cabinet width minus 164 (6-7/16")
BB
B
B
B
C
A
D
Power Supply Set - see page 12
D
