Drawers, Hinges & Assembly Devices
DRAWER ASSEMBLY DEVICES
Description Material Blum No. Code
Universal Drilling Template Nylon/Steel/Aluminium/Zinc
65.1000.01 1-285-675
Description Material Blum No. Code
Add on Part for SPACE CORNER Steel/ Hardened
65.1106 1-285-677

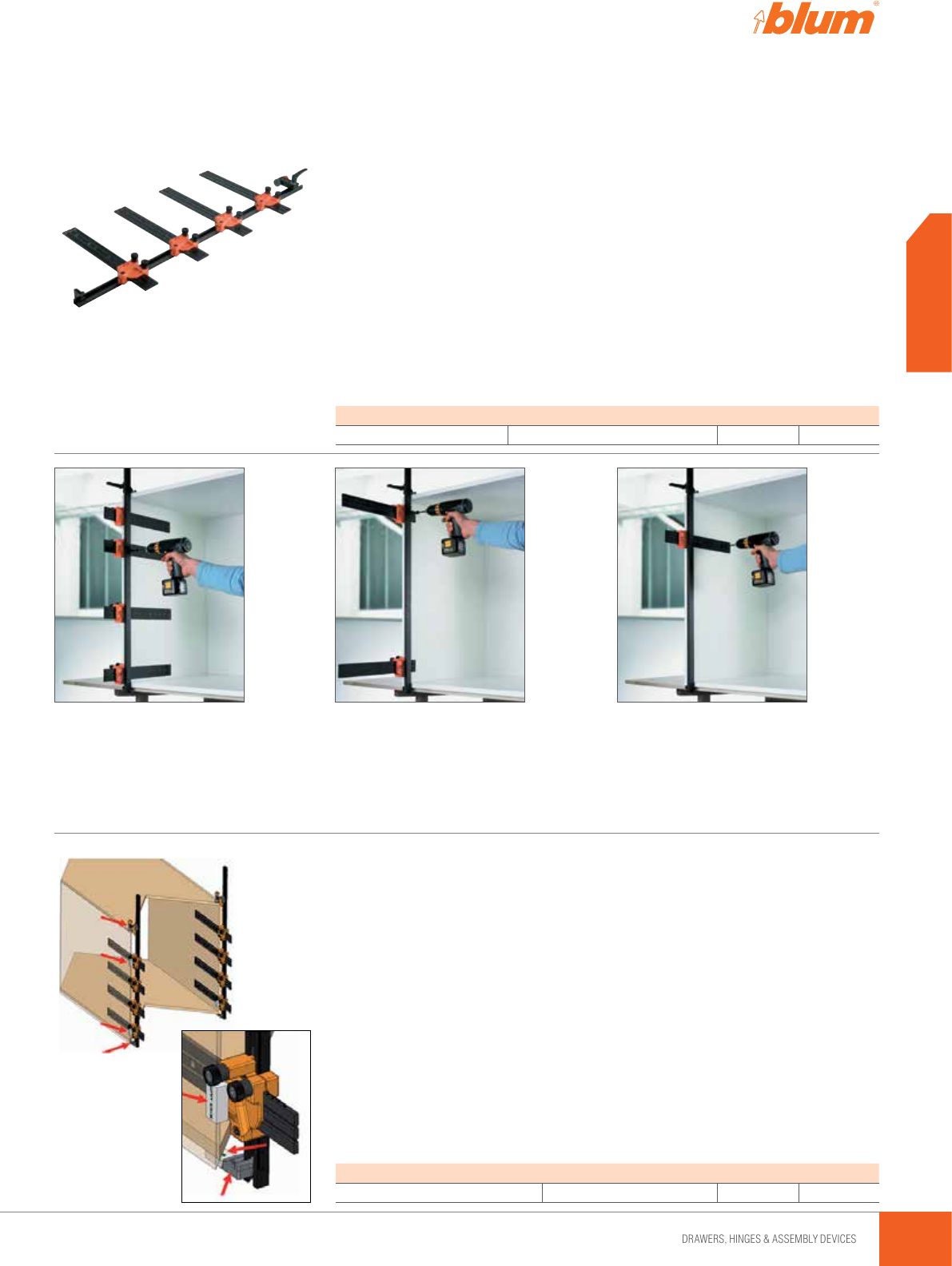

UNIVERSAL DRILLING TEMPLATE
• Template for pre-drilling the fixing positions for cabinet profiles, lift mechanisms,
mounting and adapter plates
• The template can be used with assembled and unassembled cabinets
• Set the height and depth position using the calibration
• Suitable for overlay and inset applications
• Includes drilling depth stop
• Includes 5mm (system screws) and 2.5mm (wood screws) reducing bush
• Assembly on marking line possible
SPACE CORNER APPLICATION
• For pre drilling the fixing positions of cabinet profiles for SPACE CORNER in combination with the universal
drilling template part number 1-285-675
