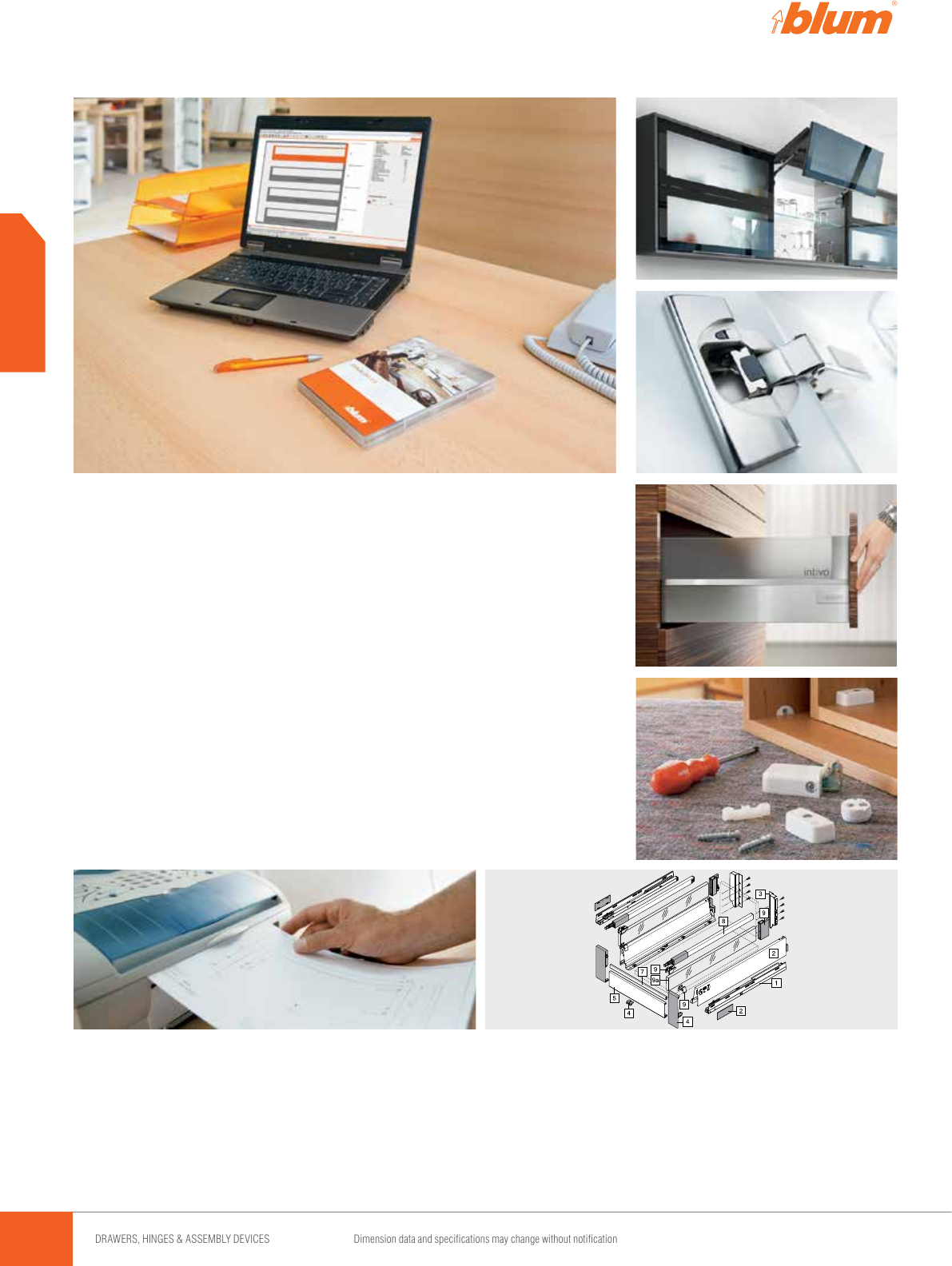

DYNALOG - CABINET PLANNING AND MORE

• DYNALOG, the Blum planning and ordering software, enables flexible cabinet planning and easy

ordering of Blum fittings.

• DYNALOG can be learned quickly and is easy to operate even if you only use it occasionally.

Automatic collision checks ensure that designs are feasible and do away with trial applications

• Using DYNAPLAN it is possible to export data to various CAD/CAM and further edite them there, so

you can get the best out of both programs.

DYNALOG - ADVANTAGES AT A GLANCE

• Easy to plan cabinets, collision check included

• Easy to choose fittings, installation check included

• Easy to manage cabinets

• Gives you complete data for manufacturing and ordering

• Easy to place and manage orders

• Cross-referencing facility to Lincoln Sentry Codes

• Using the DYNAPLAN interface, data export to various CAD/CAM programs such as AutoCAD

is possible

• Open common file formats for re-use in other programs: xls, csv, doc, html, dxf, dwg, sat, igs, x _ t, jpg, etc.

DYNALOG

Cabinet Planning & More
