DRAWER ASSEMBLY DEVICES

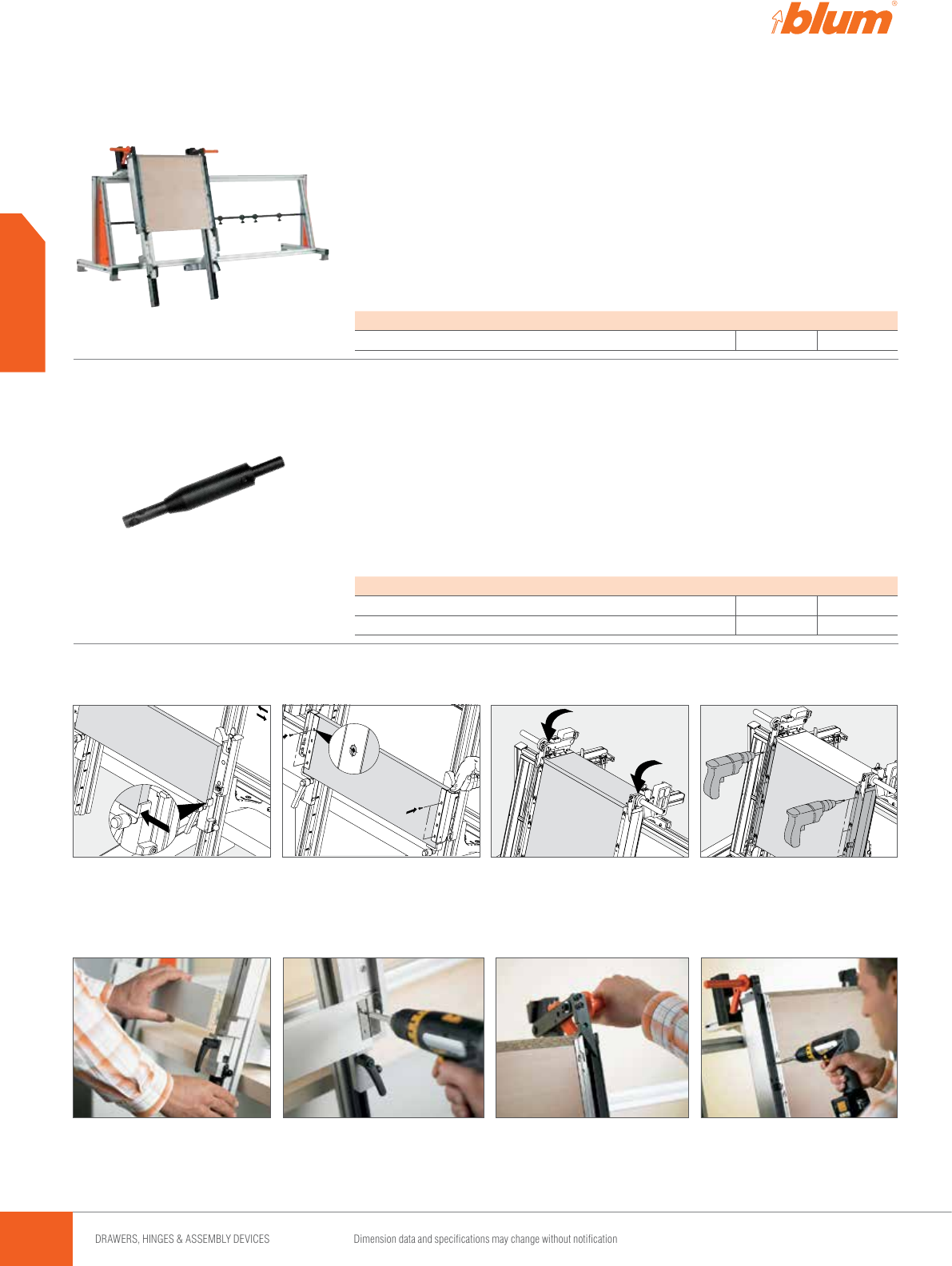

BOXFIX M
• Designed to assemble TANDEMBOX
• Drawer side lengths 270 to 650mm
• Cabinet widths 275 to 1200mm
• Back heights up to 350mm
• BOXFIX M includes:
• - Centre Bit x 1
• - Width Stop x 1
CENTRE BIT
Description Blum No. Code
BOXFIX M
ZMM.3350 1-343-005
Description Blum No. Code
Centre Bit
MO1.ZZ03 2-315-905
Replacement Bit 2.6mm
M01.ZZB3 2-315-910
Nominal length and pull-out width
are set.
Assembly of drawers and high fronted pull-outs
Wooden back fixing brackets are
attached to the wooden back.
Back, base and drawer sides are
inserted and secured.
The drawer base is attached to the
TANDEMBOX drawer sides using
screws.
Precision technology increases efficiency
1) Width setting. 2) Fix back fixing bracket. 3) Fix parts. 4) Screw on.
