Drilling for TANDEM-locking

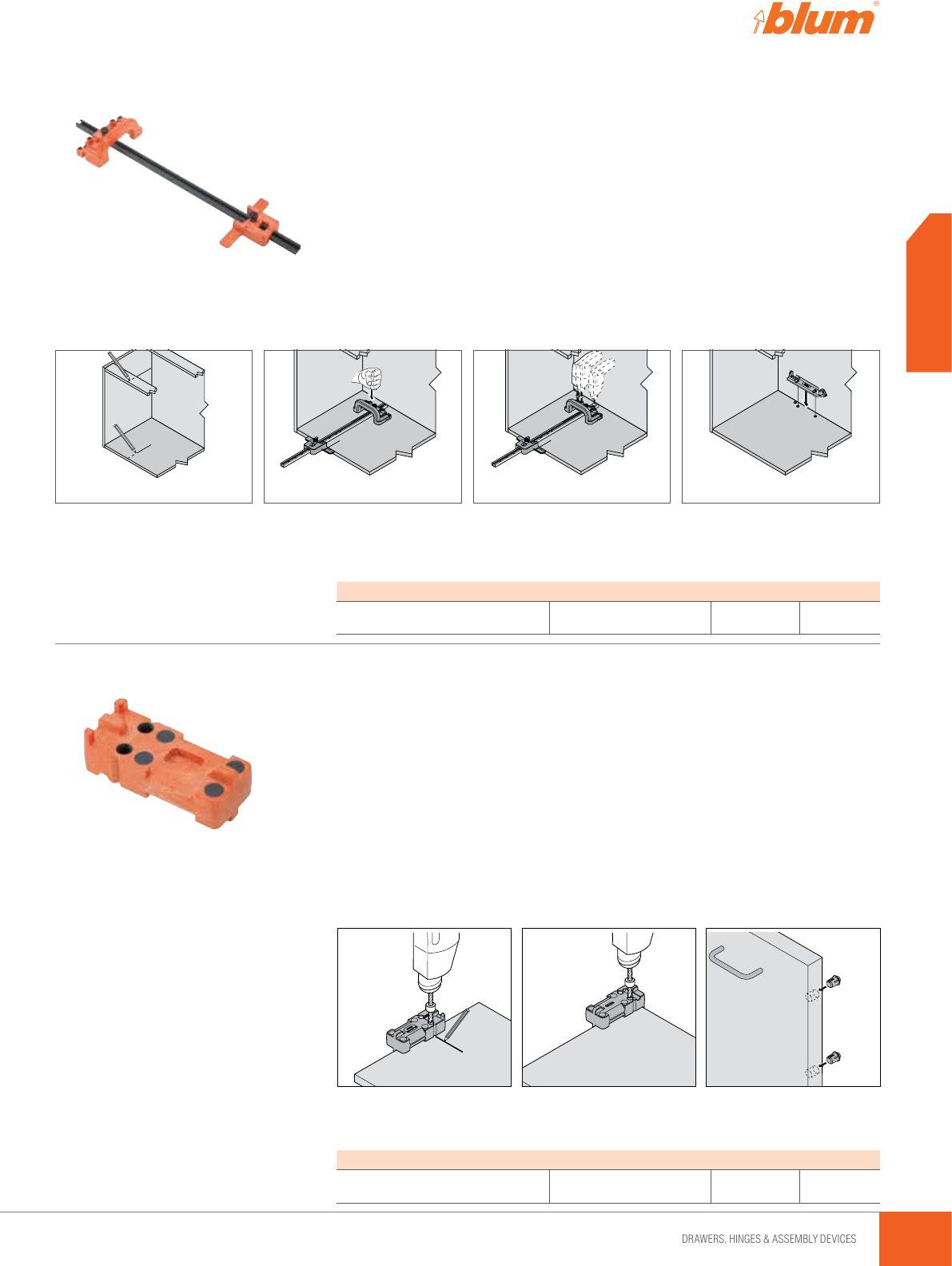

DRILLING TEMPLATE FOR SERVO-DRIVE BRACKET PROFILE

ATTACHMENT

• Template for marking or pre-drilling the fixing positions for the SERVO-DRIVE bracket profile adapter

• The drilling template can be attached to an assembled and unassembled cabinet as well as to individual

components (bottom panel/top panel/cross bar)

• Assembly on a marking line

• Suitable for TANDEMBOX, MOVENTO and TANDEM

• Includes 1 x drilling depth spacer 10mm

• Includes 1 x marking template 10mm

Description Material Blum No. Code

Drilling Template for SERVO-

DRIVE Bracket Profile Attachment

Nylon/Steel/Aluminium

ZML.1150.02 1-285-625

Description Material Blum No. Code

Drilling Template For SERVO-

DRIVE Distance Bumpers

Nylon/Steel

ZML.1090 1-285-620

Mark cabinet profile fixing position

Drilling on the cabinet and loose cross bar

Attach drilling template to marking line Mark or drill required drilling Insert bracket profile adaptor and

secure

DRILLING TEMPLATE FOR SERVO DRIVE DISTANCE BUMPERS

• Bumper drilling template for use on an unattached or attached front and/or cabinet

• Assembly on a marking line and stop (fixed dimension 20mm)

• Suits 5mm Blum distance bumper (993.0530, 1-244-009)

• Includes 1 x depth spacer 8mm

• Includes 1 x reducing bush 8 to 5mm

Attach drilling template

to front of carcass

Perform drilling for distance

bumper

Insert Blum distance bumper (do

not glue)
