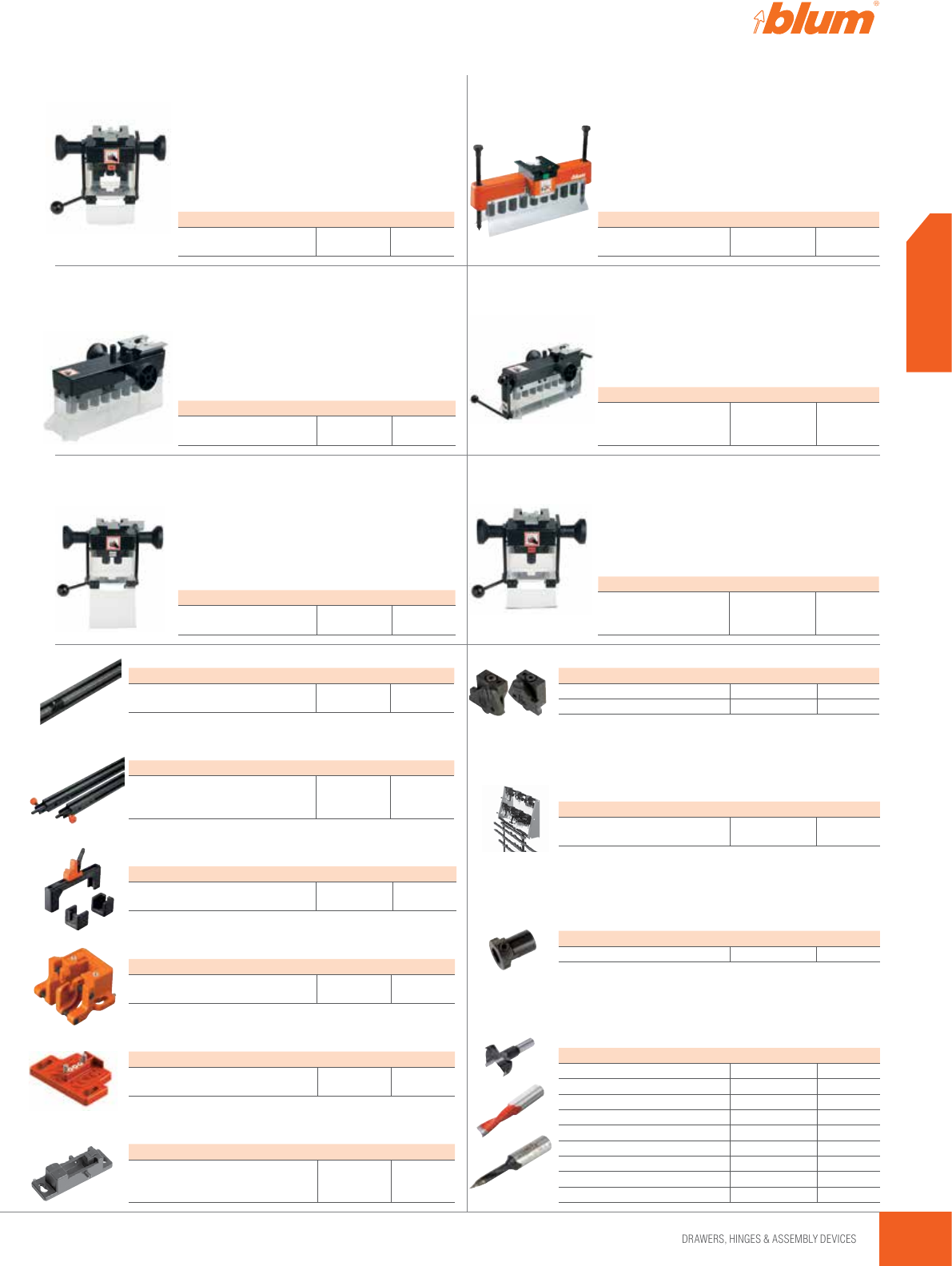

MINIPRESS PRO - DRILL HEADS & ACCESSORIES
Description
Blum No Code
MINIPRESS PRO drilling
and insertion head
MZK.2000
1-340-003
Description
Blum No Code
MINIPRESS PRO
drilling and insertion
head
MZK.2230
1-340-007
Description
Blum No Code
Basic Ruler, 1700mm calibrated
from 0mm to 850mm left and right
MZL.2000
1-340-045
Description
Blum No Code
Extension Ruler, 1700mm
calibrated from 850mm to
2550mm left or right
MZL.2090
1-340-054
Description
Blum No Code
Drilling head and ruler support
rack
MZA.2600
1-340-060
Description
Blum No Code
Quick connect chuck collar MZF.1030
1-344-081
Description Colour Code
5mm x 57mm, Right hand Black 1-345-006
5mm x 57mm, Left hand Orange 1-345-011
8mm x 57mm, Right hand Black 1-345-016
8mm x 57mm, Left hand Orange 1-345-021
10mm x 57mm, Right hand Black 1-345-026
10mm x 57mm, Left hand Orange 1-345-031
20mm x 57mm Right hand Black 1-345-040
25mm x 57mm Right hand Black 1-345-045
35mm x 57mm Right hand Black 1-345-060
Description
Blum No Code
Ruler Supports (suits MZL.2000
and MZL.2090)
MZ V.2100
1-344-061
Description
Blum No Code
Insertion ram, suitable for many
Blum hinge types
MZM.0040
1-344-025
Description
Blum No Code
Insertion ram, suitable for
METABOX Front fix brackets, M, K
and H heights
MZM.0292 .01
1-340-092
Description
Blum No Code
Insertion Ram, Inline mounting
plates 177H3100
MZM.0053
1-344-033
Description
Blum No Code
Mini ruler stop, left hand MZS.2000-L
1-344-068
Mini ruler stop, right hand MZS.2000-R
1-344-070
Description
Blum No Code
MINIPRESS PRO
drilling head
MZK.2810.01
1-340-004
Description
Blum No Code
MINIPRESS PRO drilling
and insertion head
MZK.2110 1-340-009
Description
Blum No Code
MINIPRESS PRO drilling
head
MZK.2200.01 1-340-006
Description
Blum No Code
MINIPRESS PRO
drilling and insertion
head
MZK.2100
1-340-011
DRILLING & INSERTION HEAD
• 3 spindles
• Drilling hinge pattern
• Hinge insertion (additional RAM required 1-344-025)
• 1 x Black and 2 x Orange drill bits required (sold separately)
DRILLING HEAD
• 9 spindles
• In line drilling capability
• 4 x Black and 5 x Orange drill bits required (sold separately)
DRILLING HEAD
• 8 spindles
• Drilling cabinet profiles (runners)
• AVENTOS carcass drilling
• 4 x Black and 4 x Orange drill bits required (sold separately)
DRILLING & INSERTION HEAD
• 8 spindles
• Front fix drilling and insertion (additional RAM required)
• 4 x Black and 4 x Orange drill bits required (sold separately)
DRILLING & INSERTION HEAD
• 2 spindles
• Cruciform mounting plate drilling and insertion
• 2 x Orange drill bits required (sold separately)
DRILLING & INSERTION HEAD
• 2 spindles
• In line mounting plates, connectors and dowels
• 1 x Black and 1 x Orange drill bits required (sold separately)
