Specification Sheet

The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Revised 10/06 R/A, S/A Printed in U.S.A.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2006 by Bobrick Washroom Equipment, Inc.

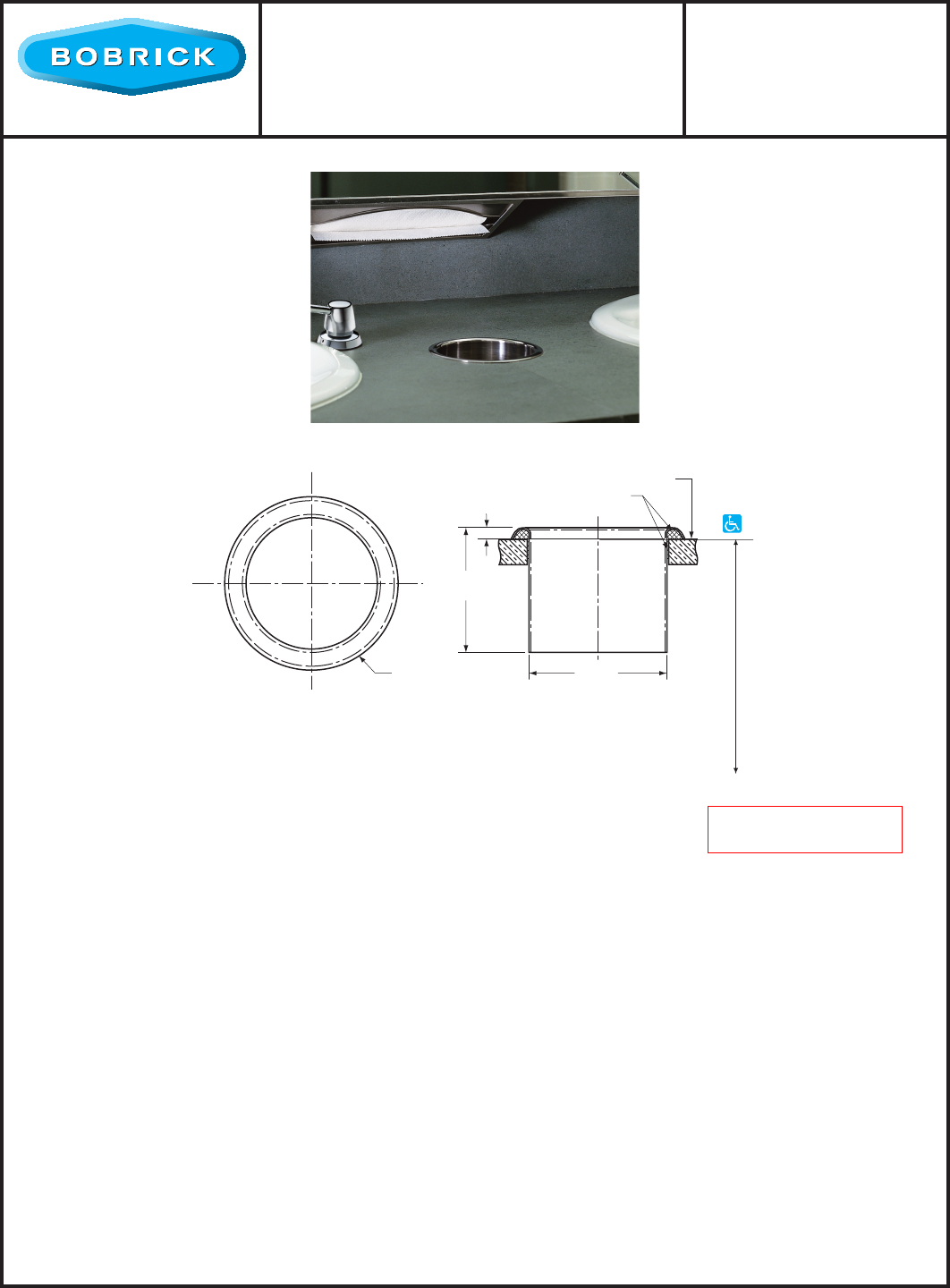

Technical Data
5''
130mm
7/16''
11mm
5-1/2''
140mm
Silicone Sealant
Countertop
6-15/16''
175mm
Dia.
Recommended Height Off Floor
For Universal / Barrier-Free Design
34''
865mm
MATERIALS:
Circular Waste Chute — Type-300, 24-gauge (0.6mm) stainless steel. Exposed surfaces have bright polished finish.
INSTALLATION:
Unit is designed for installation in 5-5/8" ± 1/16" (140 ± 1.5mm) diameter hole in any countertop. To install unit permanently in
place, cut hole in countertop. Fill in underside of waste chute lip and around portion of waste chute body which protrudes down
into mounting hole with silicone sealant (not furnished). Install unit into countertop hole. Once unit is in place, wipe off any
excess glue with a clean rag.
SPECIFICATION:
Circular waste chute for mounting in countertops shall be type-300 stainless steel with 5-7/16" (135mm) inside diameter,
rolled lip and bright polished finish on exposed surfaces. Waste chute opening shall provide access to deposit waste into waste
receptacle (not furnished) placed under the countertop.
Circular Waste Chute For Mounting In Countertops shall be Model B-529 of Bobrick Washroom Equipment, Inc.,
Clifton Park, New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company,
Scarborough Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment
Limited, United Kingdom.
Rough Countertop Opening
5-5/8" ± 1/16" (140 ± 1.5mm)
CIRCULAR WASTE CHUTE
FOR MOUNTING IN
COUNTERTOPS
B-529
