3 Operation via the browser
3.1 Livepage
After the connection is established, the Livepage is initially
displayed. It shows the live video image on the right of the
browser window. Depending on the configuration, various text
overlays may be visible on the live video image.
Other information may also be shown next to the live video
image. The items shown depend on the settings on the
LIVEPAGE Functions page.

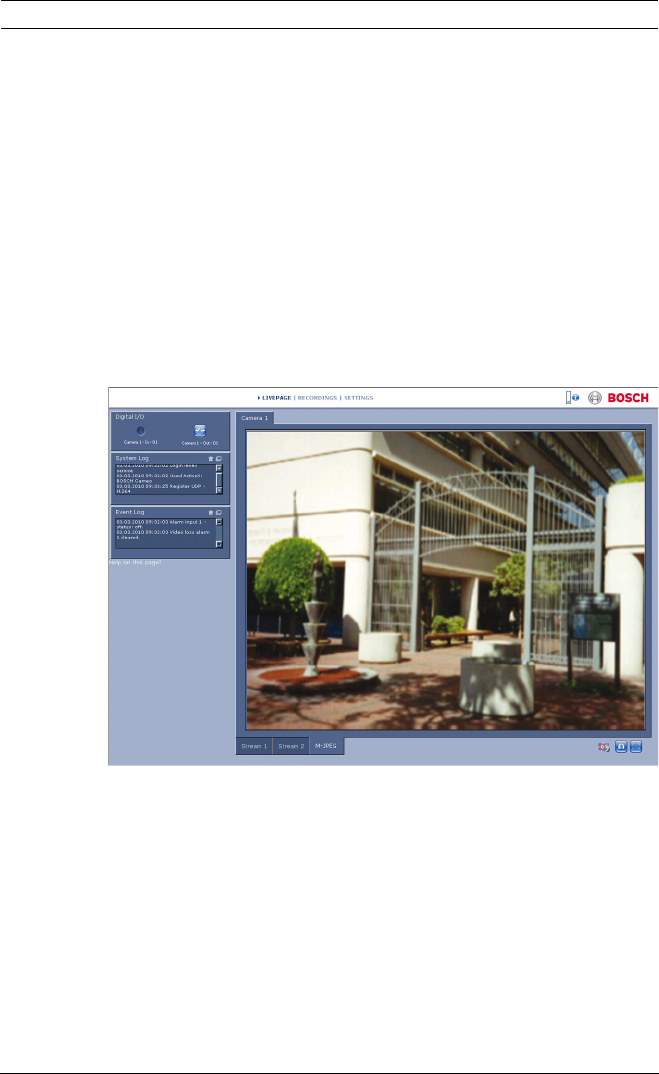

Figure 3.1 Livepage
3.1.1 Image selection
Click a tab below the video image to display a camera image
stream.
