APPENDIX A: INSTALLATION REFERENCE

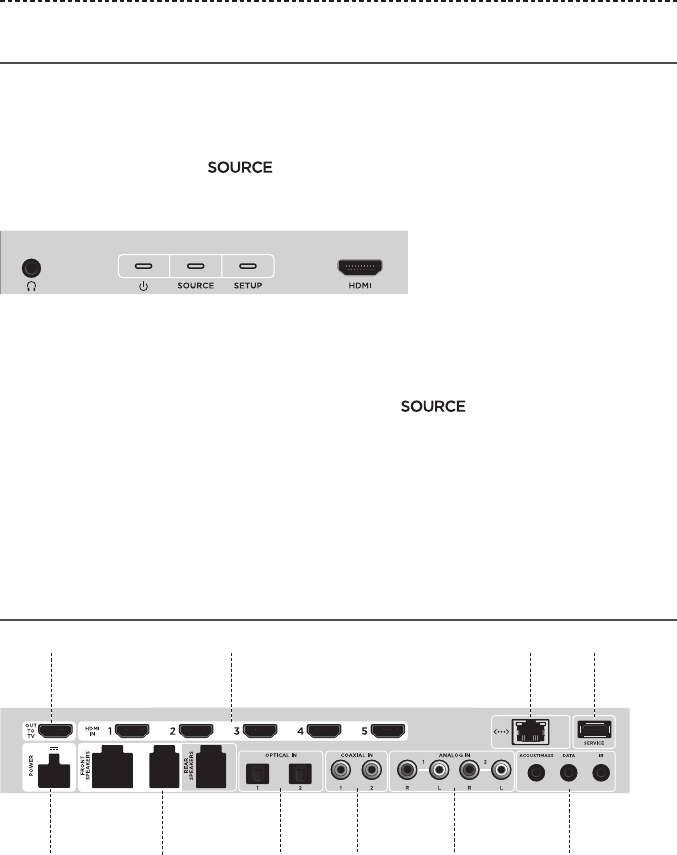

Front console panel
The front of the console has the following inputs:
• Headphones
• HDMI
™
input
These inputs appear in the menu as AUX (Front) and HDMI (Front) when a
device is connected. They can be used to connect digital cameras, video cameras, media
players and your preferred mobile device.
Front Headphones/AUX input
You can use this 3.5 mm input with your headphones, or as a quick plug-and-play audio
option with your favorite mobile device. The headphone is the default option.
If you'd like to use this input as an AUX IN, press the button on your remote
control and select Settings in the on-screen display.
Front HDMI™ input
You can use this input for devices that have an HDMI output.
Note: The Bose remote control does not control functions specific to devices that are
connected to the front HDMI™ input.
Back console panel
HDMI™ Ethernet Service
Speaker
connectors
Optical Coaxial
Analog
HDMI™ (ARC)
Power
Troubleshooting
