SYSTEM SETUP
SvenskaItalianoFrançaisEspañolDeutschDanskEnglish Nederlands
Connecting the T1 to an L1
TM
model II power stand
1. Make sure the power stand Power switch is OFF, the T1 power switch is OFF, and the T1 Master volume
control is set to 0.
2. Plug one end of the ToneMatch
TM
cable into the ToneMatch
TM
port ( ) on the T1. Plug the other end of the
ToneMatch
TM
cable into the ToneMatch
TM
port on the power stand.
3. Turn on the T1 audio engine and then turn on the L1 model II power stand.
4. Connect your instruments and adjust levels. Refer to “Optimizing input gain and output volume” on page 16.

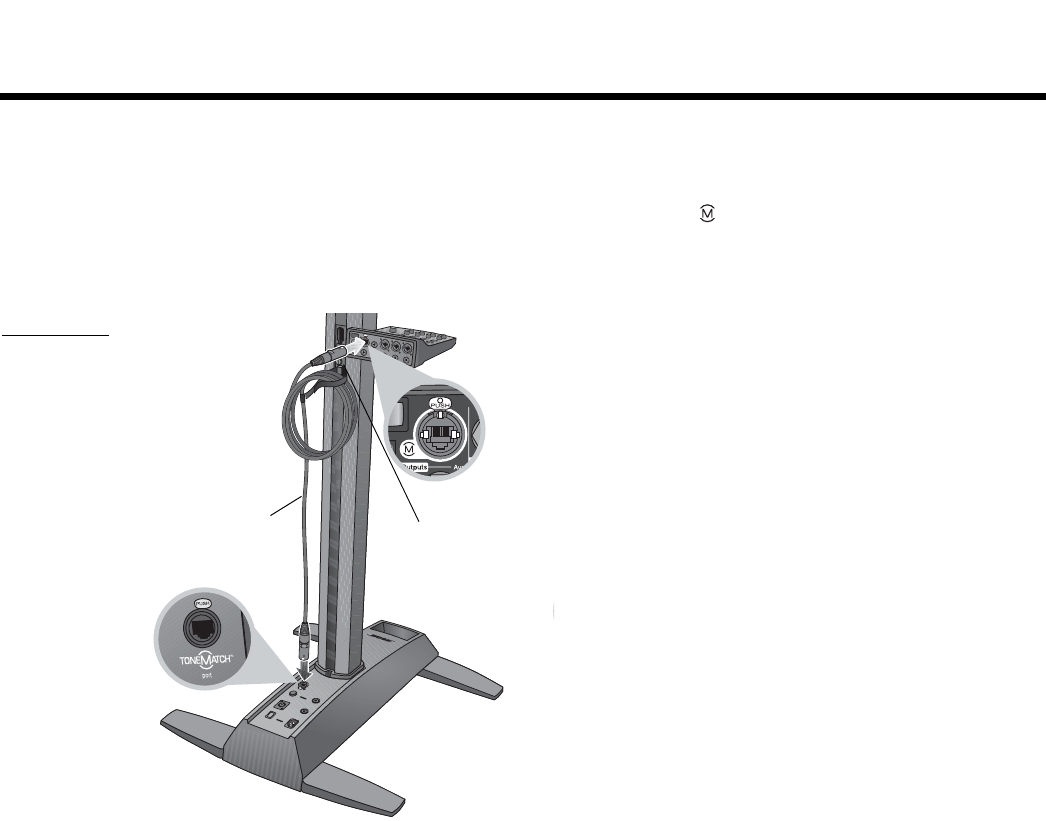

Figure 7
L1
TM
model II
connections to
a T1
Power / Fault
ToneMatch
cable
Hook-and-loop strap
hanging excess cable
on the carriage
