Page 34 of 51 Vetta Head Assembly Instructions Rev D1

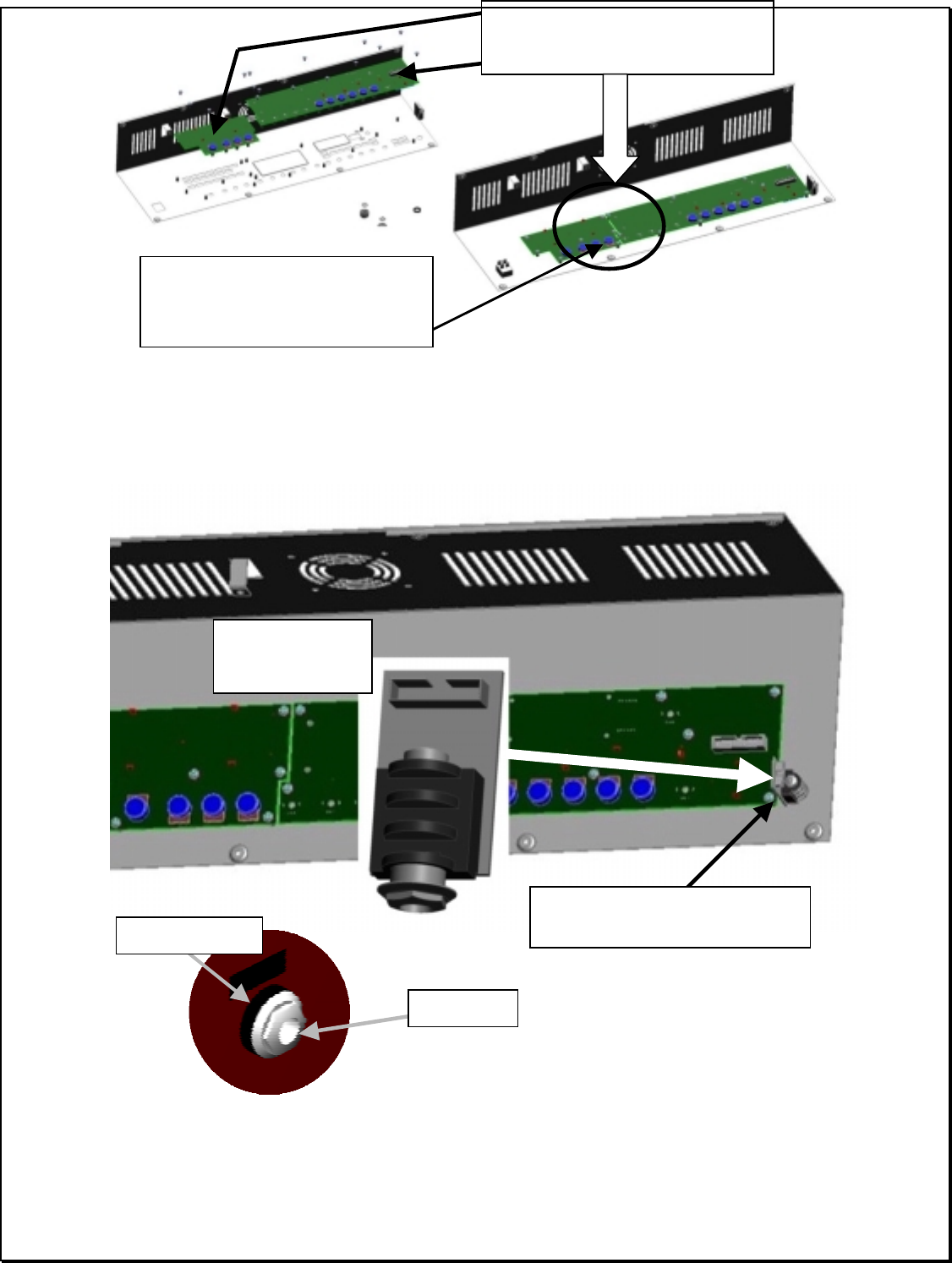

Attach the guitar input jack assembly (50-00-0099)) to the chassis cover as shown below.
Insert a spacer washer (30-15-0004) under the jack nut as shown in the figures below. Orient
the PCB of the jack assembly to face the UI-PCB.
Note: Place spacer
washer (30-15-0004) on
panel front, then secure
jack with nut.
50-00-0099
positioned here
Spacer washer
Jack Nut
Position of the surface mount
connector and header on the UI
panel
CONNECT LEFT AND RIGHT
BOARDS AS SHOWN
NOTE ORIENTATION OF
PCB FACES UI-PCB
