Page 42 of 51 Vetta Head Assembly Instructions Rev D1
Attach chassis cover to base using 8 #6-32 captive star washer screws (30-00-0607).
4 are used at the top of the assembly ( MAKE SURE THAT THE 2 OUTER SCREWS GO
THROUGH THE ENDS OF THE 2 BRACES)
Other 4 are used on the front (see below) AGAIN, MAKE SURE THAT THE 2 OUTER

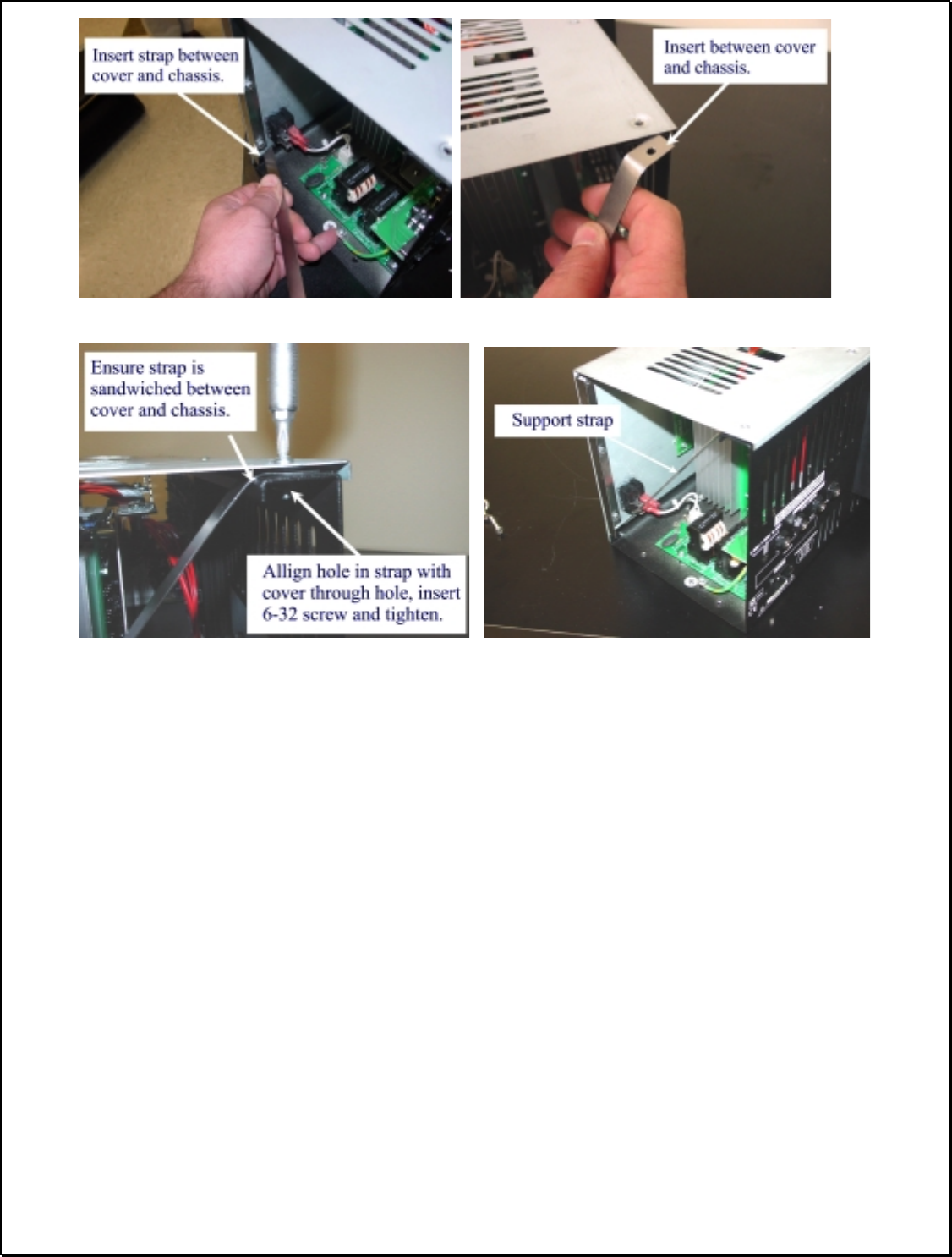

SCREWS GO THROUGH THE ENDS OF THE 2 BRACES. Finish the subassembly by
securing the power supply frame as described at the bottom of the page. Tighten to a torque of
6-8 in/lbs.
