Page 44 of 51 Vetta Head Assembly Instructions Rev D1
Completing the Unit
ITEM QTY LINE6 PART NO DESCRIPTION
1 1 N/A (REF
ONLY)
ASSY, CHASSIS AND COVER
2 1 30-51-0152 CABINET, Vetta HD
3 1 30-51-0074 HANDLE BRACKET TOP
3 1 30-51-0075 HANDLE BRACKET BOTTOM
4 1 30-60-0002 LOGO, OVAL HANDLE BRCKT
5 2 30-00-1032 SCREW, 10-32 X 1.25 OVAL HD PH, NICKEL
6 1 30-00-0019 SCREW, #6-32 x 1/2, SELF TAPP, FLAT HD, PHIL
7 2 30-00-0023 SCR, #10, OVAL HEAD PHILLIPS, ZN
8 1 30-57-0580 HANDLE STRAP
9 4 30-00-1124 #10-32 x 1.5” OVAL HD PH, BLK
10 4 30-03-0011 WASHER, FINISHING, #10, BL OXIDE
11 2(pls) 30-63-0010 INSULATION, FOAM STRIP

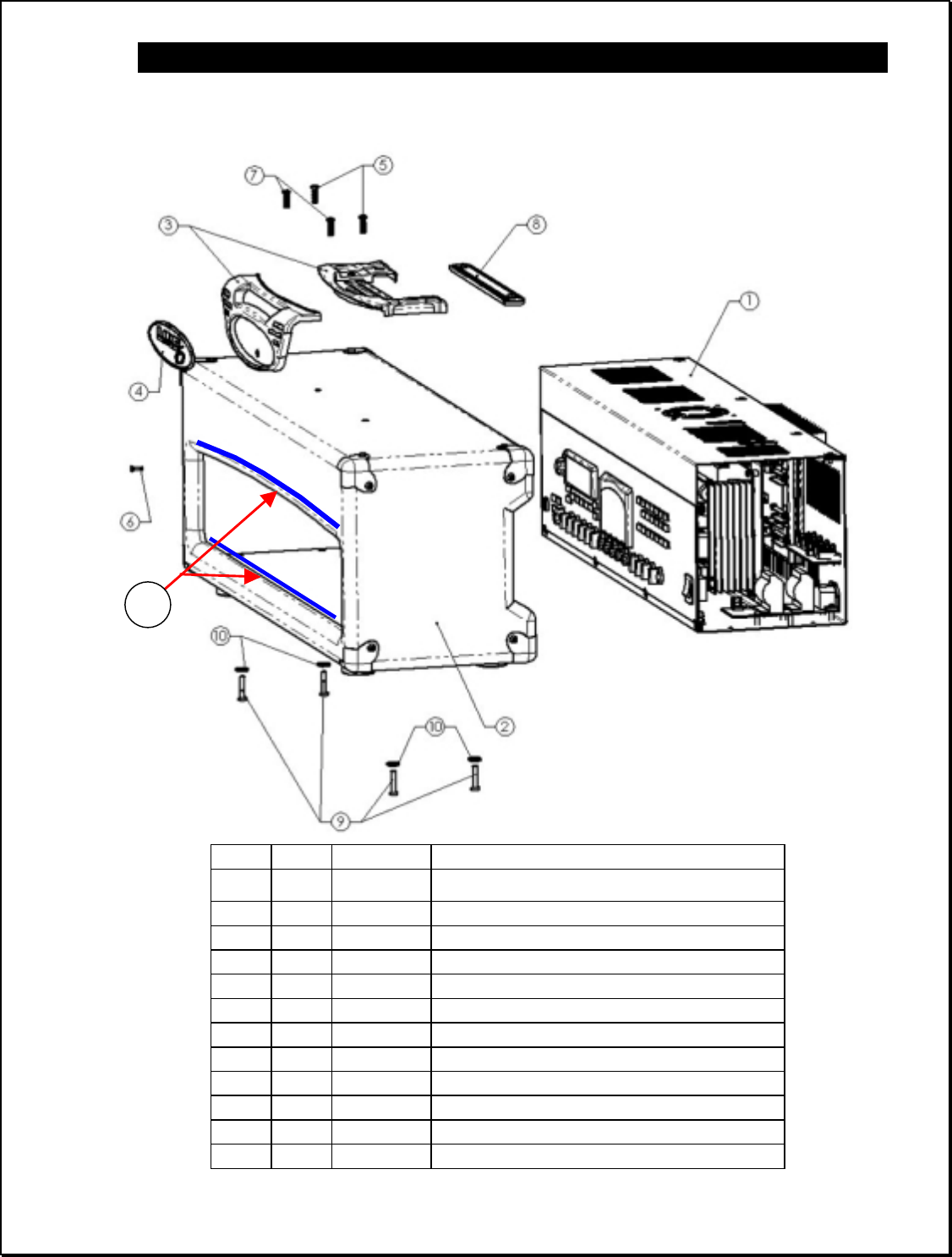

Refer to this graphic
throughout the rest of
this section for aid in
locating the parts
discussed.
11
