Page 47 of 51 Vetta Head Assembly Instructions Rev D1
d) Place the Bezel Lenses
The bezel lenses must be placed next. The LCD bezels each have a smoked lens that attaches
with pressure sensitive adhesive. Gloves must be worn at this stage. Remove the adhesive
protection film. Carefully center the lens, and firmly press it into place.

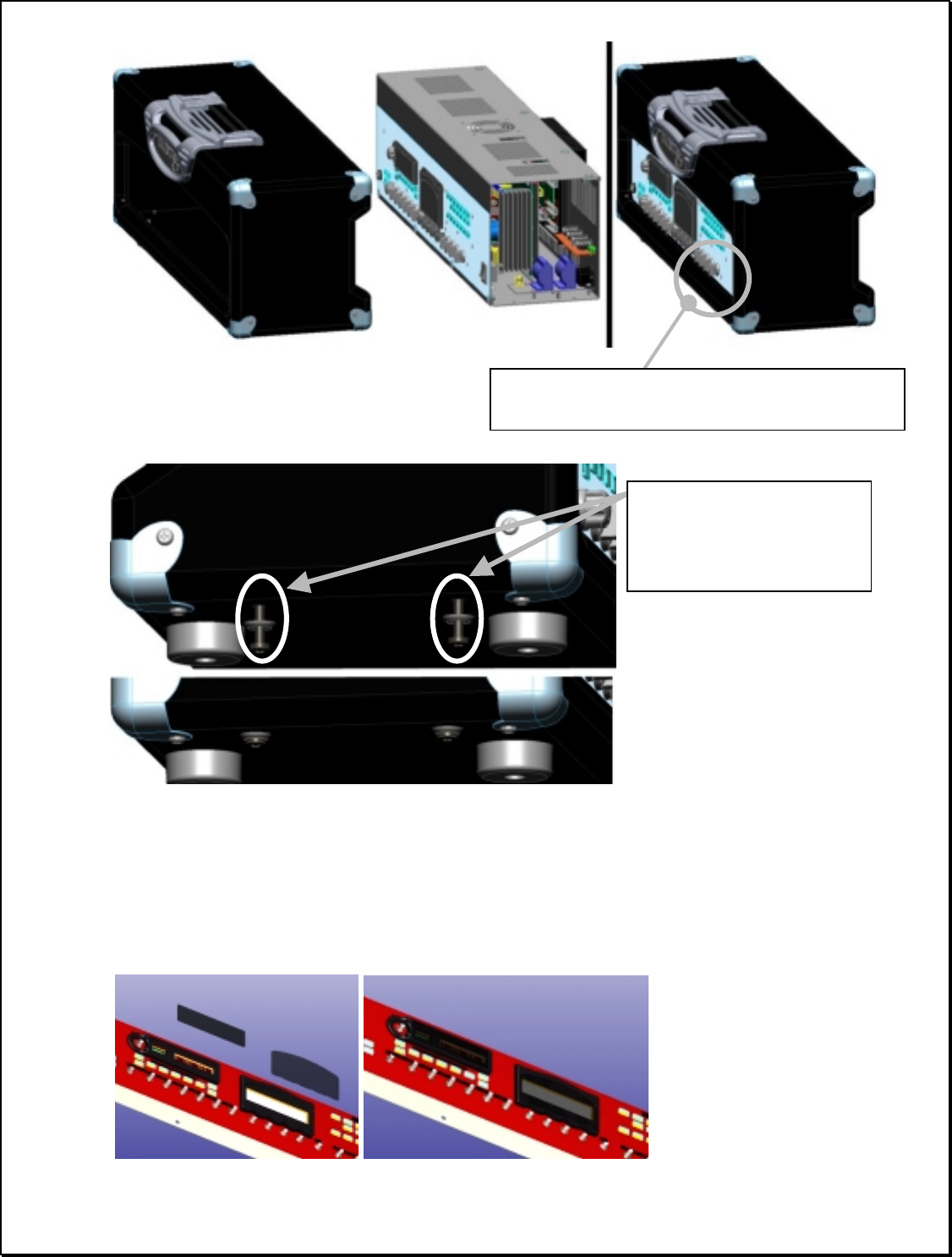

Secure the chassis using 4
#10 (30-00-1124) screws
mounted with 4 #10 finish
washers (30-03-0011).
The chassis will sit directly against back of the
cabinet front face when correctly installed.
Make sure that the
lenses are centered in
the bezels, that they are
undamaged, and that
they do not have any
fingerprints on them.
