Page 3 of 51 Vetta Head Assembly Instructions Rev D1
Cabinet Assembly
ITEM QTY LINE6 PART NO DESCRIPTION
1 1 30-33-0002 CABINET, Vetta HD
2 8 30-30-0001 CORNER PROTECTOR STEEL PWD COAT MATTE SIL
3 4 30-75-0008 RUBBER FOOT, 1.5 x .75, BLACK
4 16 30-00-9812 SCR, #8, TRUSS HD, PH, ZN
5 4 30-00-6839 SCR, #10 X 1.25 , WOOD (RUBBER FOOT)
6 2 30-00-0017 NUT, TEE, 10-32
7 2 30-63-0010 INSULATING FOAM STRIP

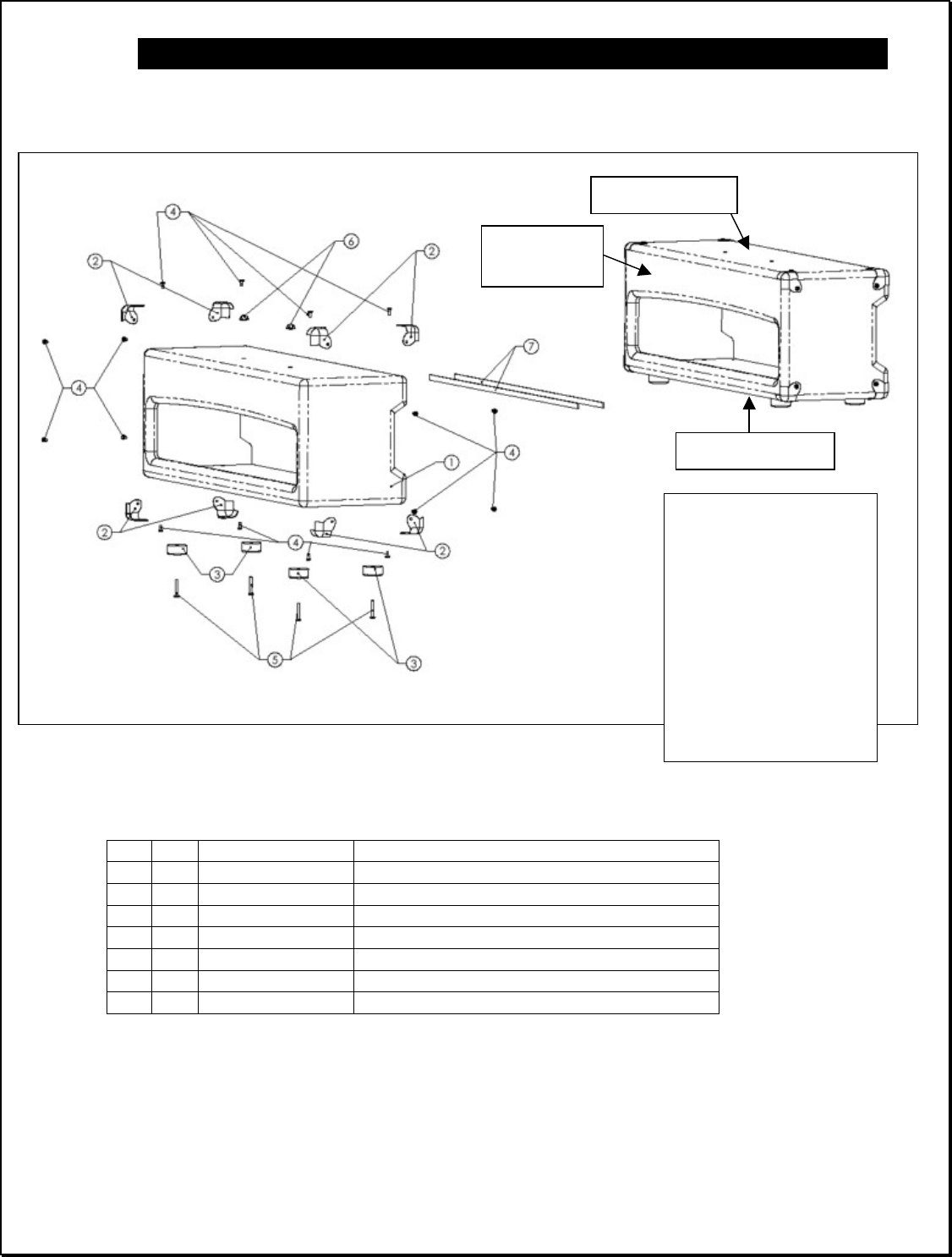

Refer to this graphic throughout the following
section for aid in locating the parts discussed.
Cabinet base
The first step in
assembling the unit is
to assemble the
cabinet. In some
cases, the vendor of
the cabinet may have
done this. If the
cabinet is fully pre-
assembled, this step
may be skipped.
Cabinet Base
Cabinet
Front Face
Cabinet Top
