Page 6 of 51 Vetta Head Assembly Instructions Rev D1

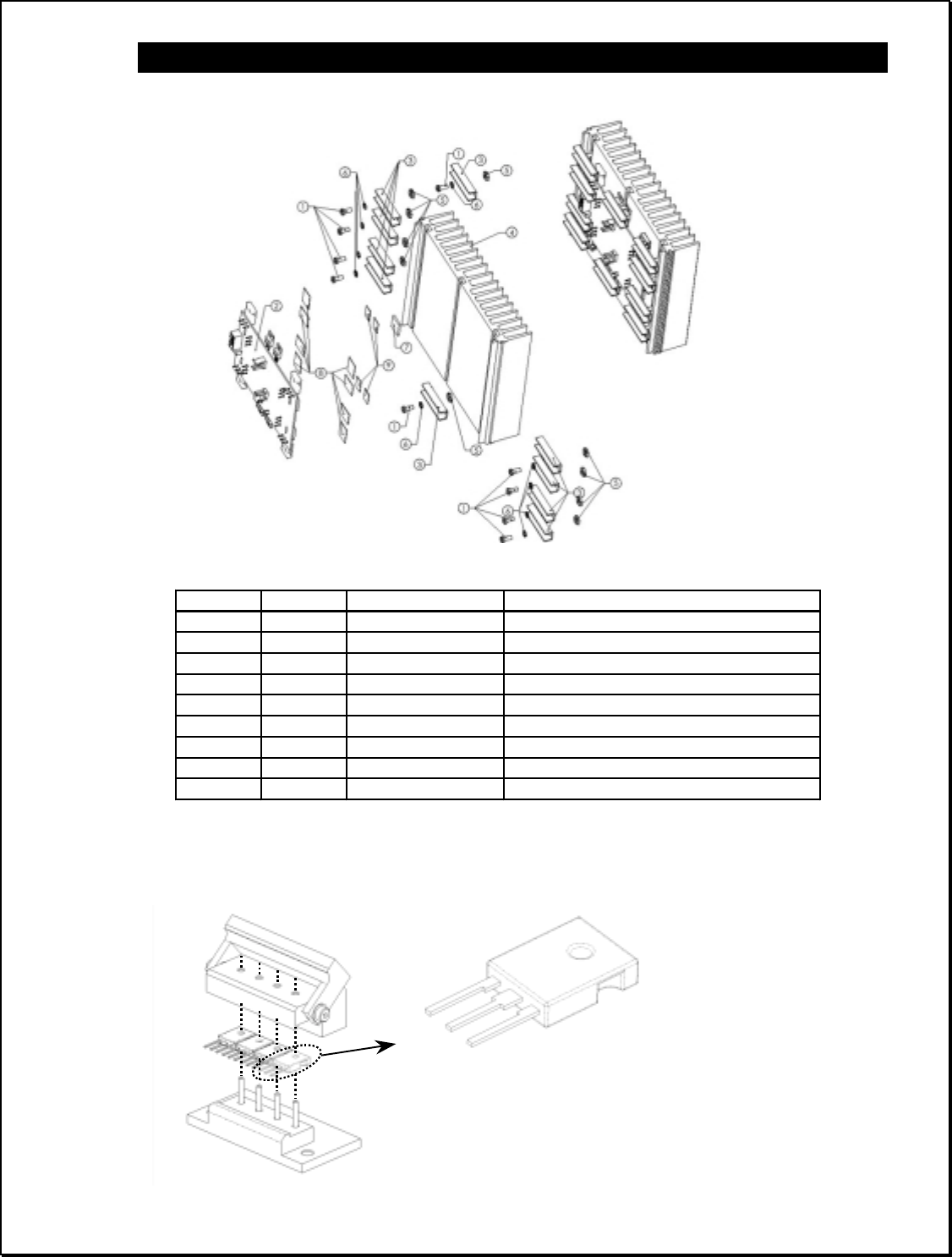

Power Amp Assembly
ITEM QTY LINE6 PART NO DESCRIPTION
1 10 30-00-0010 SCREW, 8-32, x562 SCH CAP SCR
2 1 50-00-0101 PCBA AMP 2x100 WATT HEAD AX3
3 10 30-51-0073 CLAMP, DEVICE,
4 1 30-51-0059-2 HEAT SINK
5 10 30-06-0007 NUT, HEX, 8-32, .344
6 12 30-03-0002 WASHER, .293 x .174 x. 040
7 1 30-63-5050 GAP-PAD VO-SOFT .125"THK x.5 x.5
8 8 30-63-4001 THERMAL PAD, TO - 247
9 4 30-63-4005 THERMAL PAD, TO-220
a) Bend Power Components
Bend Power Component leads using the Line 6 supplied Bend Tool as shown.
Do not trim the
leads
.
Power Transistor (4)
P/N
09-06-0251
Position Power
Component with
marking side DOWN
